Auxiliary Cabin Heater Housing: Testing and Inspection

AIR CONDITIONING: PTC HEATER ASSEMBLY: INSPECTION

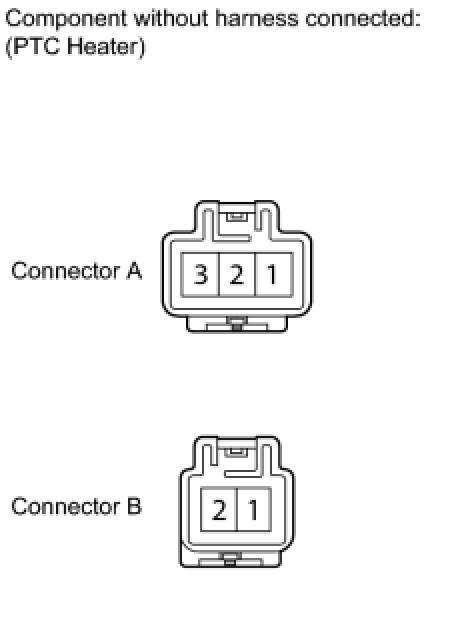

1. INSPECT PTC HEATER ASSEMBLY

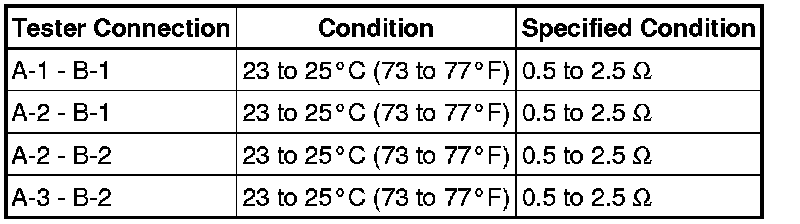

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the PTC heater assembly.
