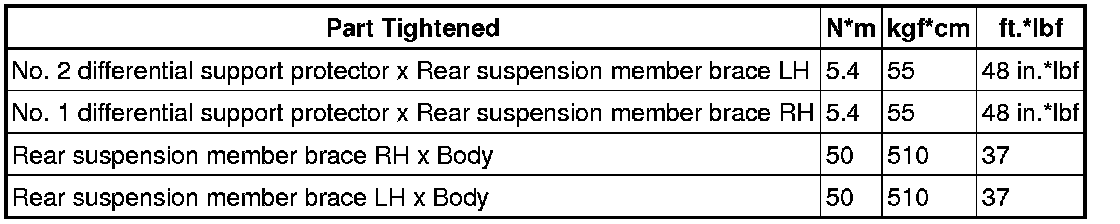

SERVICE SPECIFICATIONS: DRIVE SHAFT: TORQUE SPECIFICATIONS
Rear Drive Shaft Assembly
Front Drive Shaft Assembly
