Home >> Mazda Truck >> 1984 >> B Series Truck L4-2000 1970cc >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition System >> Ignition Timing

Ignition Timing

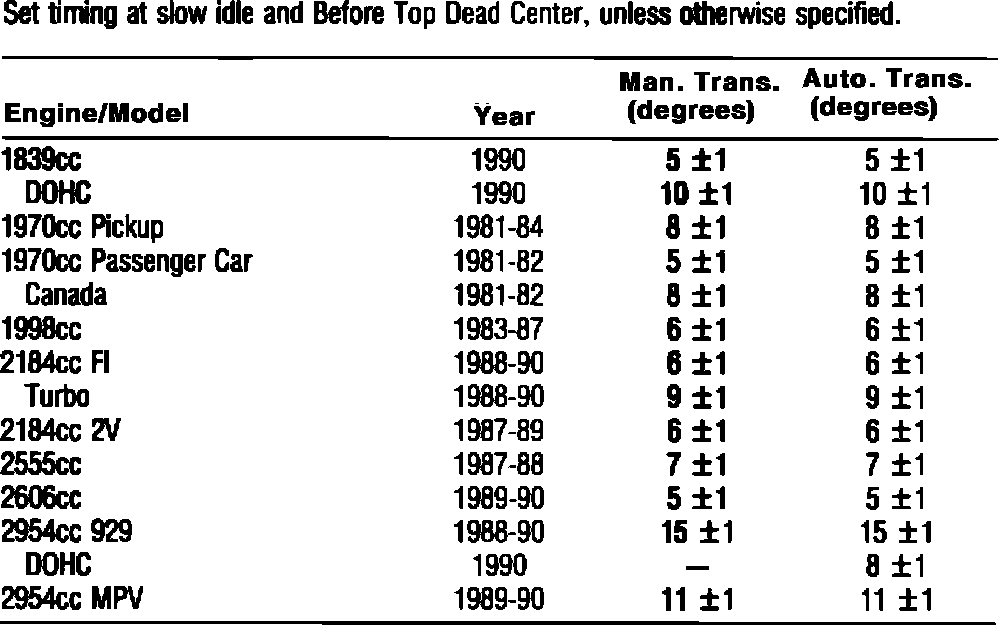

Fig. 6 Timing Specifications:
