Mazda Truck
>>
1984
>>
B Series Truck L4-2000 1970cc
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition System
>>
Pick-Up Coil, Ignition
Pick-Up Coil, Ignition

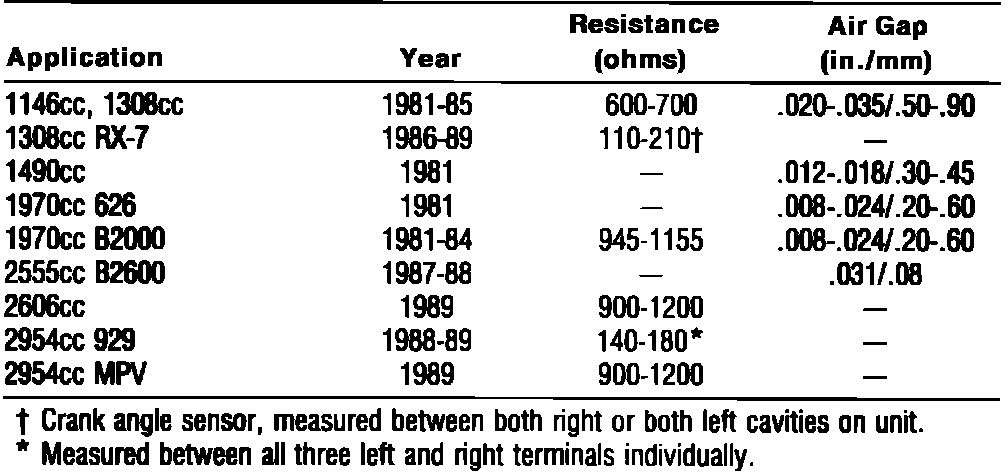

Fig. 3 Distributor Pickup Specifications:
