Home >> Mazda Truck >> 1984 >> B Series Truck L4-2000 1970cc >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Firing Order

Firing Order

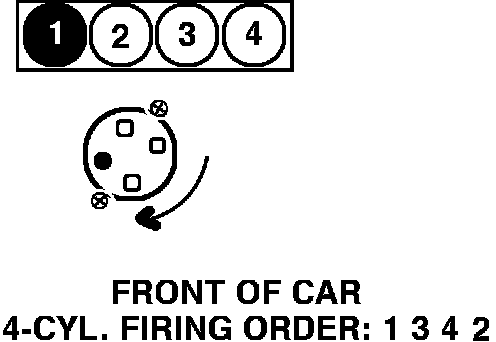

Fig. 8 Firing Order:

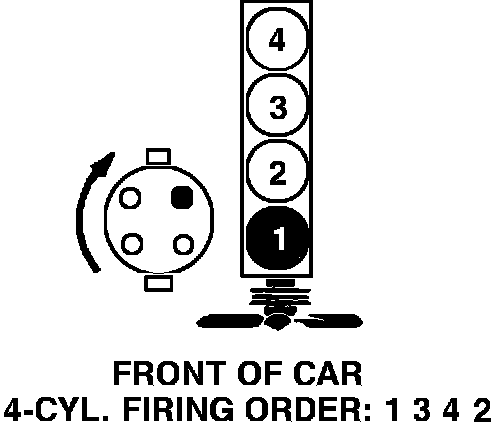

Fig. 9 Firing Order:
