Home >> Mazda Truck >> 1984 >> B Series Truck L4-2209cc DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram

System Diagram

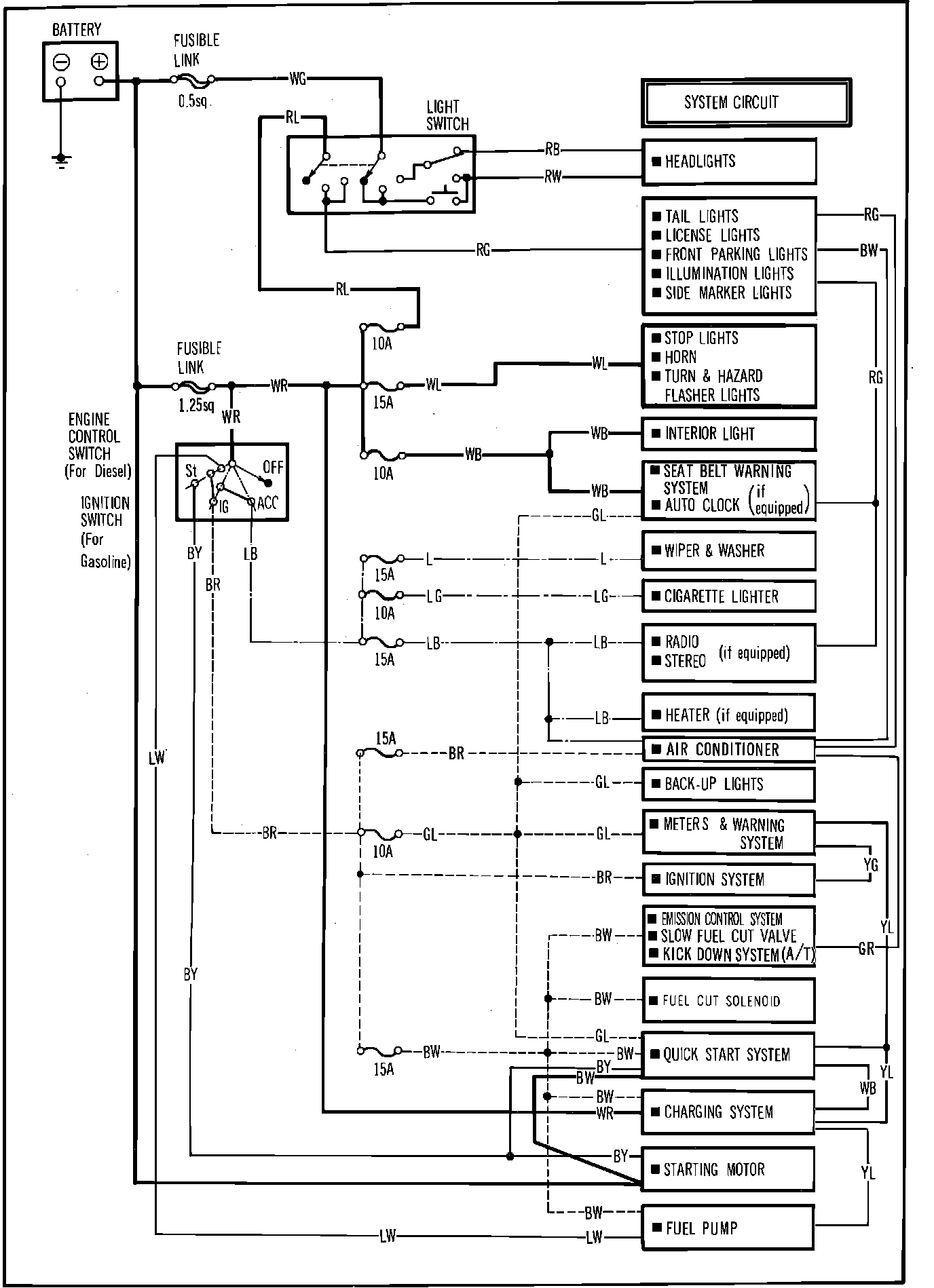

Fig. 66 Power Distribution Wiring Circuit:
