Starter Relay: Locations

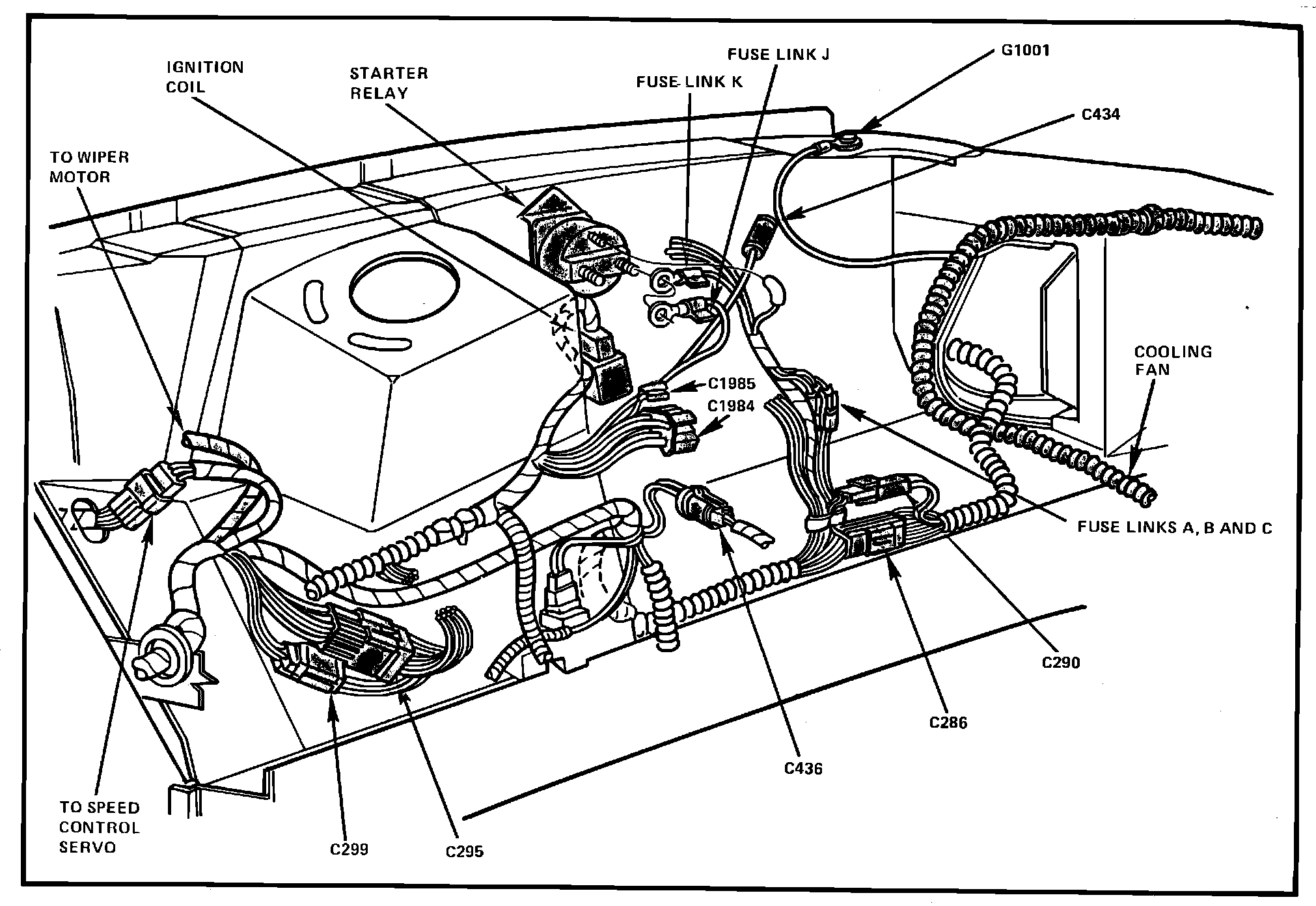

LH Fender Apron.:




At Upper LH Fender Apron

Applicable to: 1984 4-140/2.3L Engine

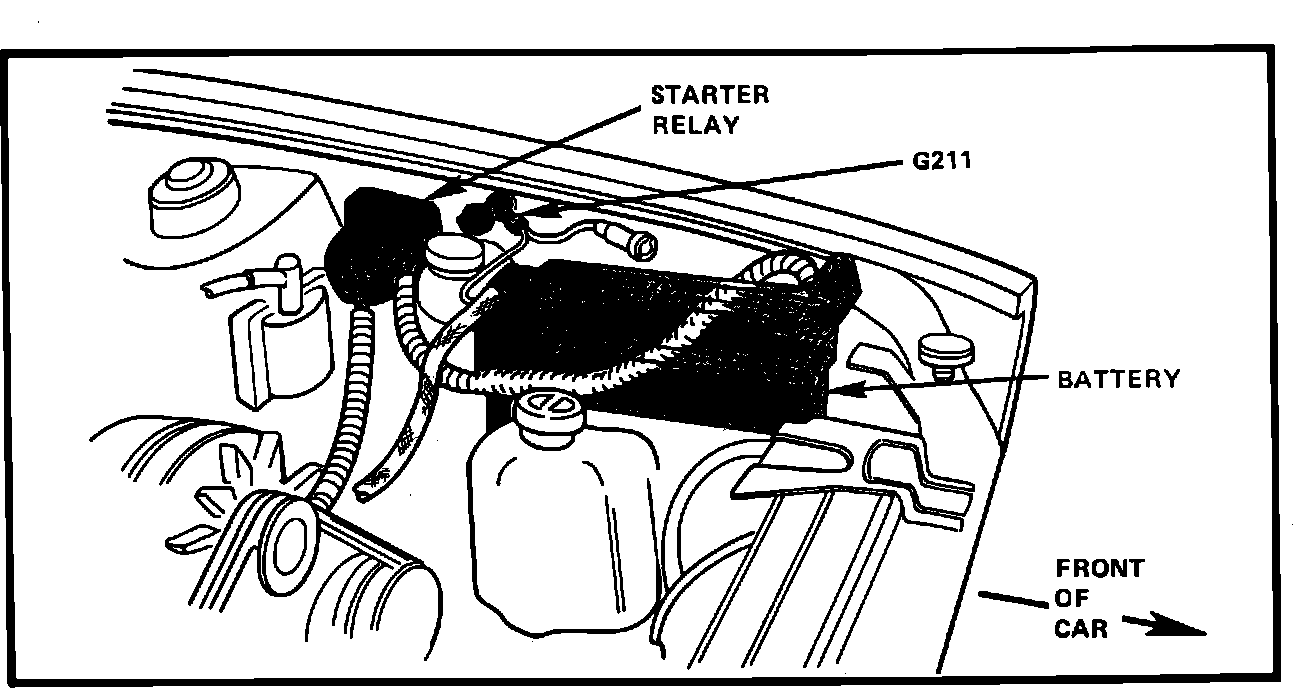

LH Front Fender Apron.:




At Upper LH Fender Apron

Applicable to: 1984-85 4-140/2.3L Engine
