Drive Belt Tensioner: Service and Repair

Replacing Alternator Drive Belt Tensioner
Remove alternator drive belt.

Remove under guard. Remove road wheel.

Remove wheel arch liner.

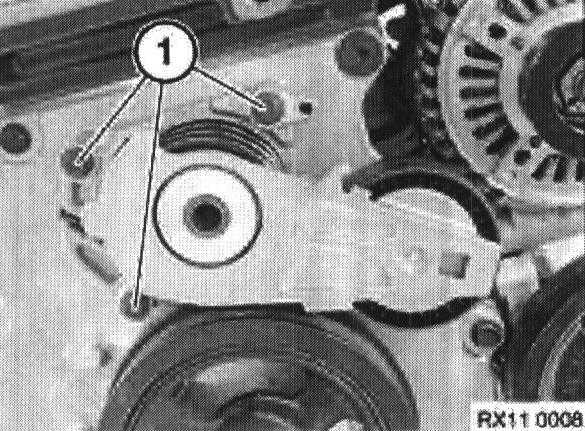

Remove 3 retaining bolts from tensioner (1).
Belt tensioner to crankcase
M6 9Nm.
