Removing and Installing Rear Left or Right Side Trim Panel

51 43 002 Removing And Installing Rear Left Or Right Side Trim Panel

Necessary preliminary tasks:
- Remove rear seat
- Remove backrest for rear seat
- Remove CD changer
- Remove top trim from tail panel
- Remove luggage compartment floor trim panel
- Remove luggage compartment light

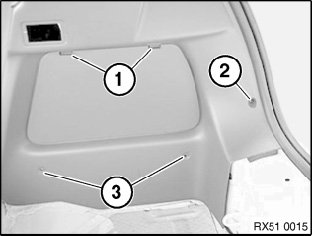

Unlock catches (1) and remove cover.
Release screw (2).
Version without CD changer:
Release screws (3).







Lever out trim on striker for backrest lock.
Unclip trim panel and remove.

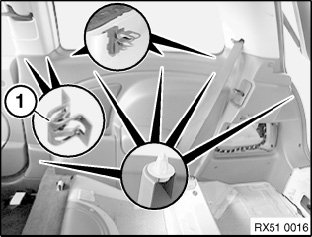

Remove and discard retainers (1).

Installation:
If necessary, replace faulty clips and retainers.
Fit seal for door and rear lids correctly.
