Removing and Installing/Replacing A Rear Ultrasonic Transducer




66 20 540 - Removing and installing/replacing a rear ultrasonic transducer





Necessary preliminary tasks:
- Remove rear bumper trim

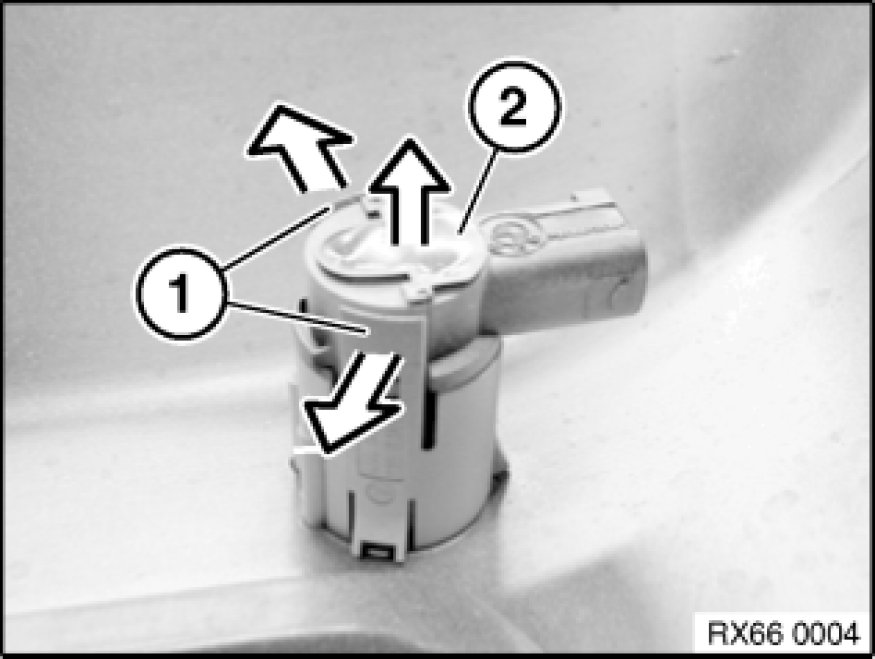

Expand catches (1) and remove ultrasonic transducer (2) in direction of arrow.
