Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X18180 Adapter 616031, Storage Location D107
>>
N22 CD Changer (Stereo System)
N22 CD Changer (Stereo System)
Connector View
X18180 Component connector (3-pin, black)

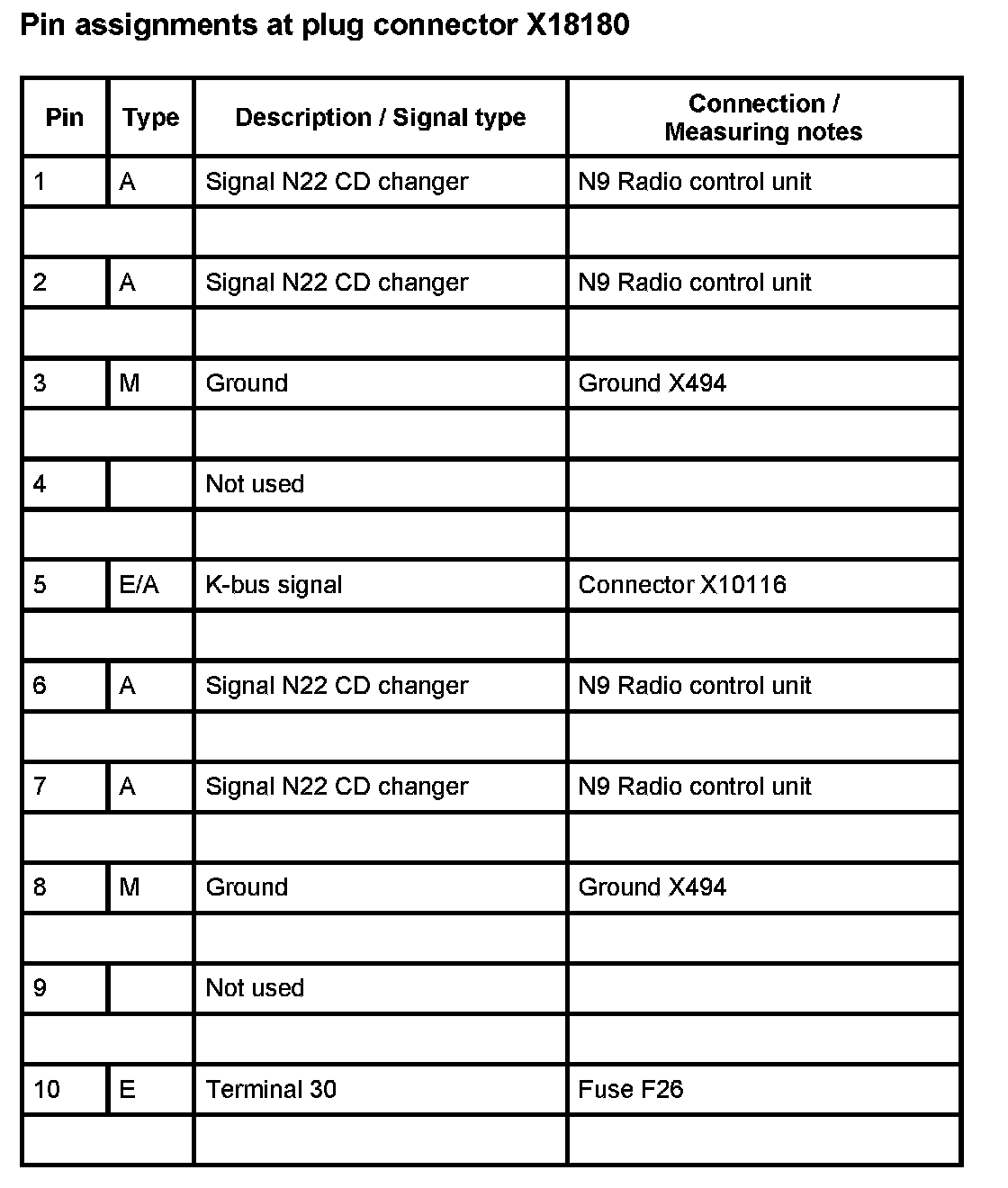

Pin Assignment
X18180:
