X33 No Adapter
X33 No Adapter
Connector View
X33 Component connector (11-pin, black)

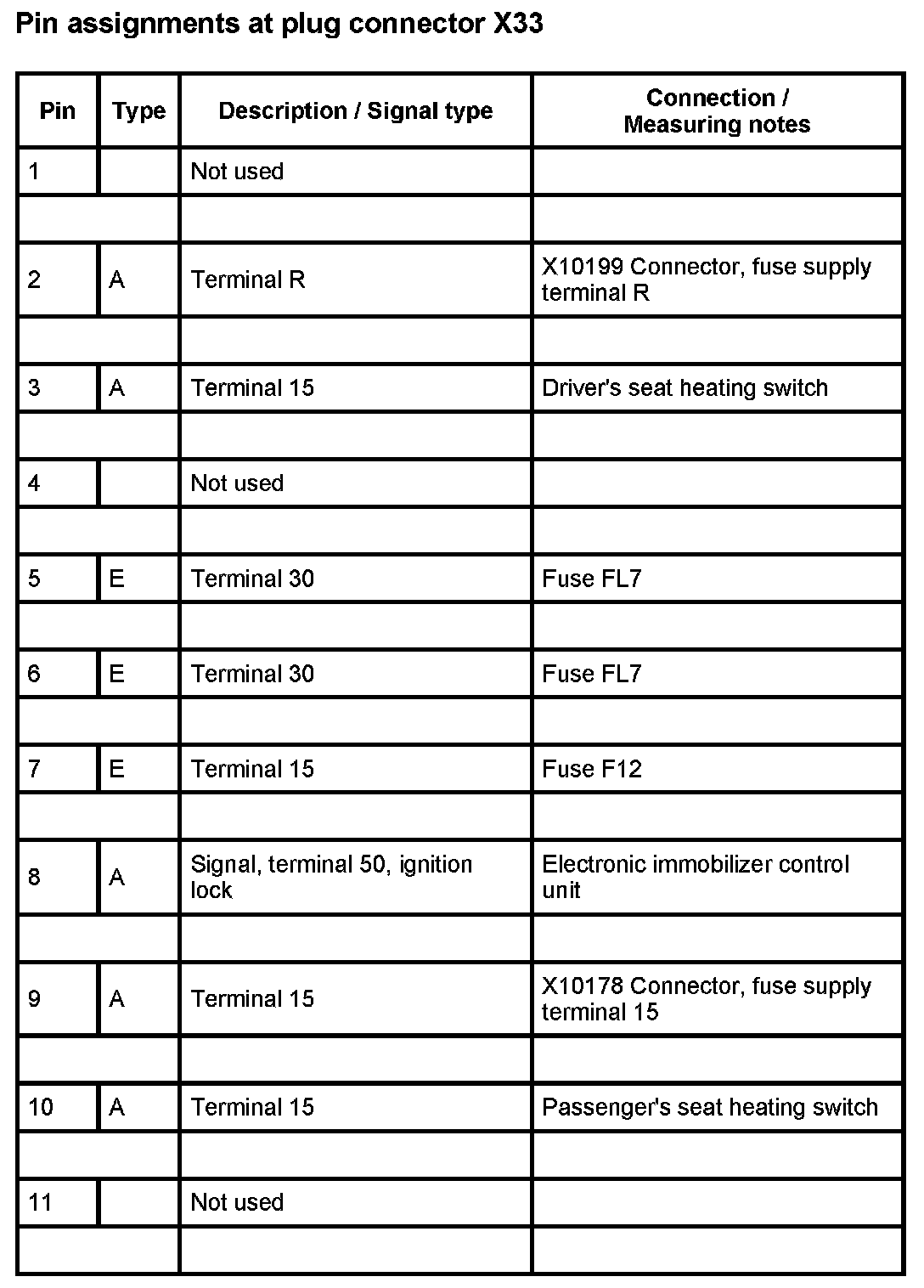

Pin Assignment
S2
Ignition switch
X33:
