X742 Adapter 613240, Storage Location M210
X742 Adapter 613240, Storage Location M210
Connector View
X742 Component connector (8-pin, black)

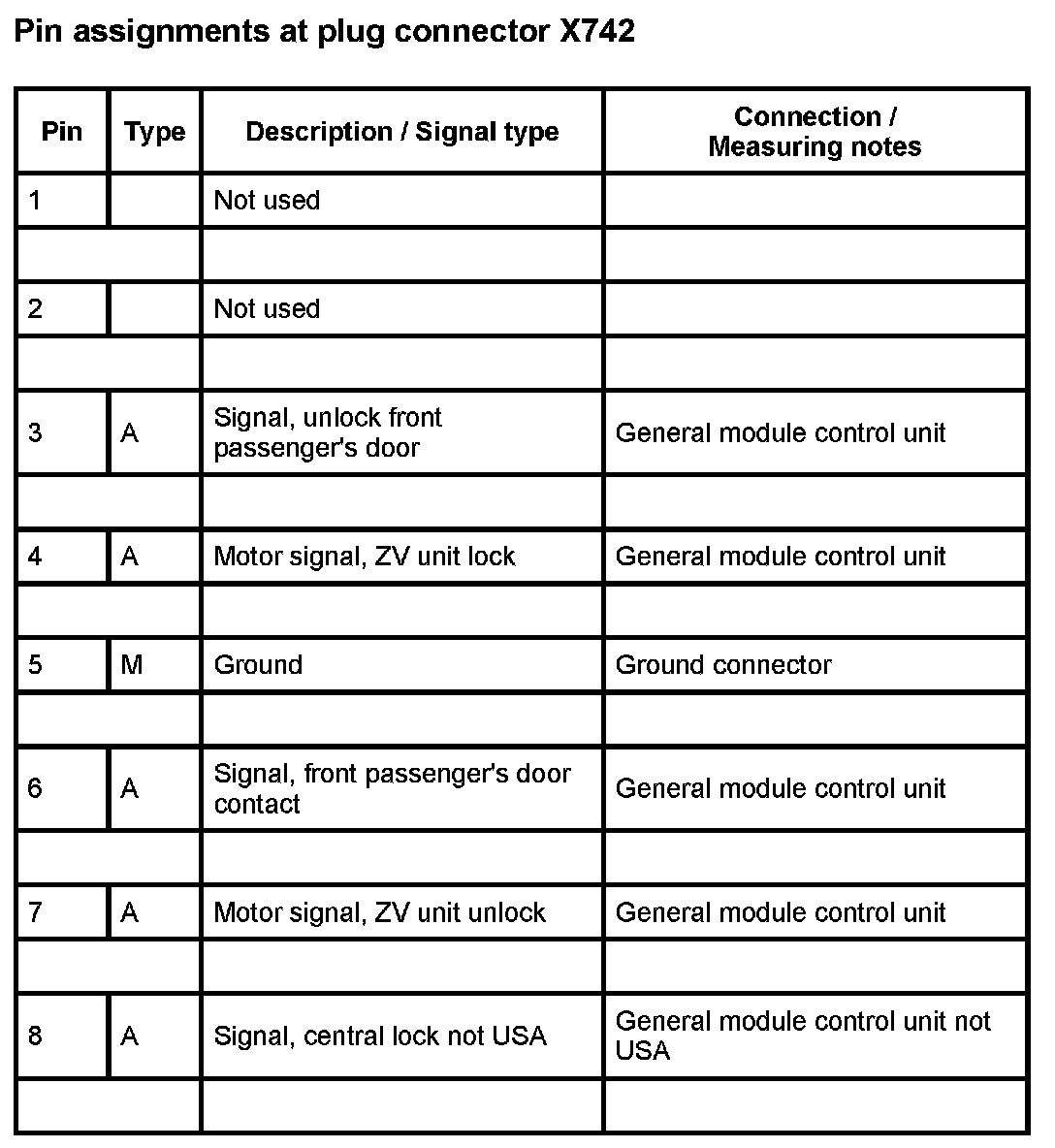

Pin Assignment
X742:
