Home
>>
Mini
>>
2006
>>
Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X7
>>
X783 No Adapter
>>
I01002 Volute Spring (MFL Multifunction Steering Wheel II As of 01/05)
I01002 Volute Spring (MFL Multifunction Steering Wheel II As of 01/05)
Connector View
X783 Component connector (4-pin, black)

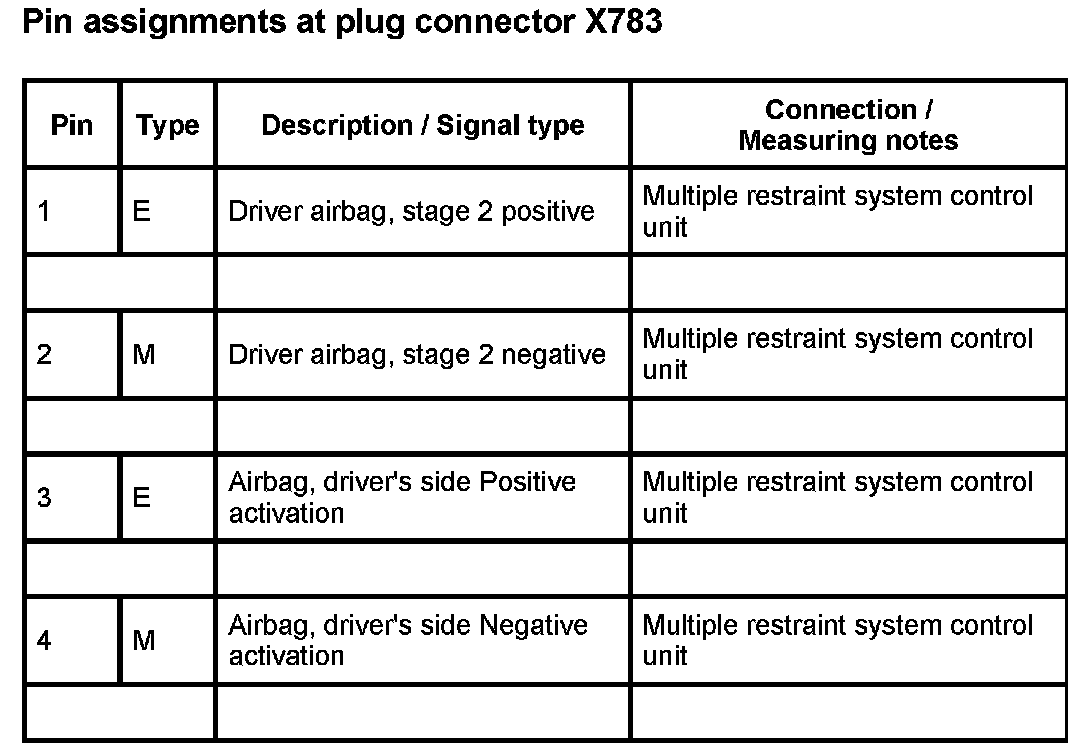

Pin Assignment
X783:
