Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Radio (RAD Radio)
>>
Hifi System (DSP Digital Sound Processor)
>>

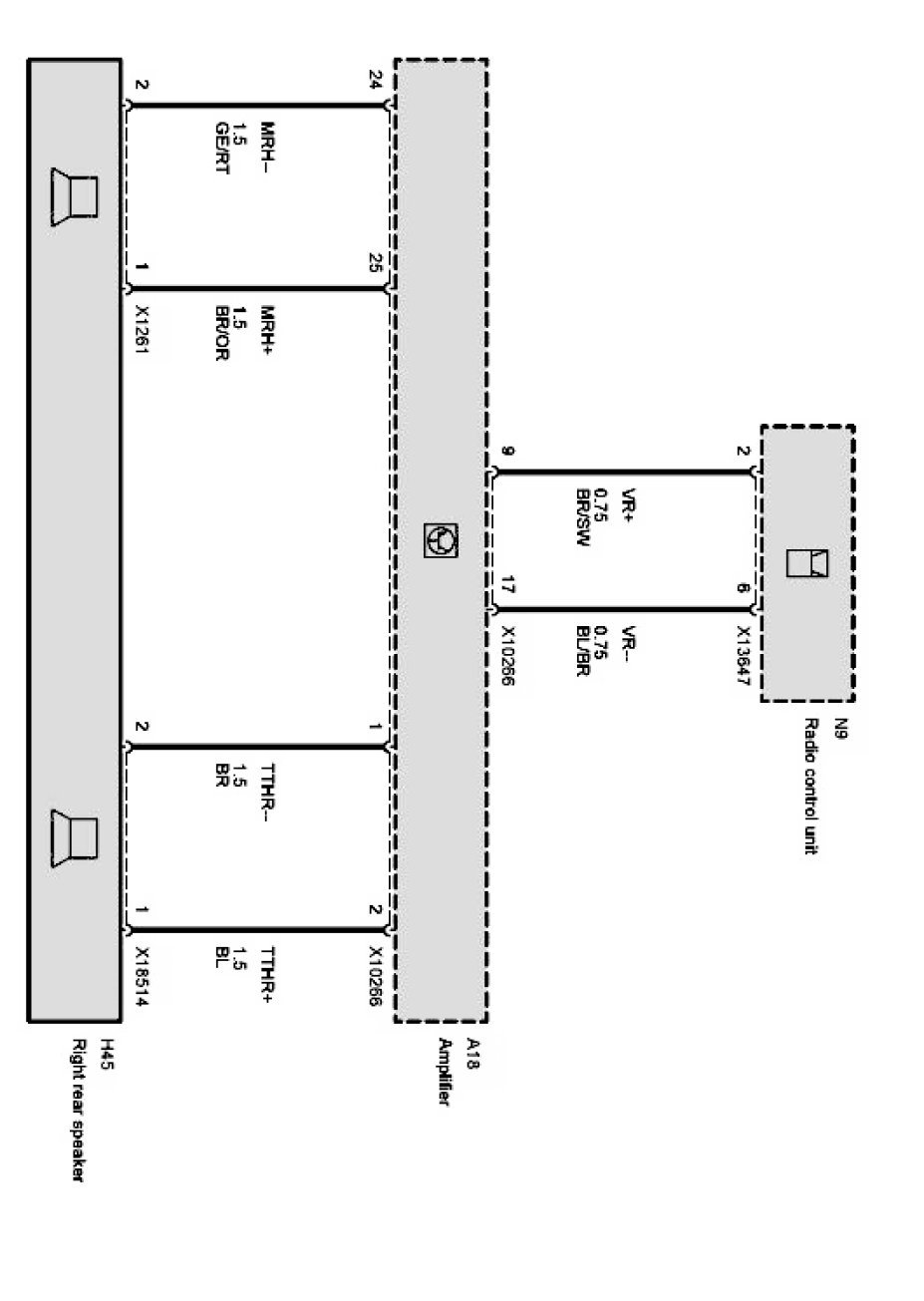

Speaker, Mid-Range Speaker/Woofer, Rear Right
Speaker, Mid-Range Speaker/Woofer, Rear Right
Right rear speaker:
