Diesel Data
: Automotive Repair
Home
>>
Mini
>>
2006
>>
Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Television (VID Video Module)
>>
On-Board Monitor
On-Board Monitor

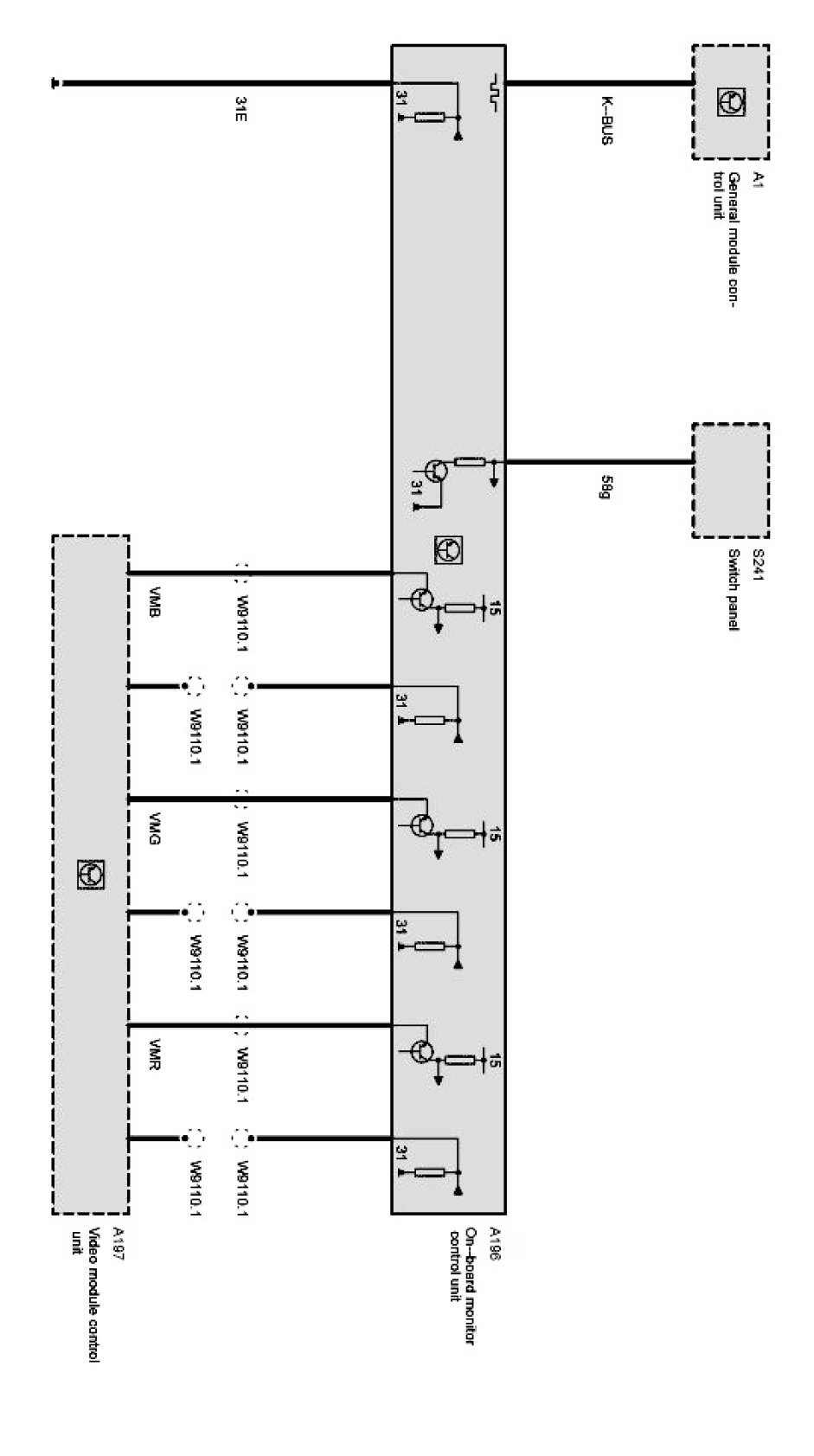

On-board monitor:
