Blower Switch (Without IHKA Automatic Heating/Air Conditioning System)
>>
Blower Control (IHS Integrated Heating Control As of 03/03)
Blower Control (IHS Integrated Heating Control As of 03/03)

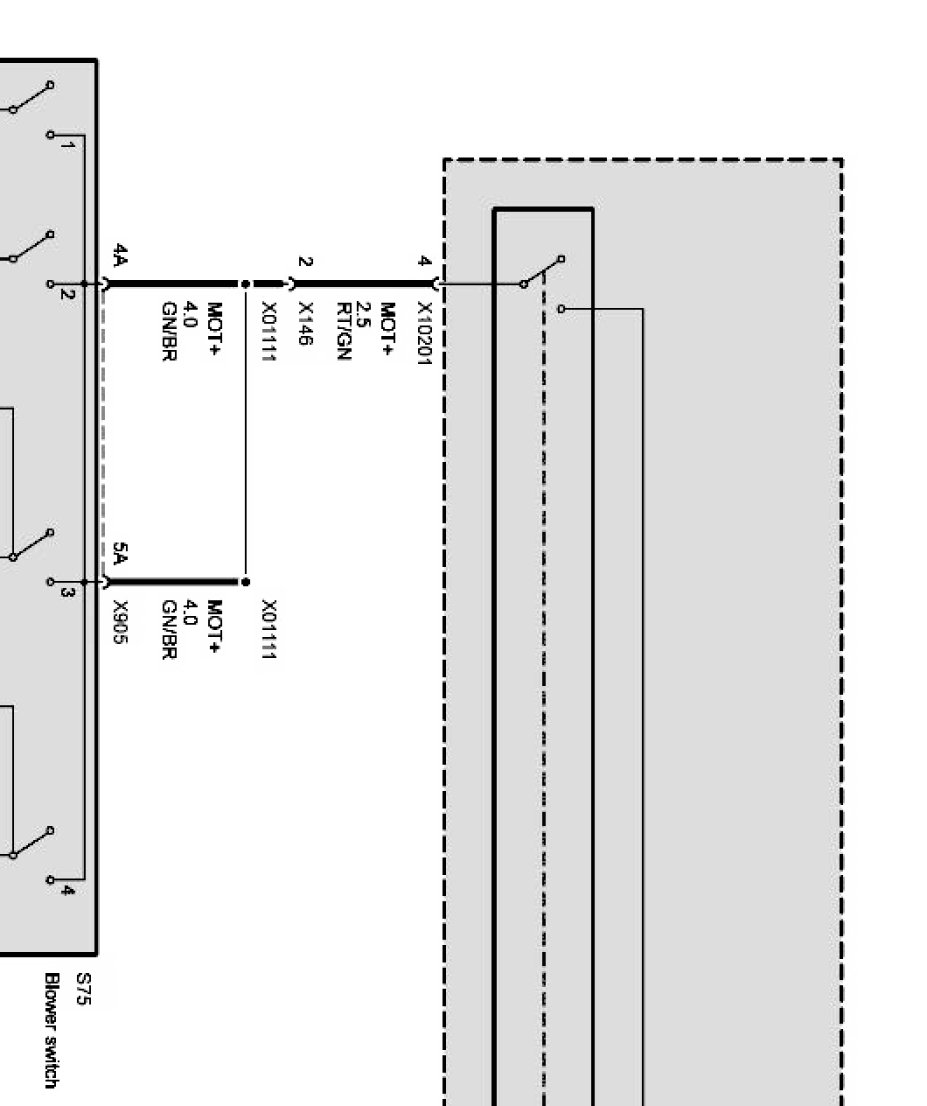

Blower control Part 1:

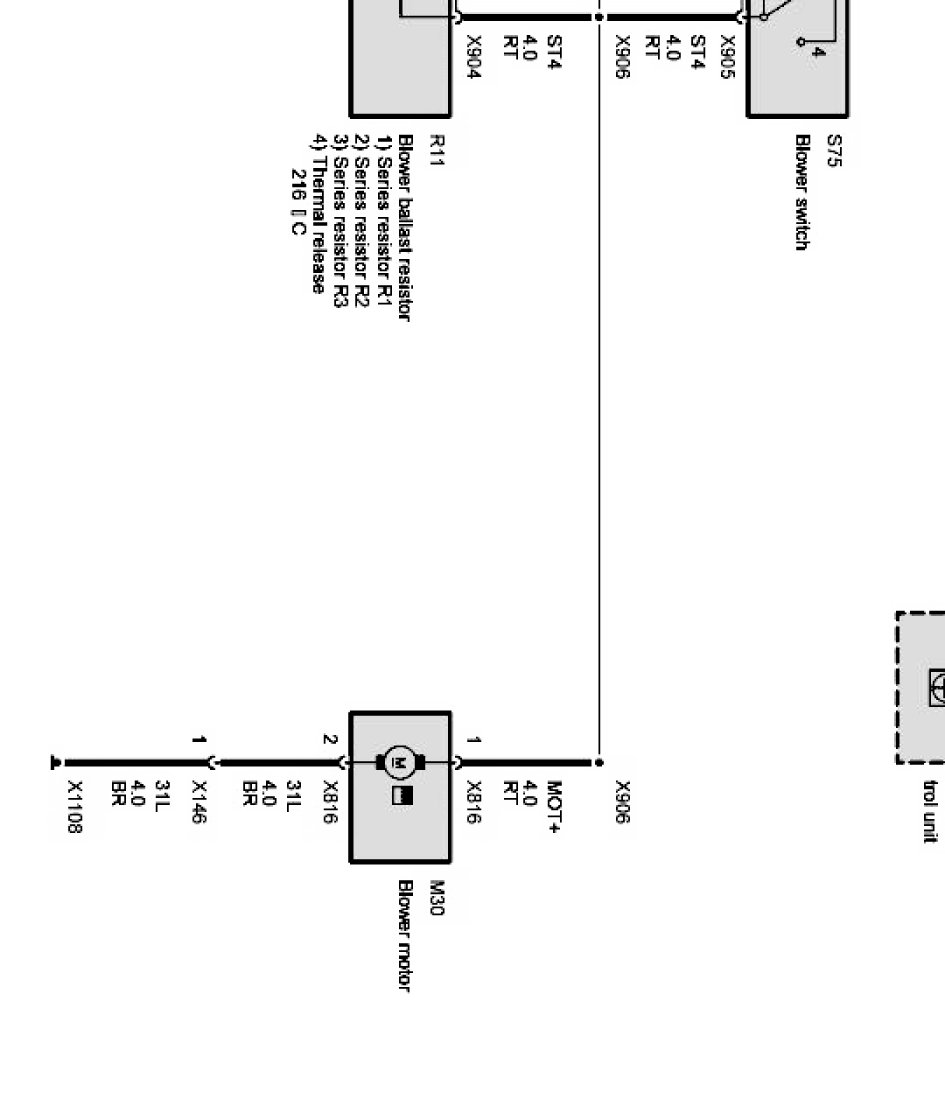

Blower control Part 2:
Blower control Part 3:
Blower control Part 4:
