Manual Temperature Control (Without IHKA Automatic Heating/Air Conditioning System)

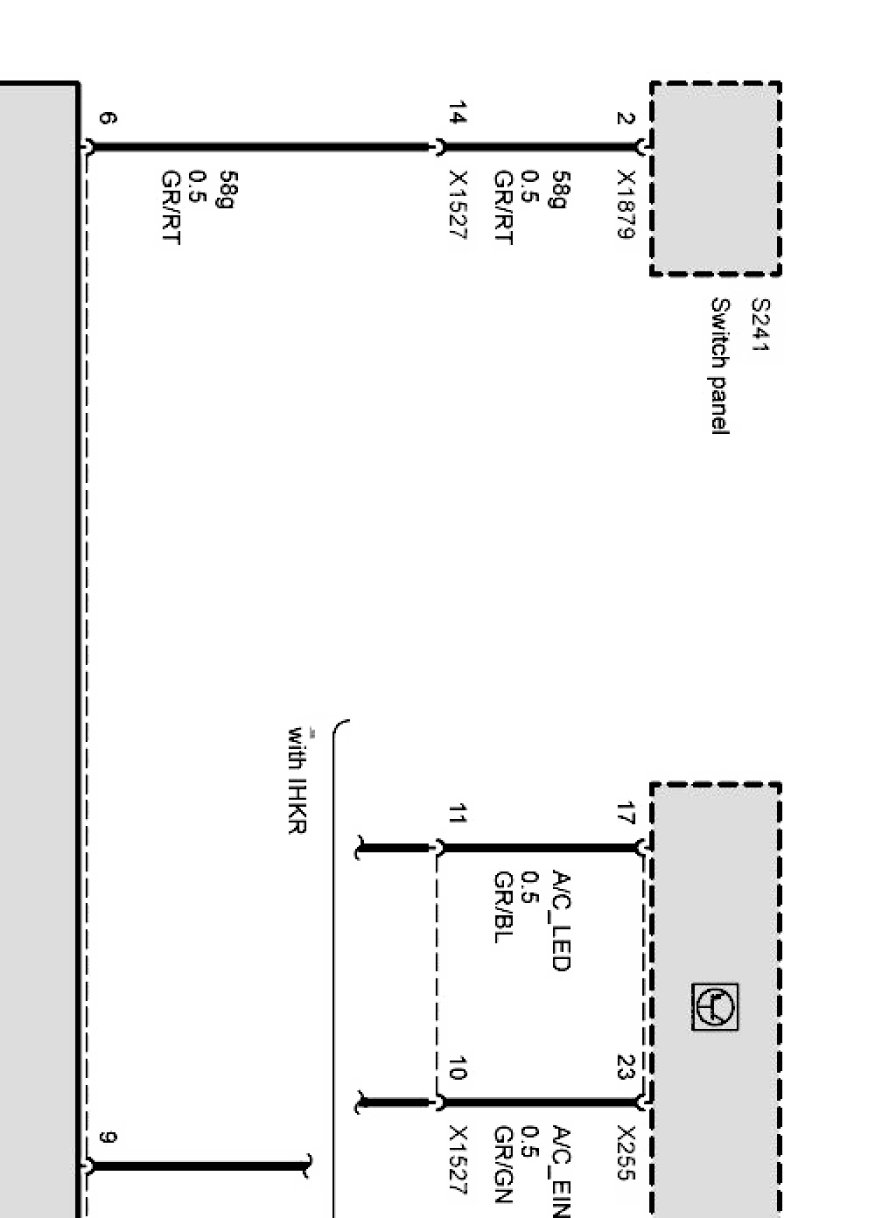

Heating/air conditioning control panel Part 1:

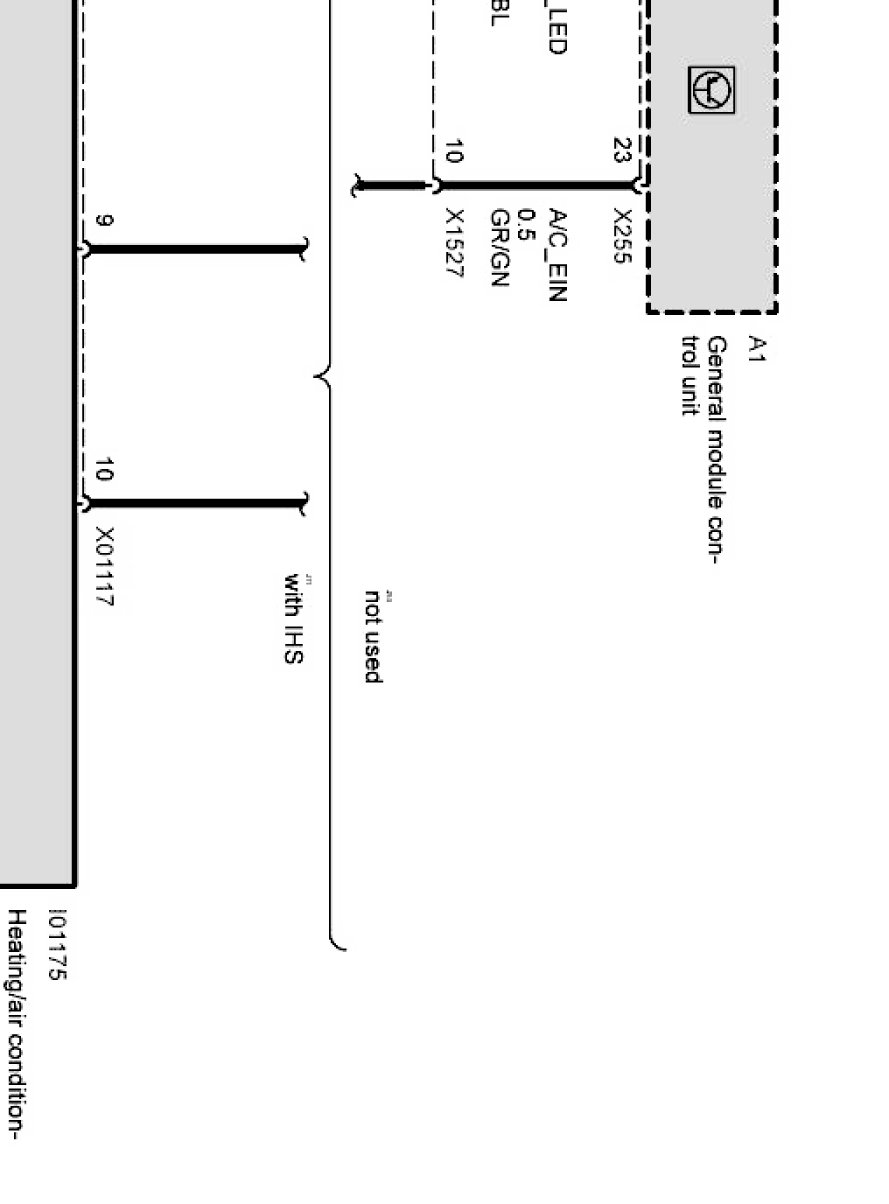

Heating/air conditioning control panel Part 2:

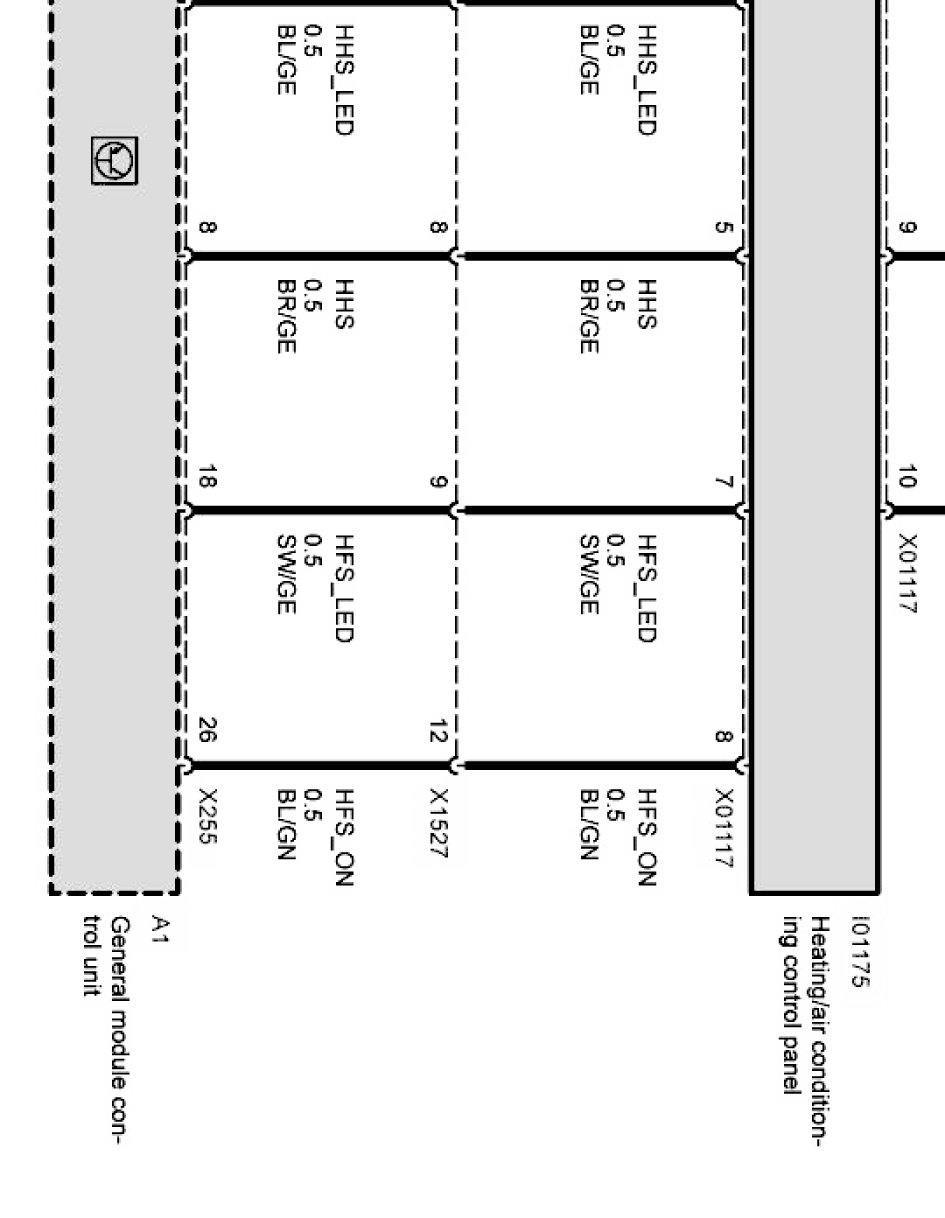

Heating/air conditioning control panel Part 3:

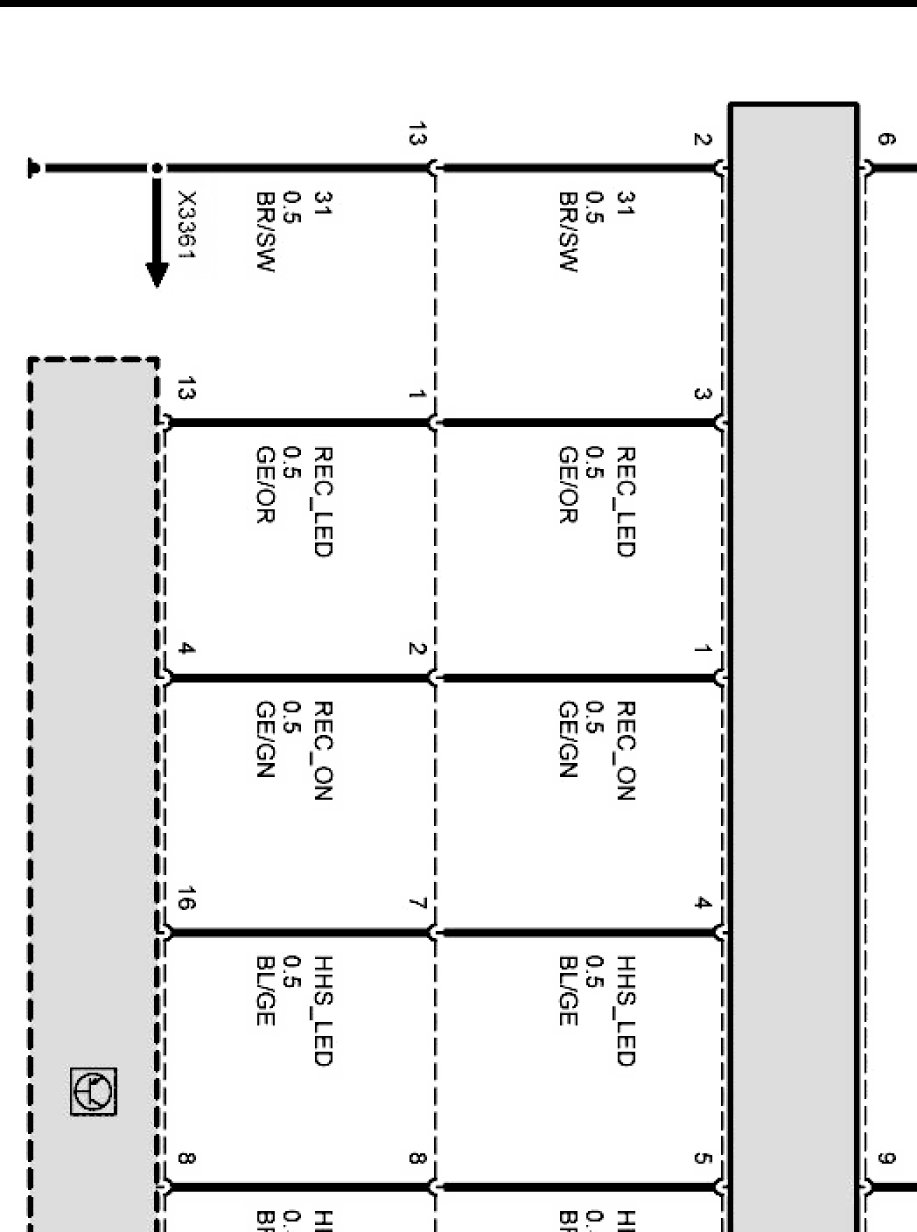

Heating/air conditioning control panel Part 4:
