Brake Light, Center

Brake lights Part 1:



Brake lights Part 2:

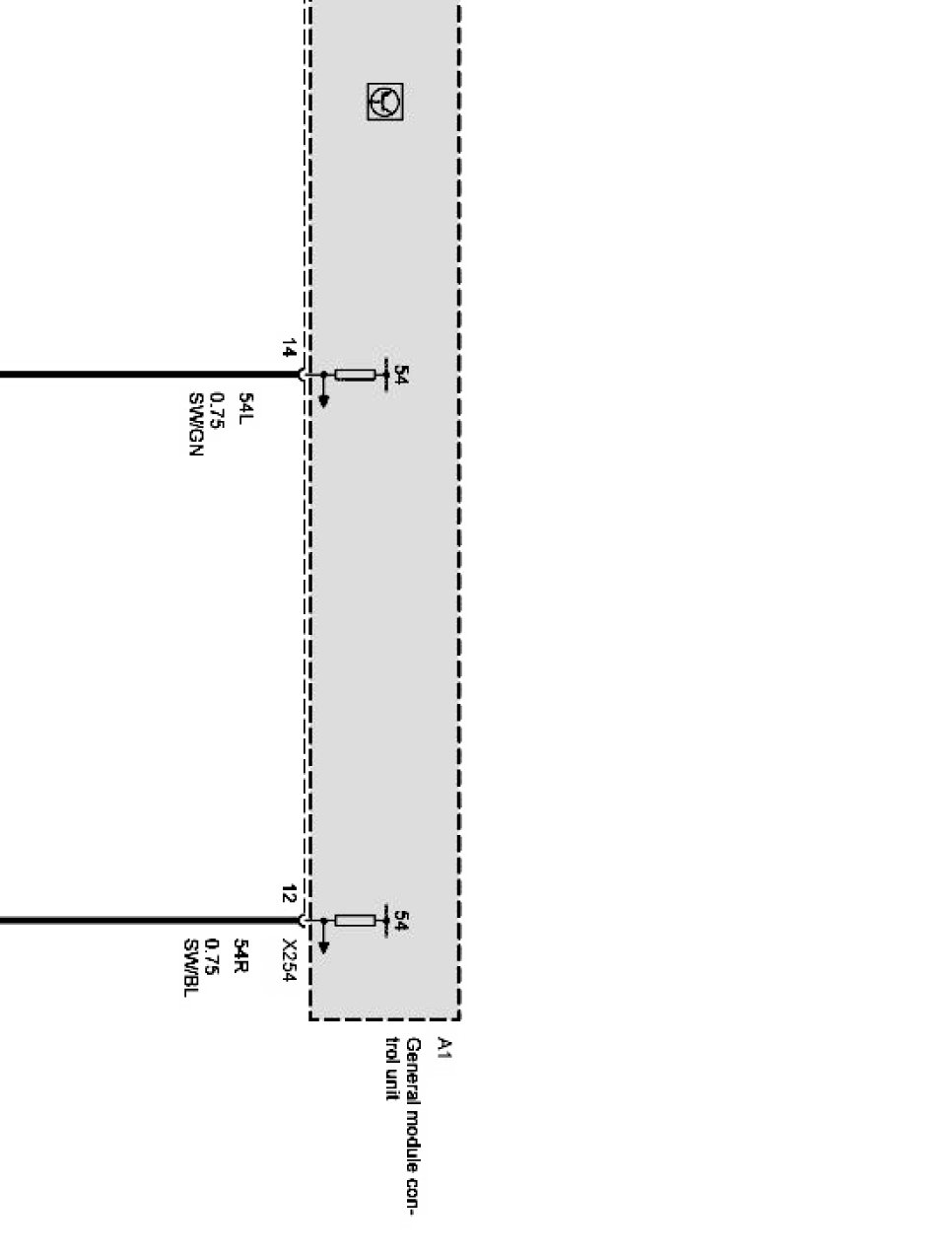

Brake lights Part 3:

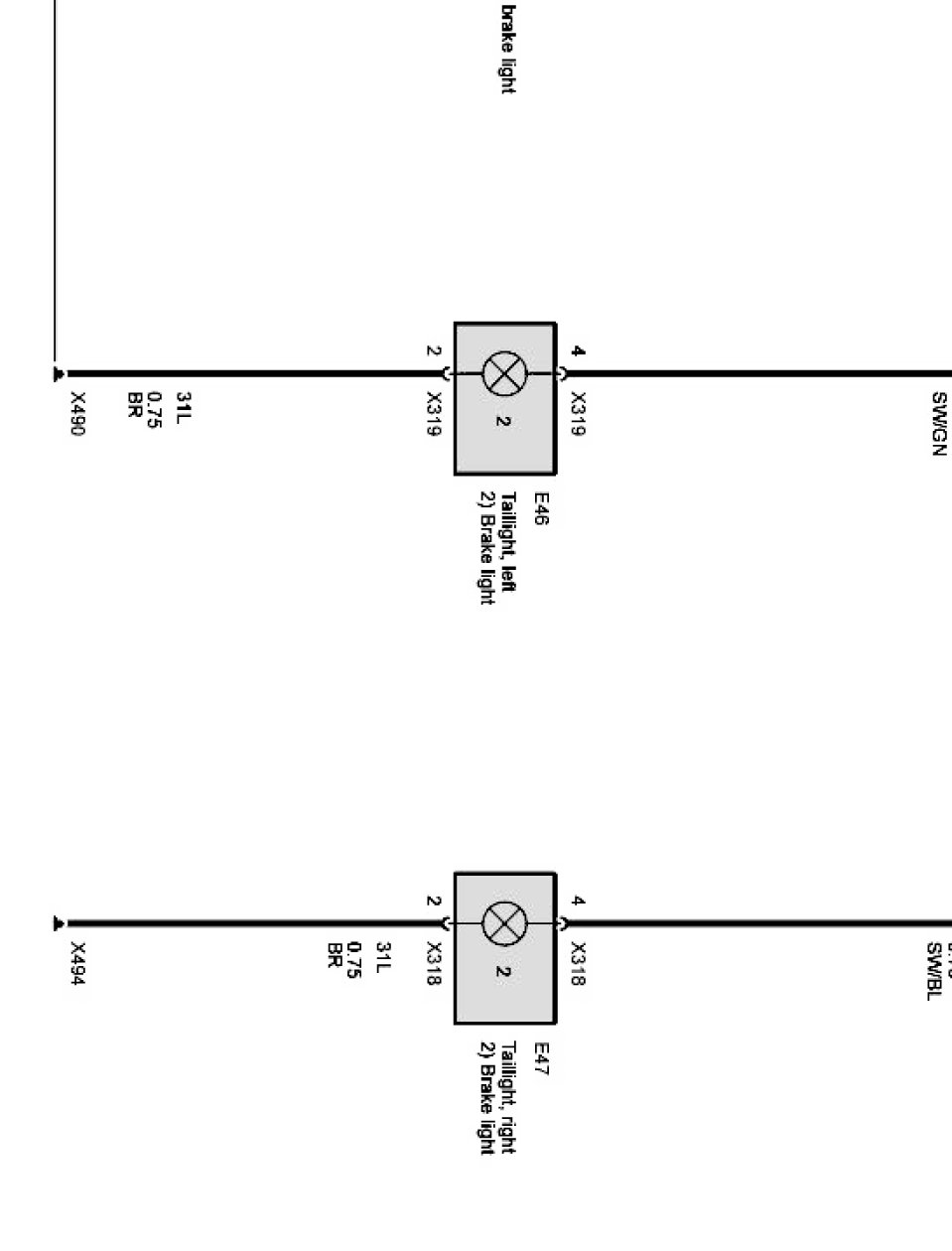

Brake lights Part 4:
