Potentiometer (Without Xenon Light, Left)

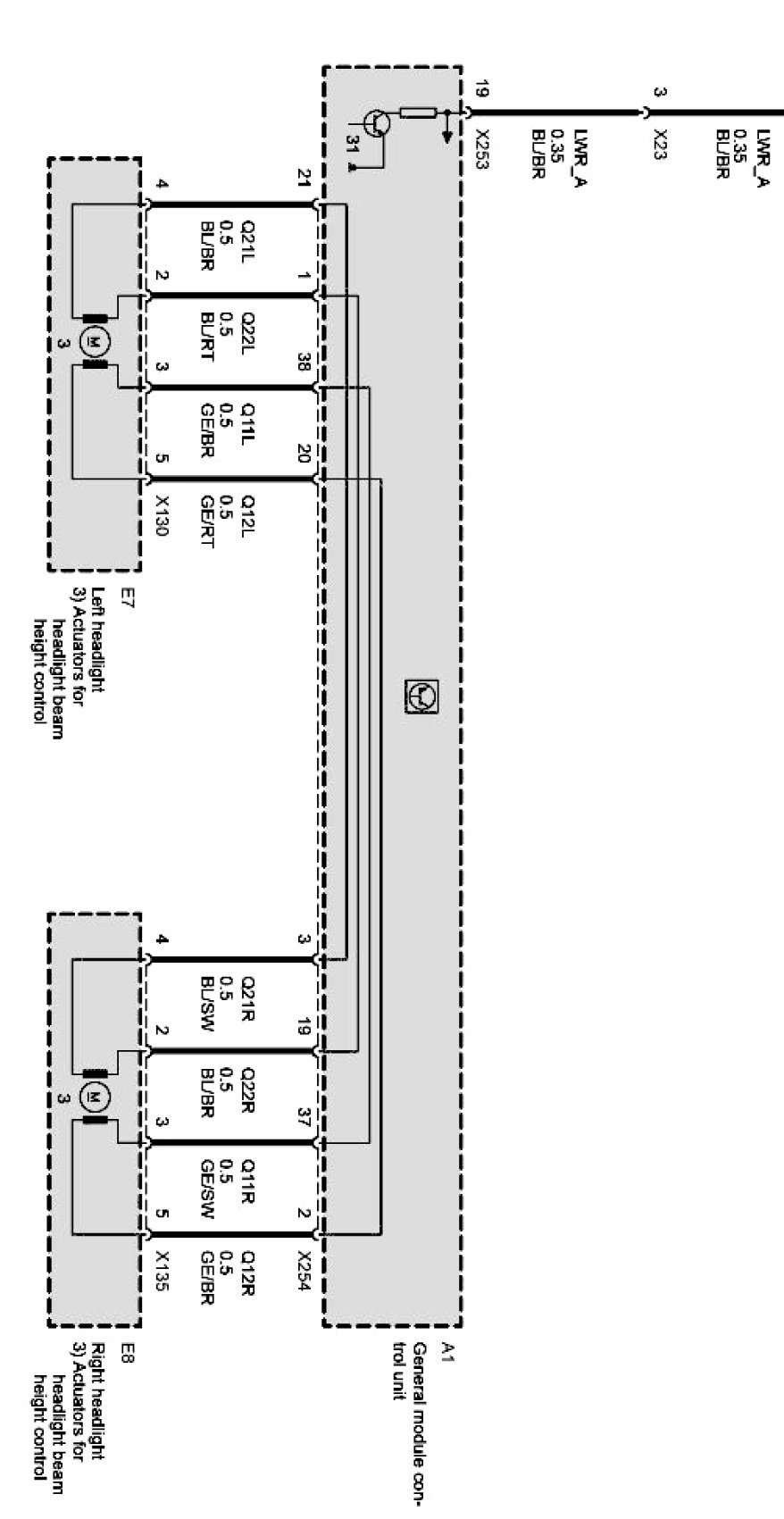

Manual headlight vertical aim control Part 1:



Manual headlight vertical aim control Part 2:
