Low Beam Light High Beam Light (Without Xenon Light, Left)

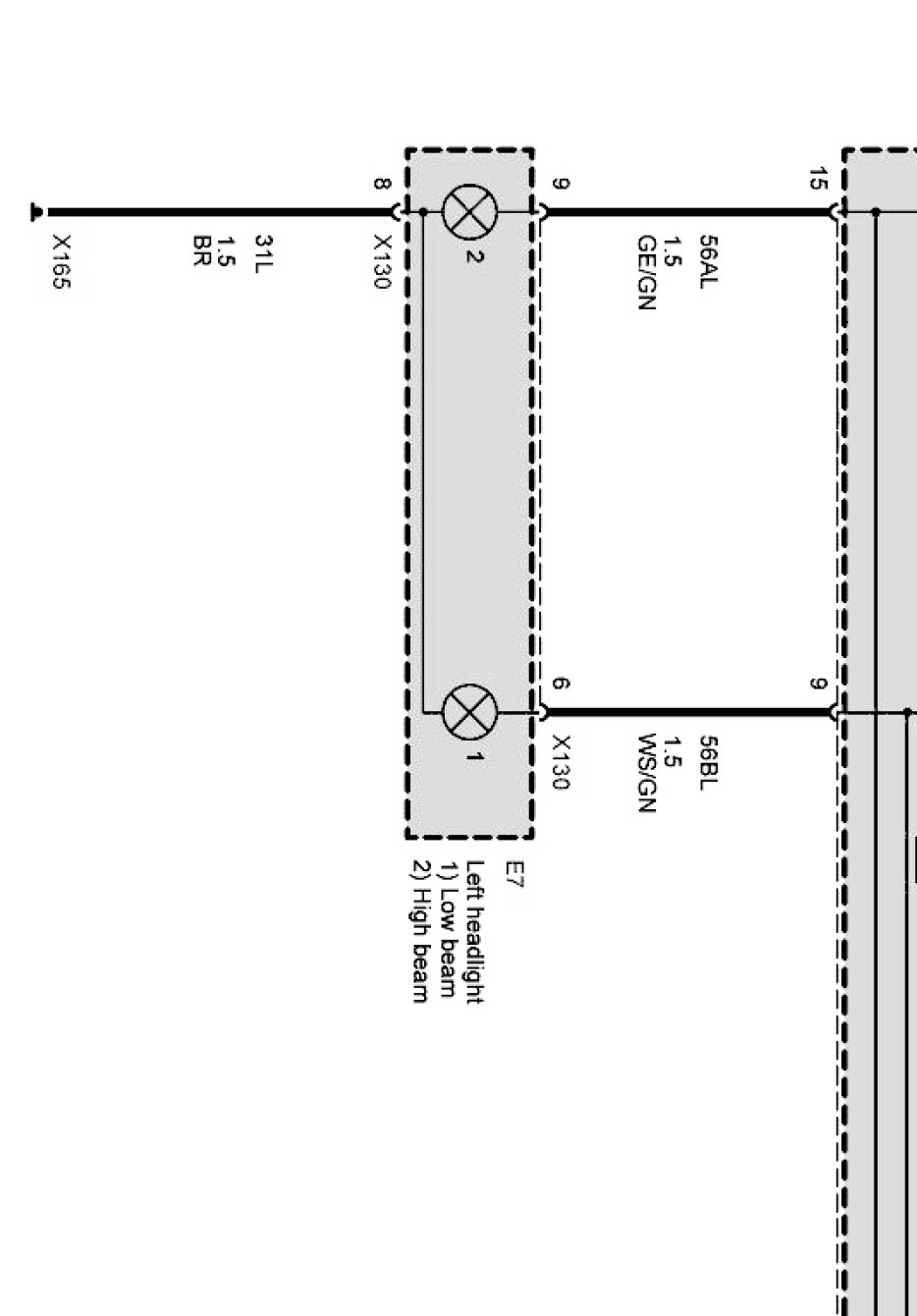

Low beam light High beam light Part 1:

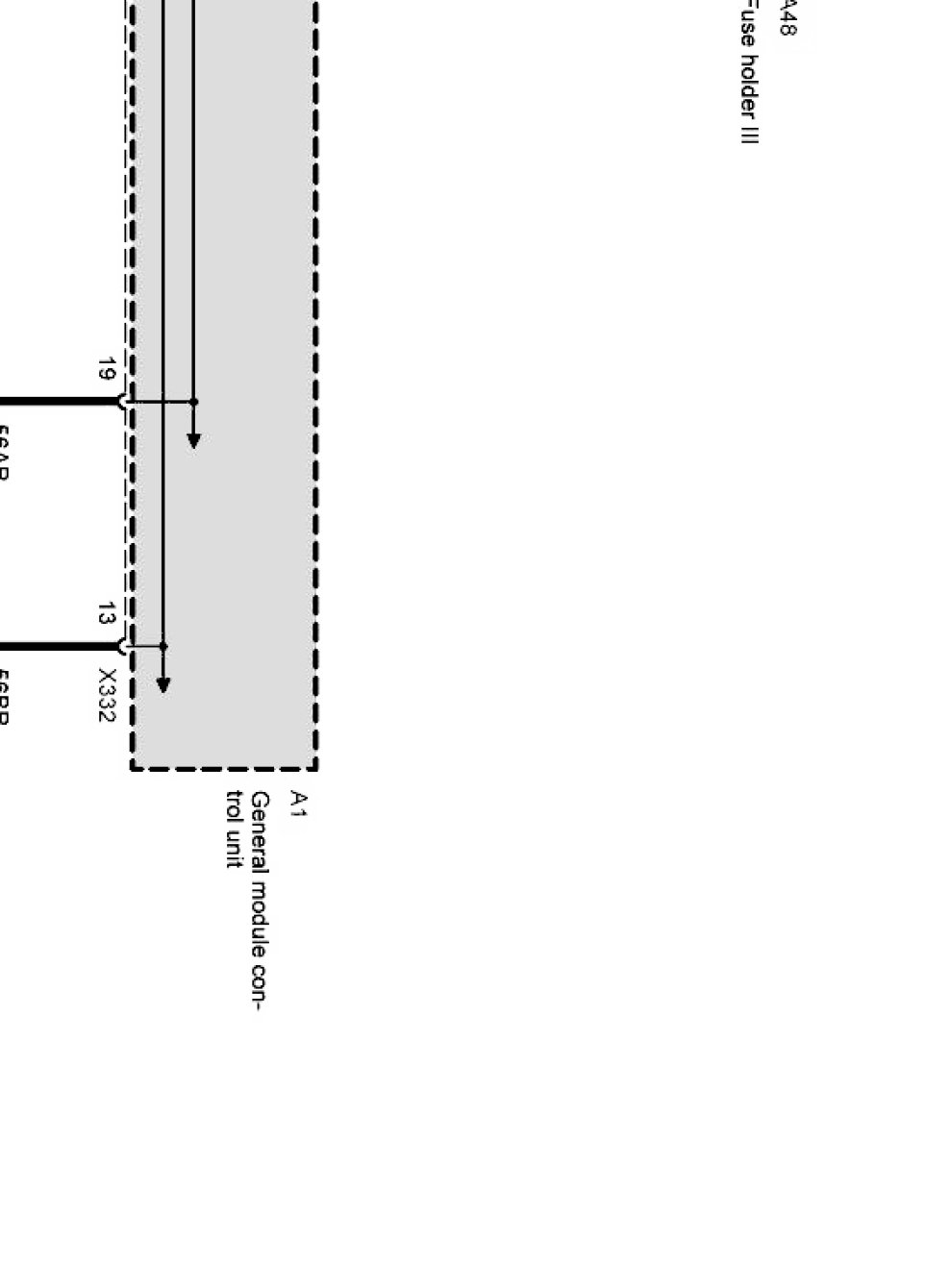

Low beam light High beam light Part 2:

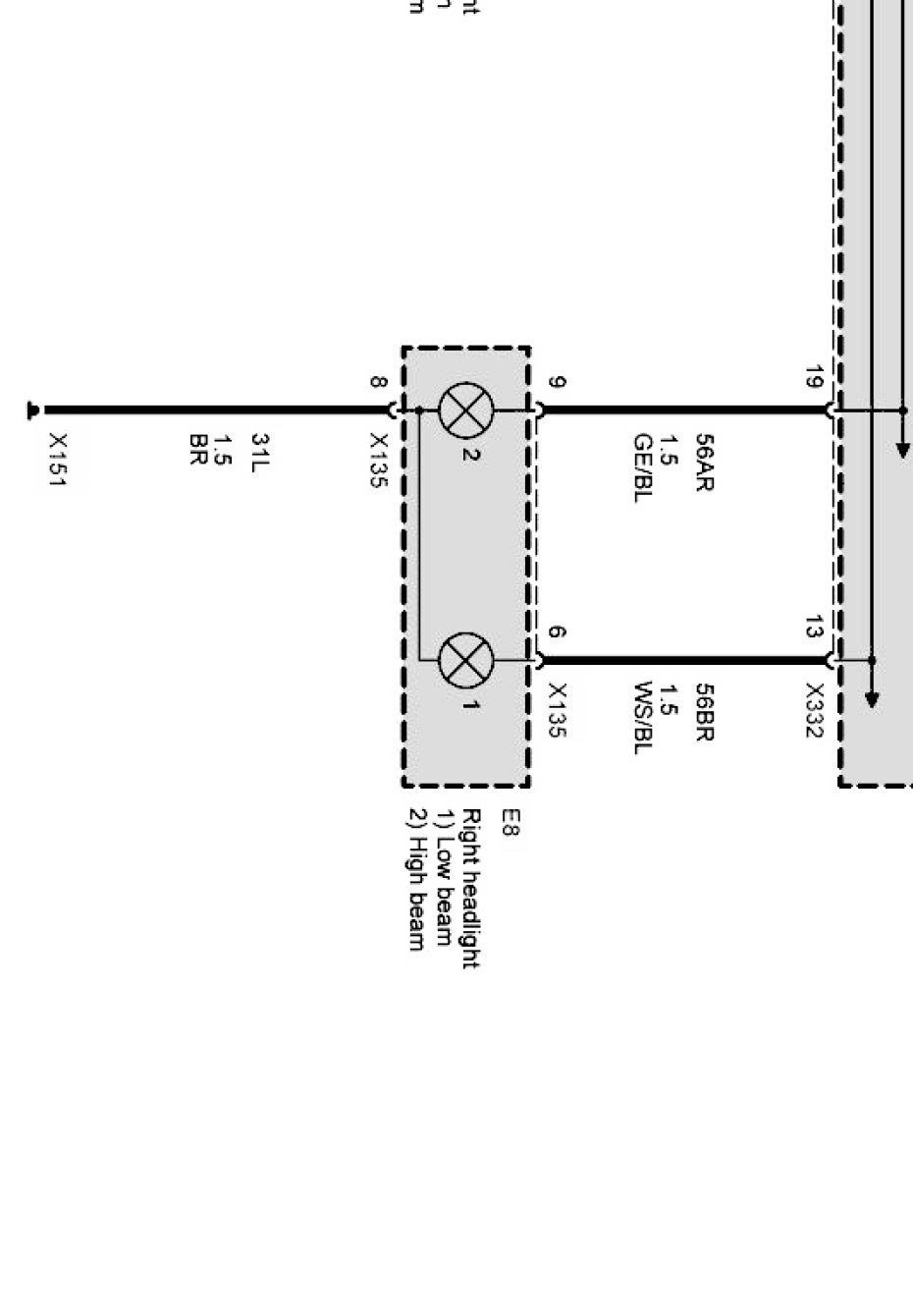

Low beam light High beam light Part 3:



Low beam light High beam light Part 4:
