Luggage Compartment Lights (Coupe)

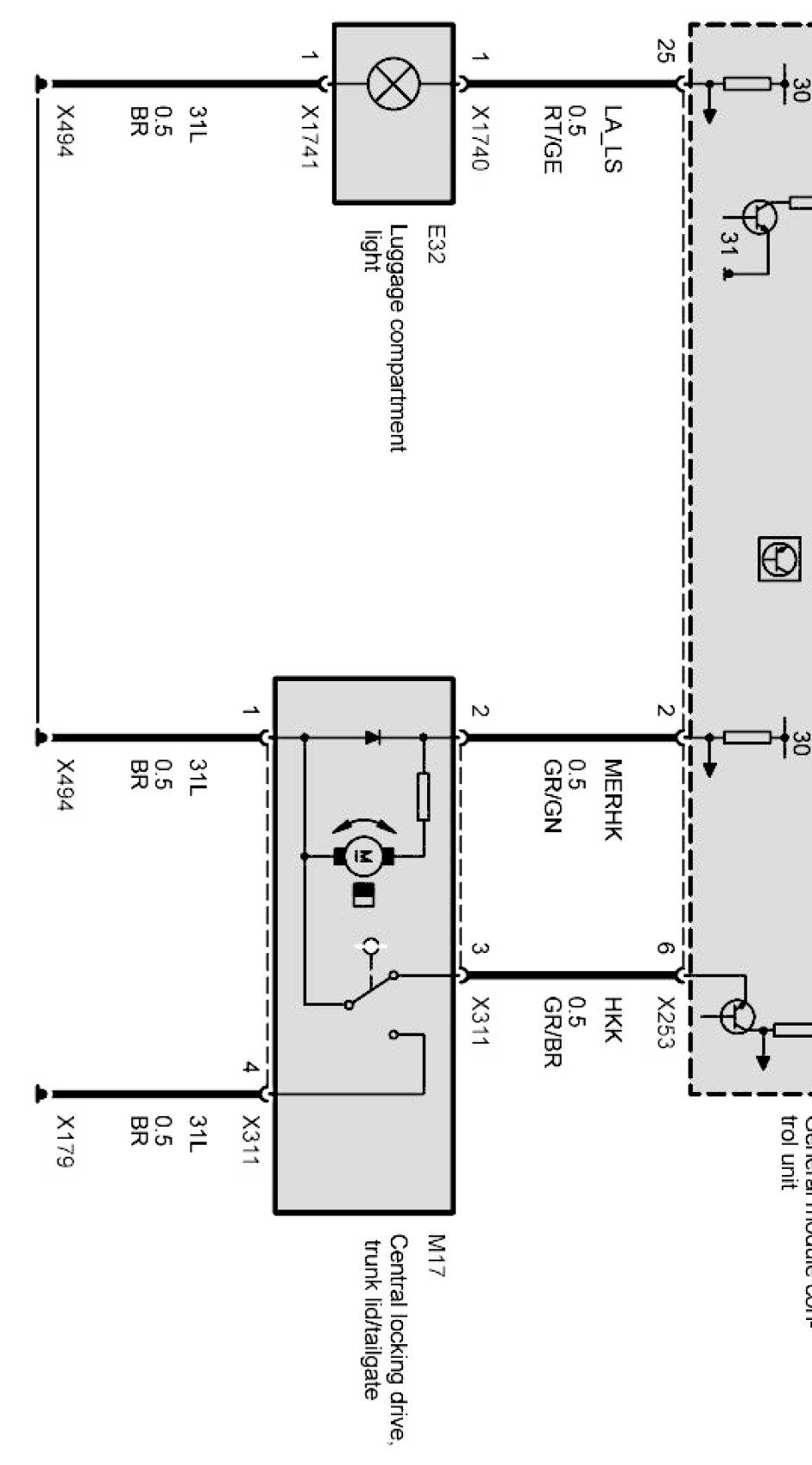

Luggage compartment lights Part 1:

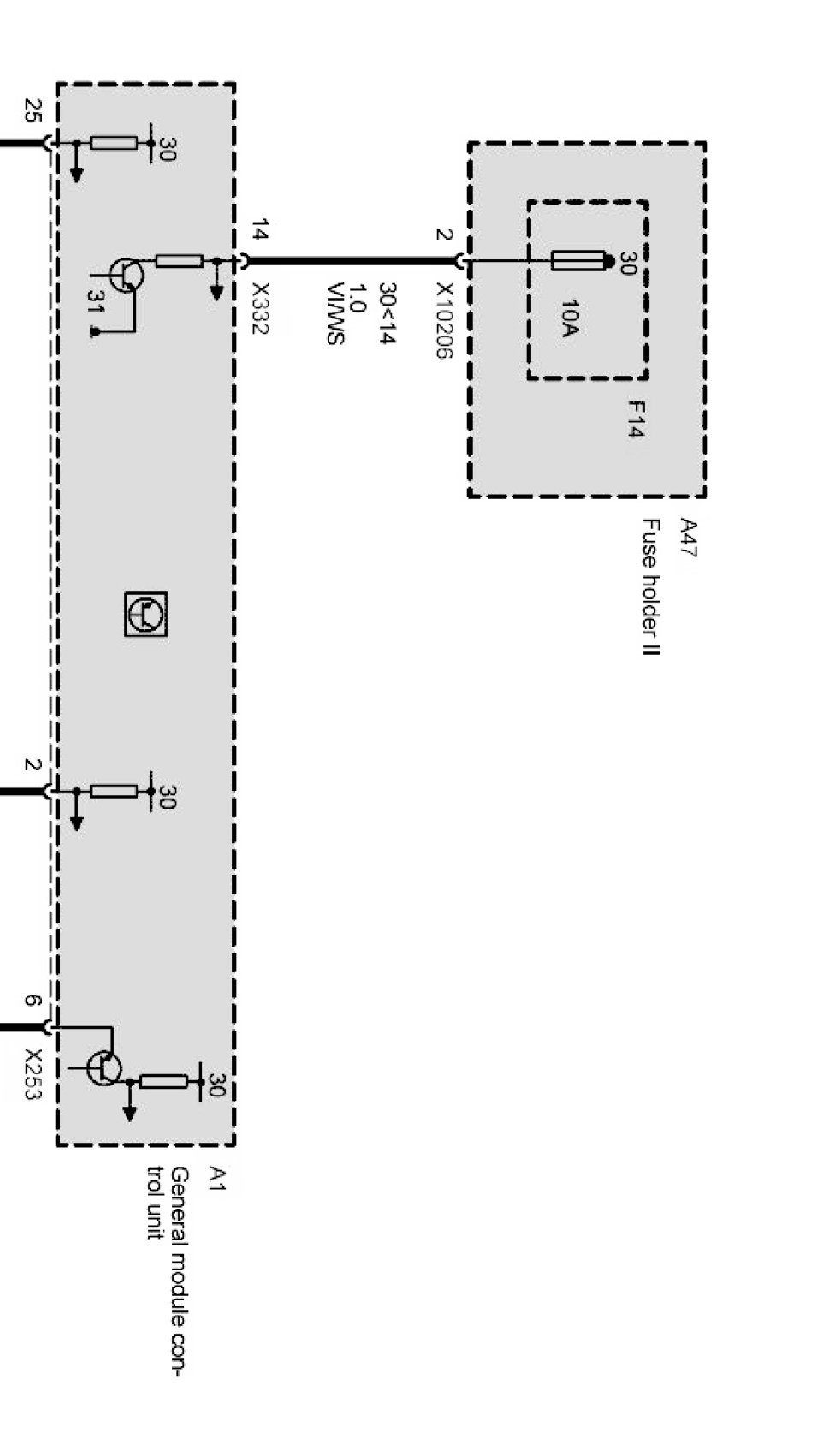

Luggage compartment lights Part 2:
