Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Antitheft Alarm System >> Trunk Lid Contact >> Trunk Lid Release (Coupe As of 09/05 Up to 09/06)

Trunk Lid Release (Coupe As of 09/05 Up to 09/06)

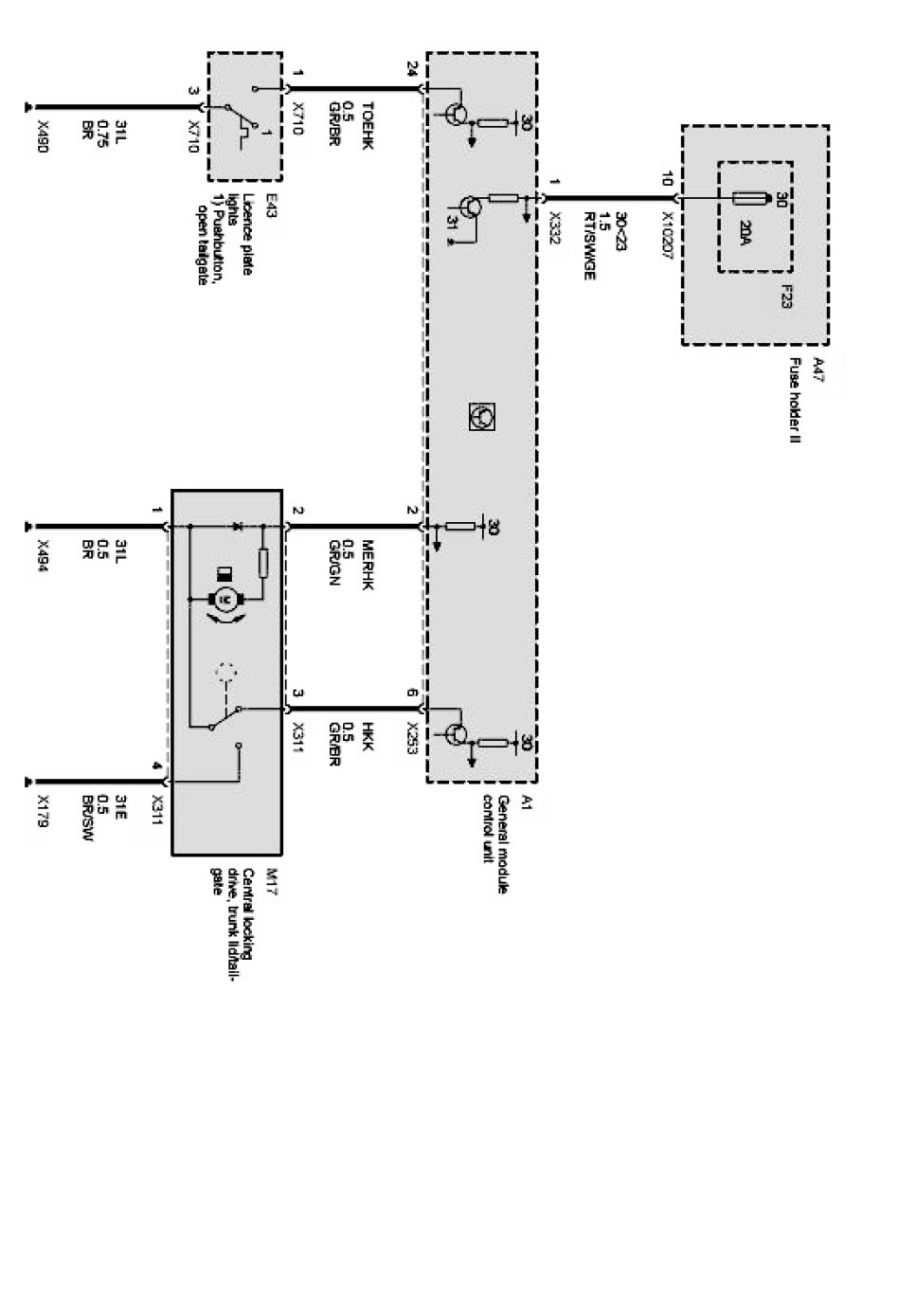

Trunk lid release:
