Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Locking and Security Functions
>>
Power Window
>>
Rear Window Lift (Convertible)
Rear Window Lift (Convertible)

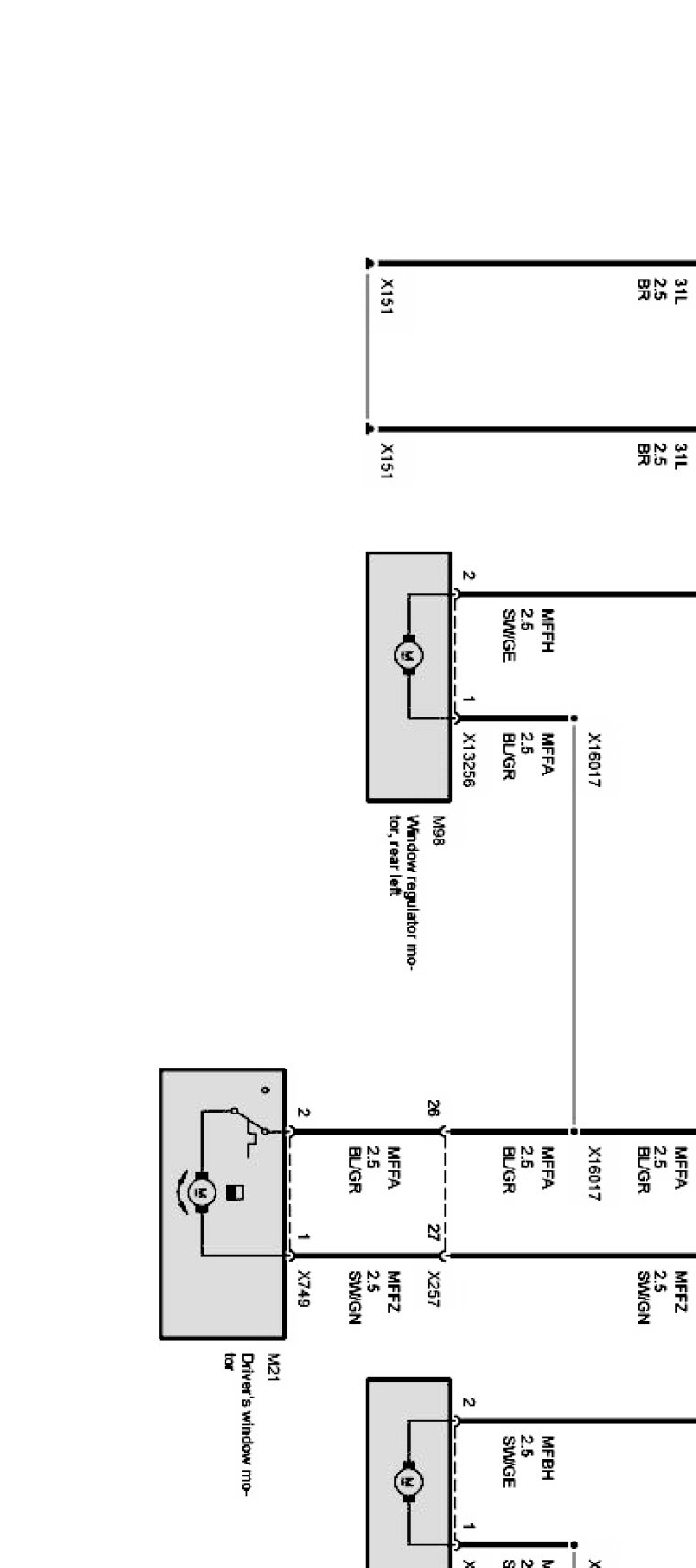

Power window Part 1:

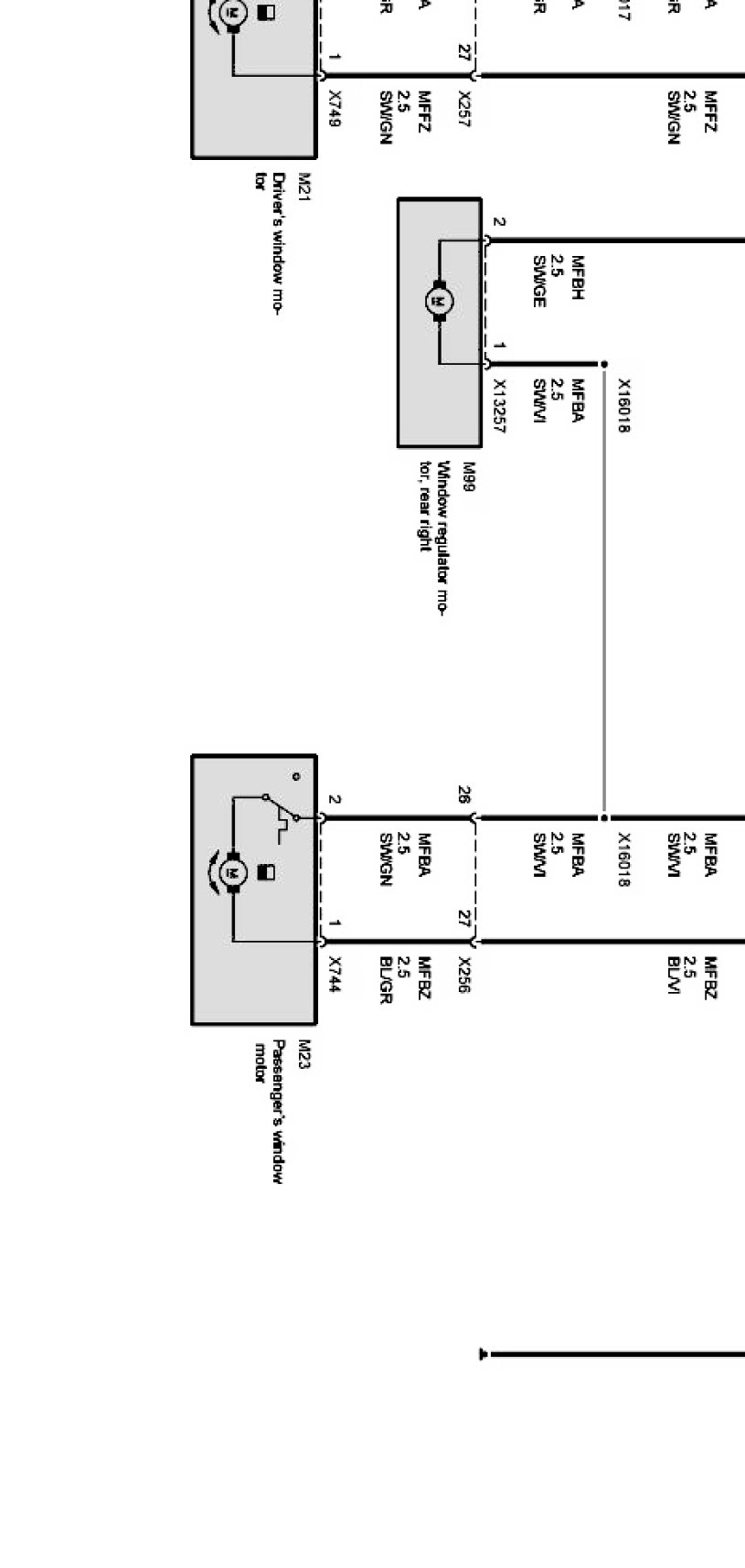

Power window Part 2:

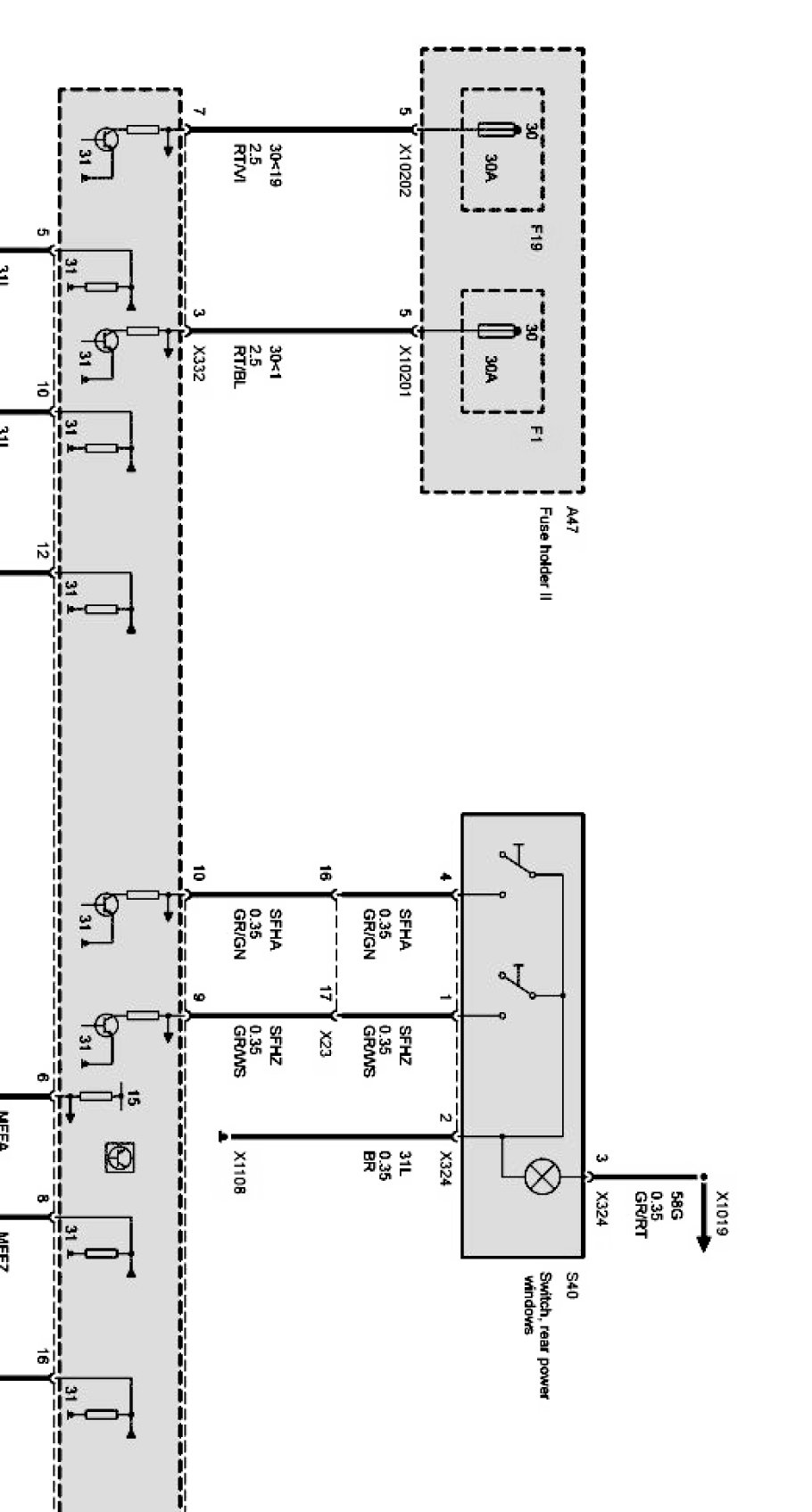

Power window Part 3:

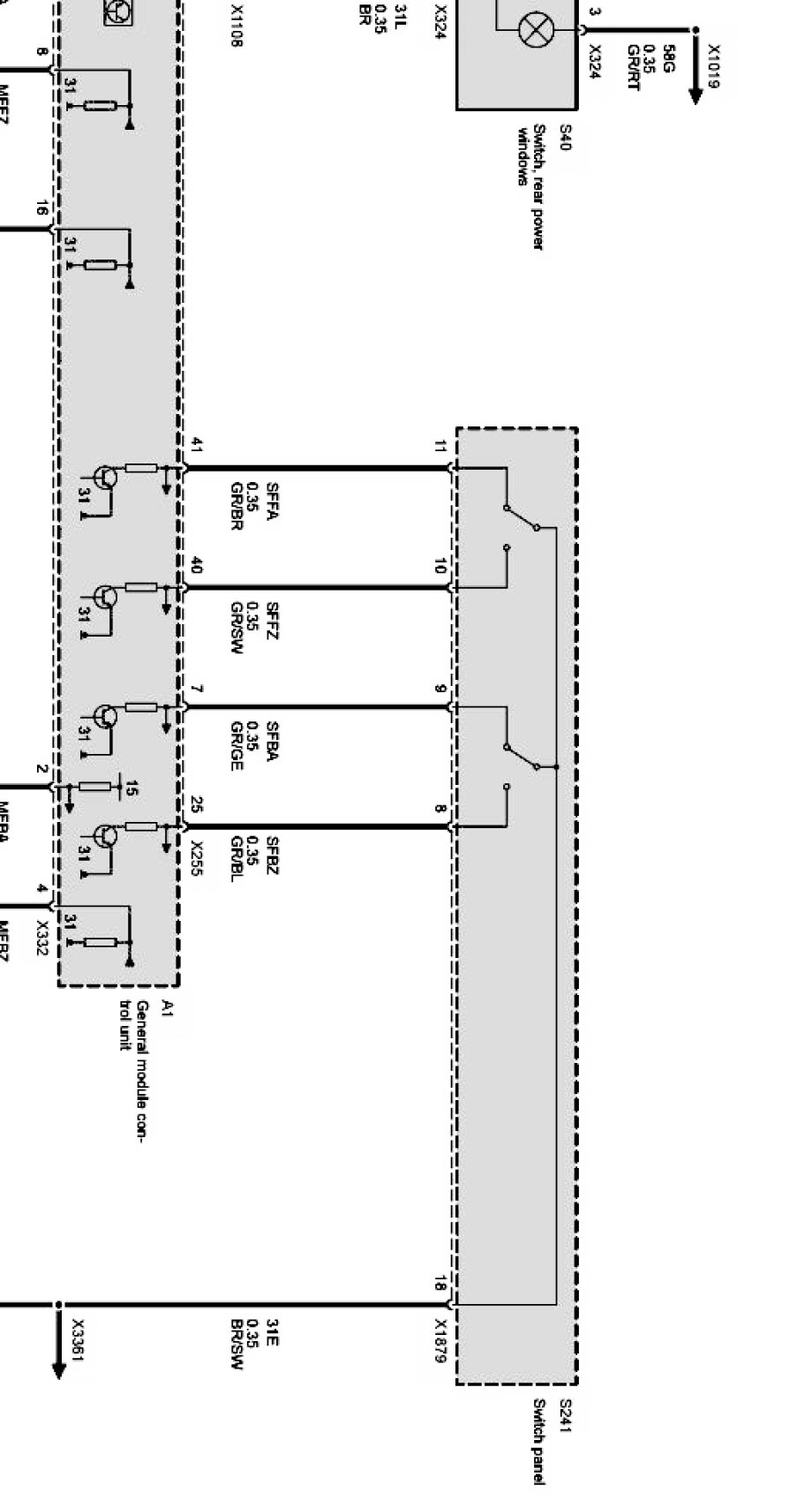

Power window Part 4:
