Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Signal and Warning Functions >> Parking Aid (PDC Park Distance Control) >> RH Rear Center Converter

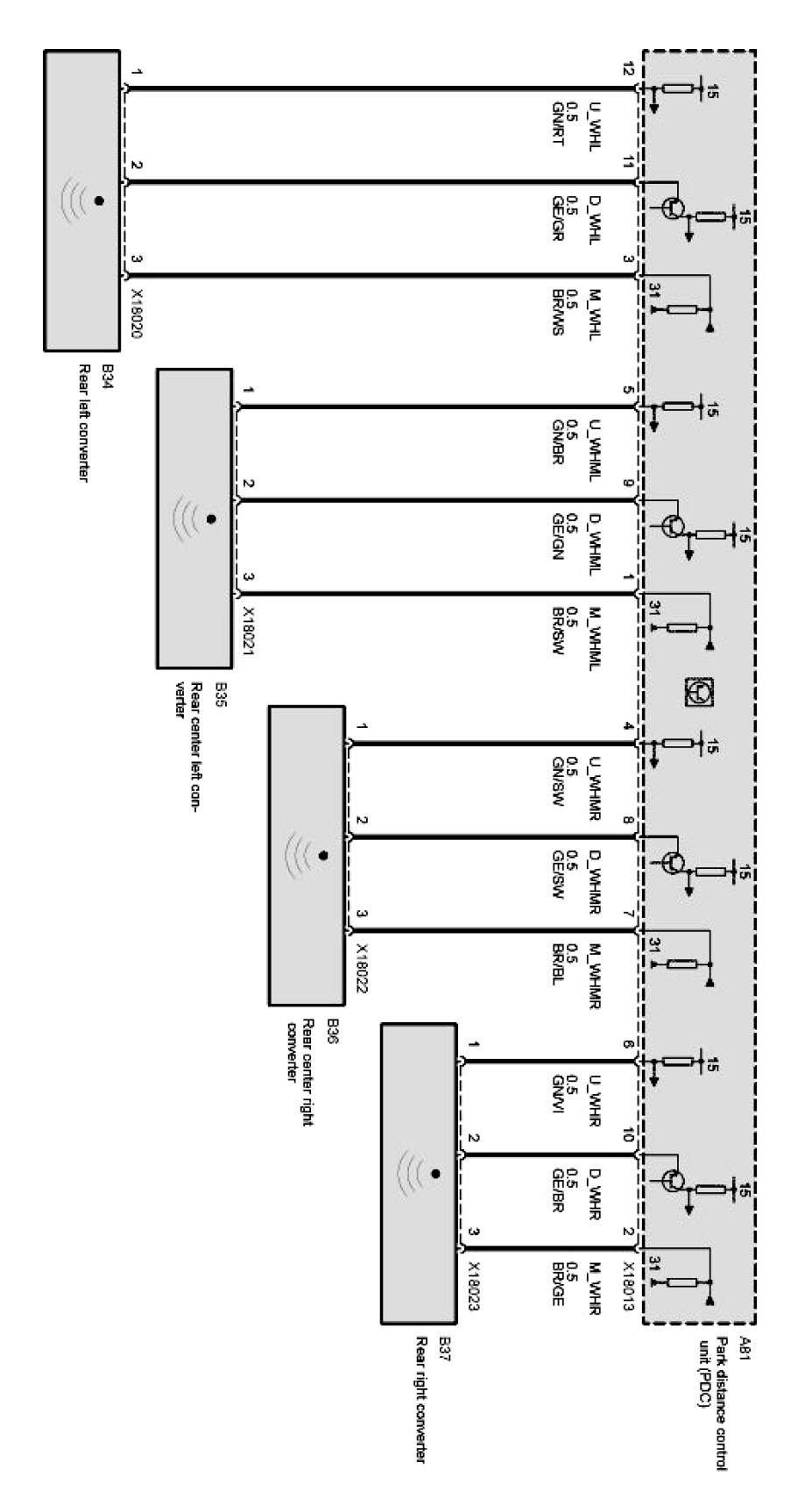

RH Rear Center Converter

Rear ultrasonic converter:
