Back-Up Lights (Coupe Up to 07/04)

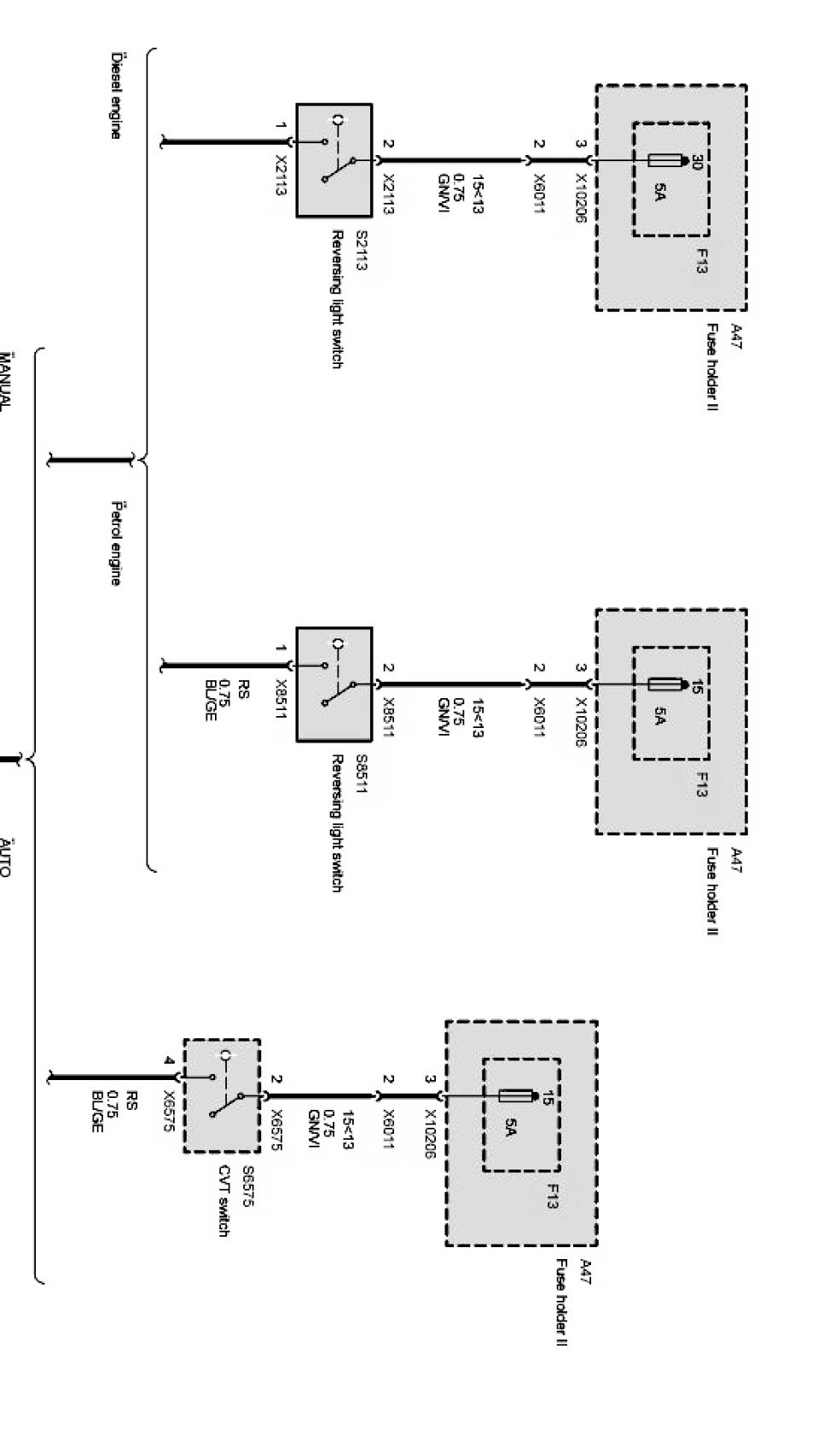

Back-up lights Part 1:

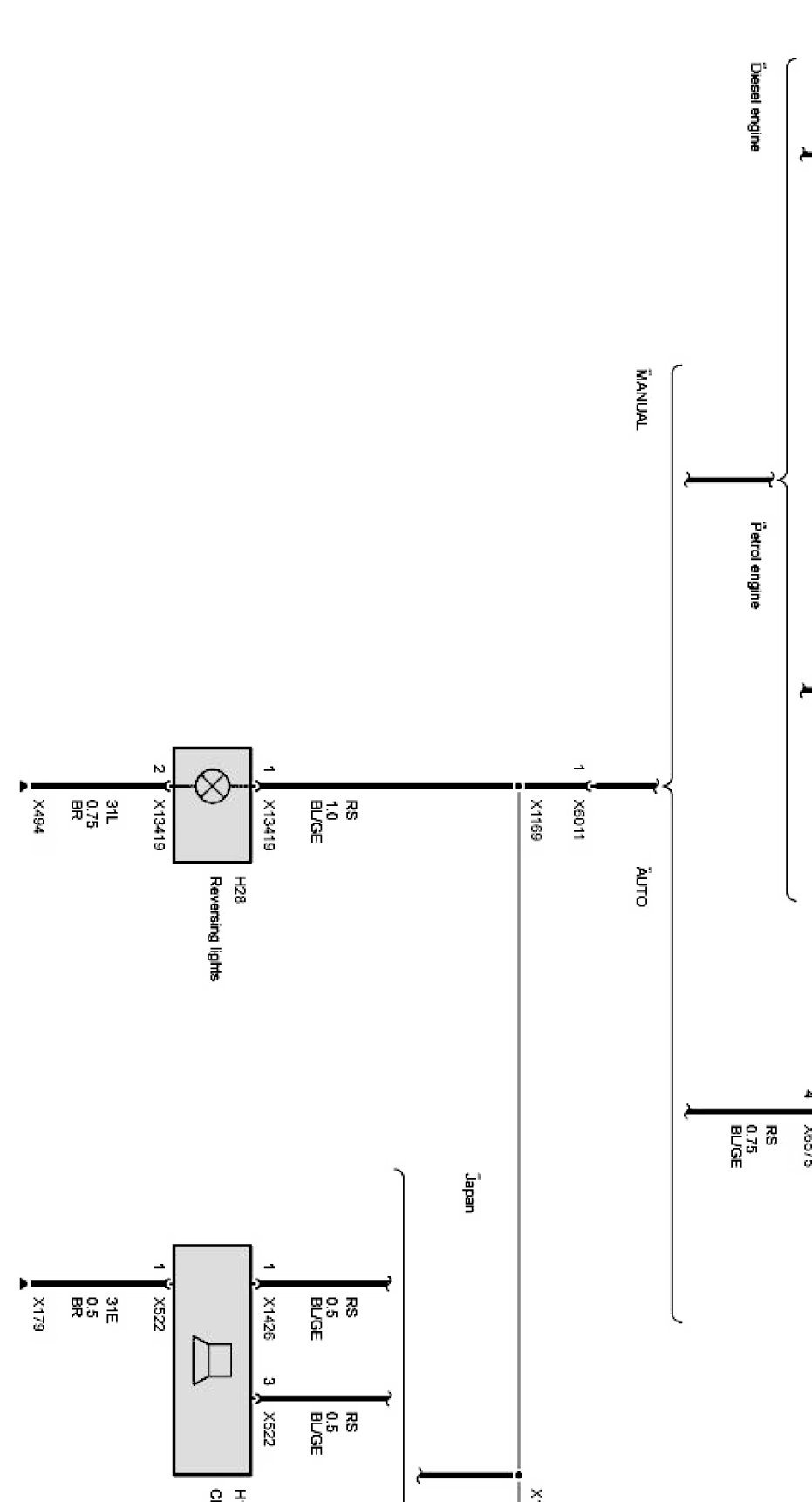

Back-up lights Part 2:

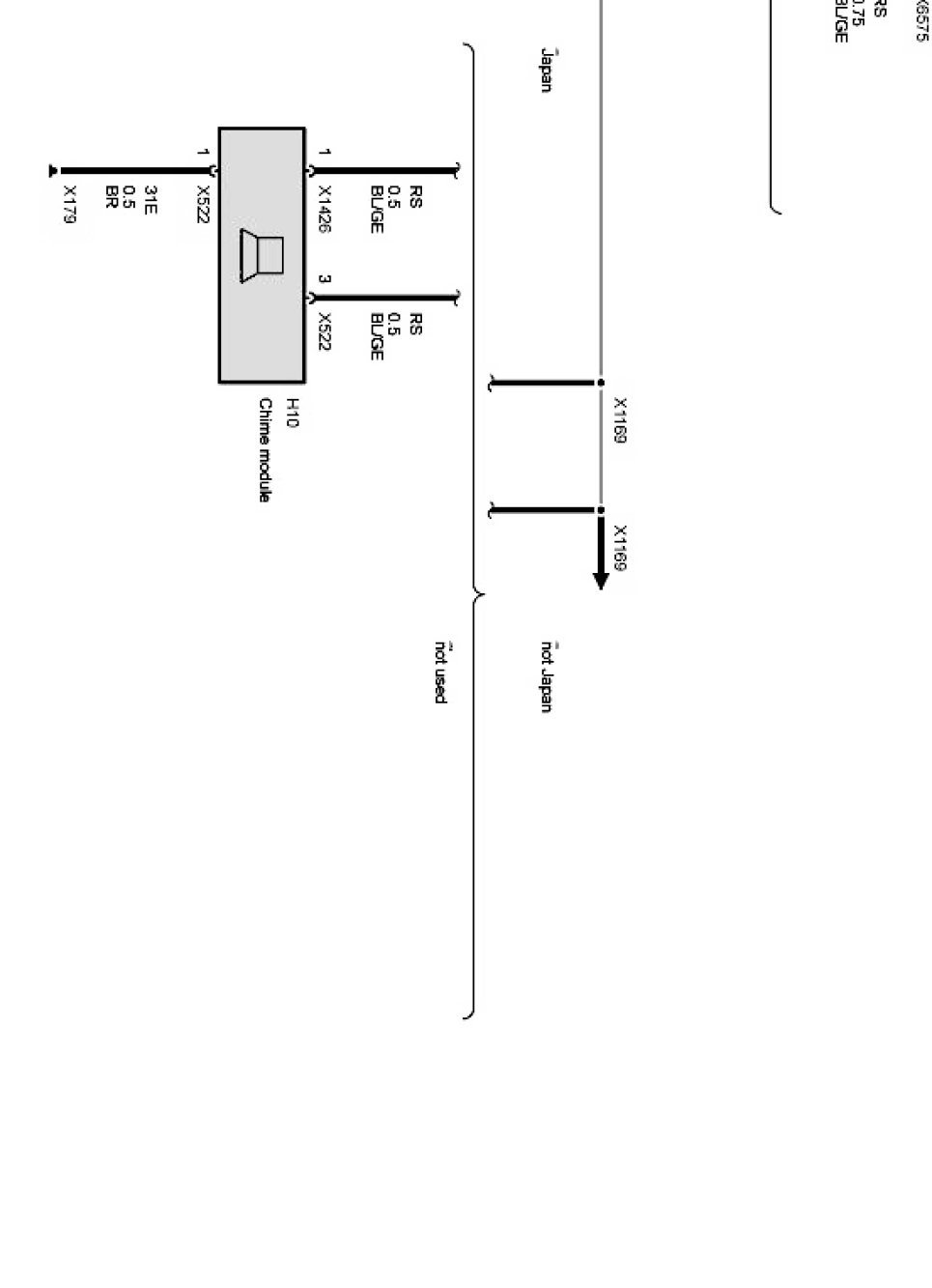

Back-up lights Part 3:
