Diesel Data: Automotive Repair
Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Slip Control Systems >> ABS MK60/MK70 (ABS Anti-Lock Brake System) >> ABS Control Module >> Vehicle Electrical System >> Supply (As of 09/03 Up to 09/05)

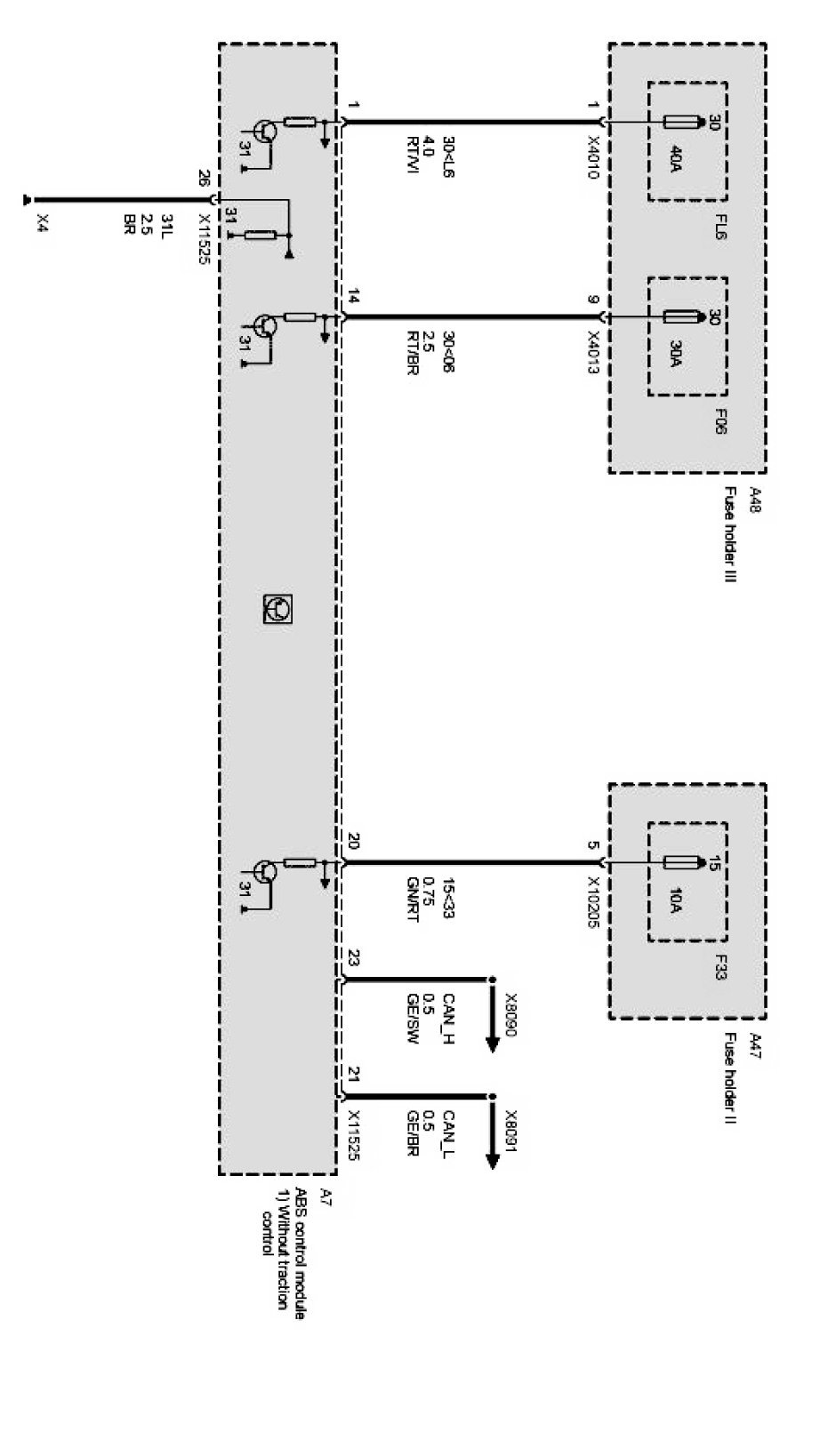

Supply (As of 09/03 Up to 09/05)

Supply:
