Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Tire Pressure Control (RDC Tire Pressure Control) >> Tire Pressure Control (RDC)

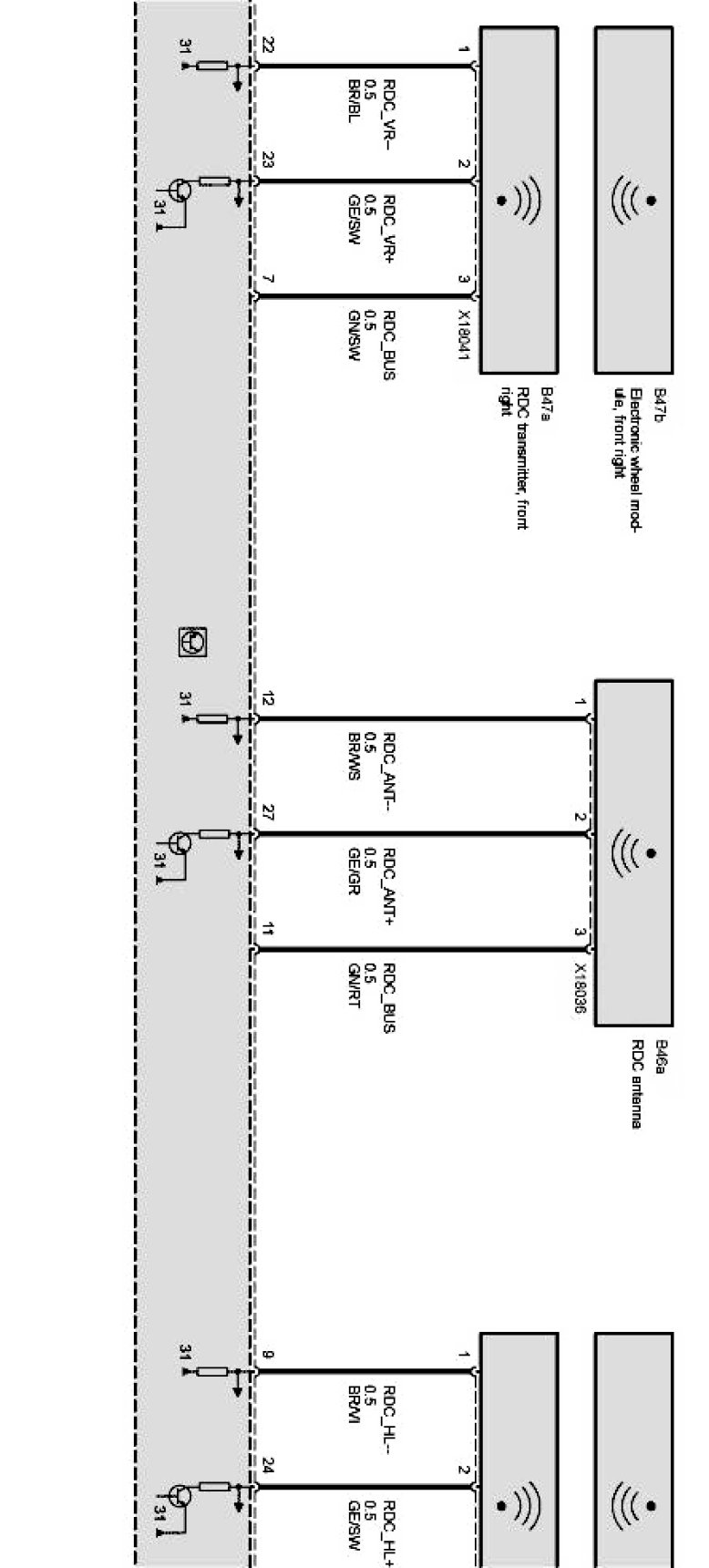

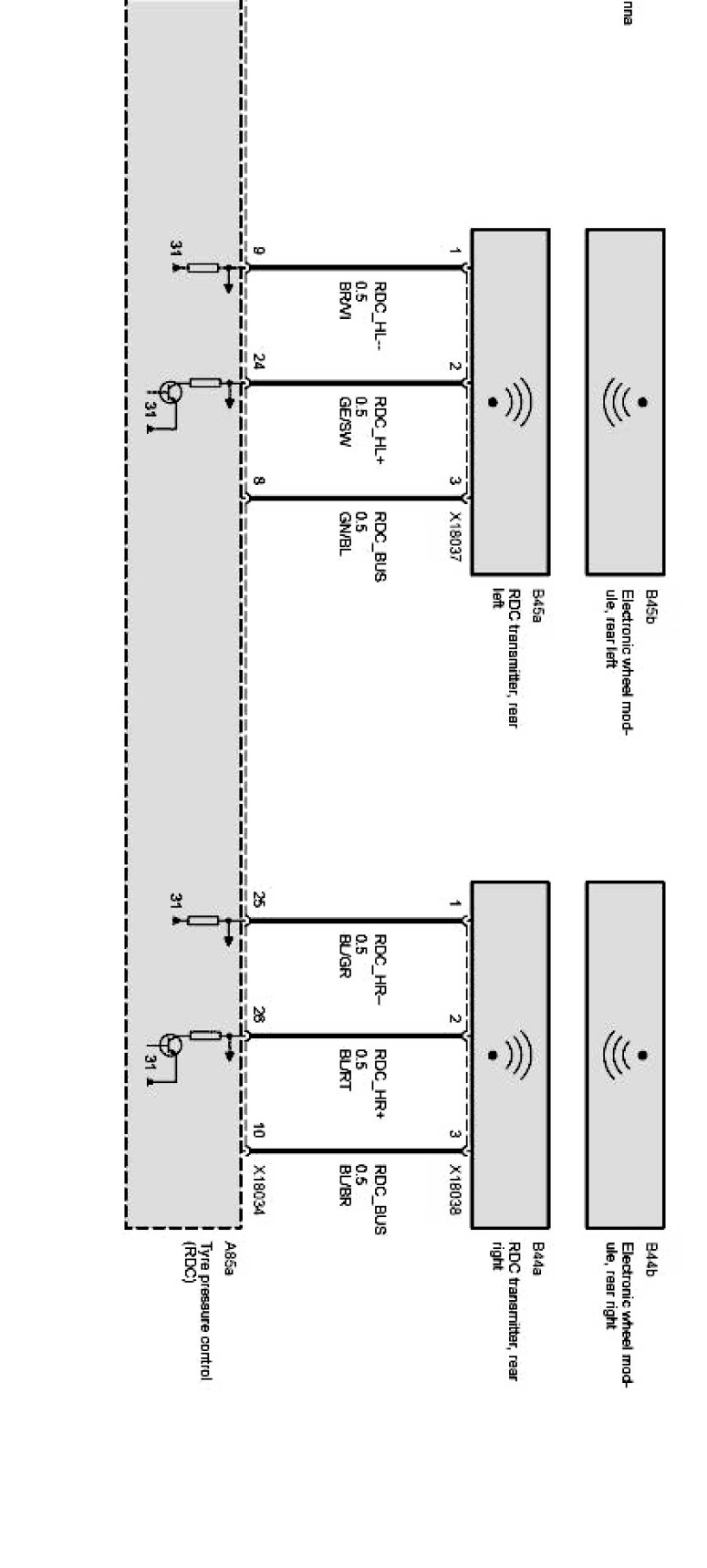

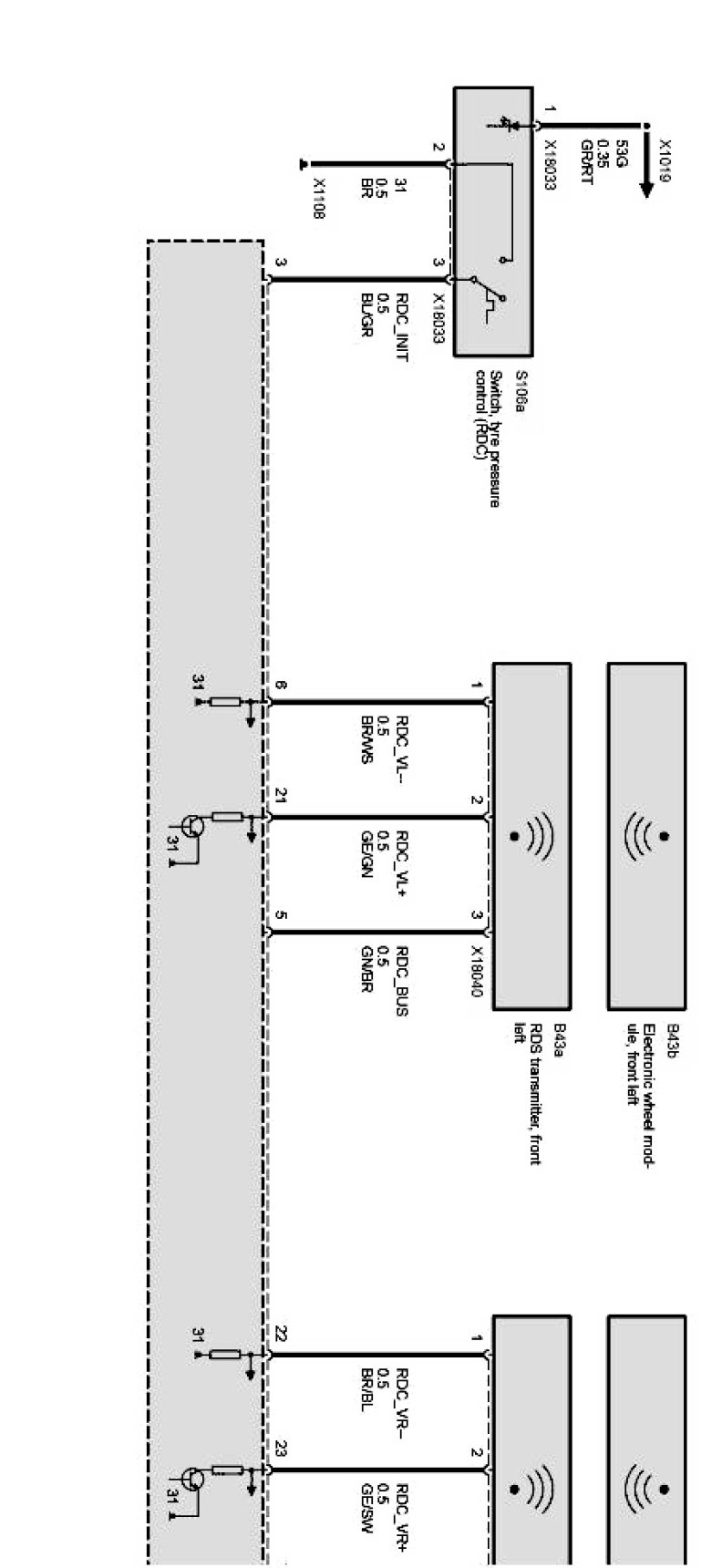

Tire Pressure Control (RDC)
