Home
>>
Mini
>>
2006
>>
Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Drive
>>
Engine and Transmission Control EMS2 (DME Digital Motor/Transmission Electronics 2)
>>
Injection
>>
Fuel Pump, Fuel Pump Relay
>>
Fuel Pump ((Convertible (Or Coupe As of 07/04)) Up to 09/05)
Fuel Pump ((Convertible (Or Coupe As of 07/04)) Up to 09/05)

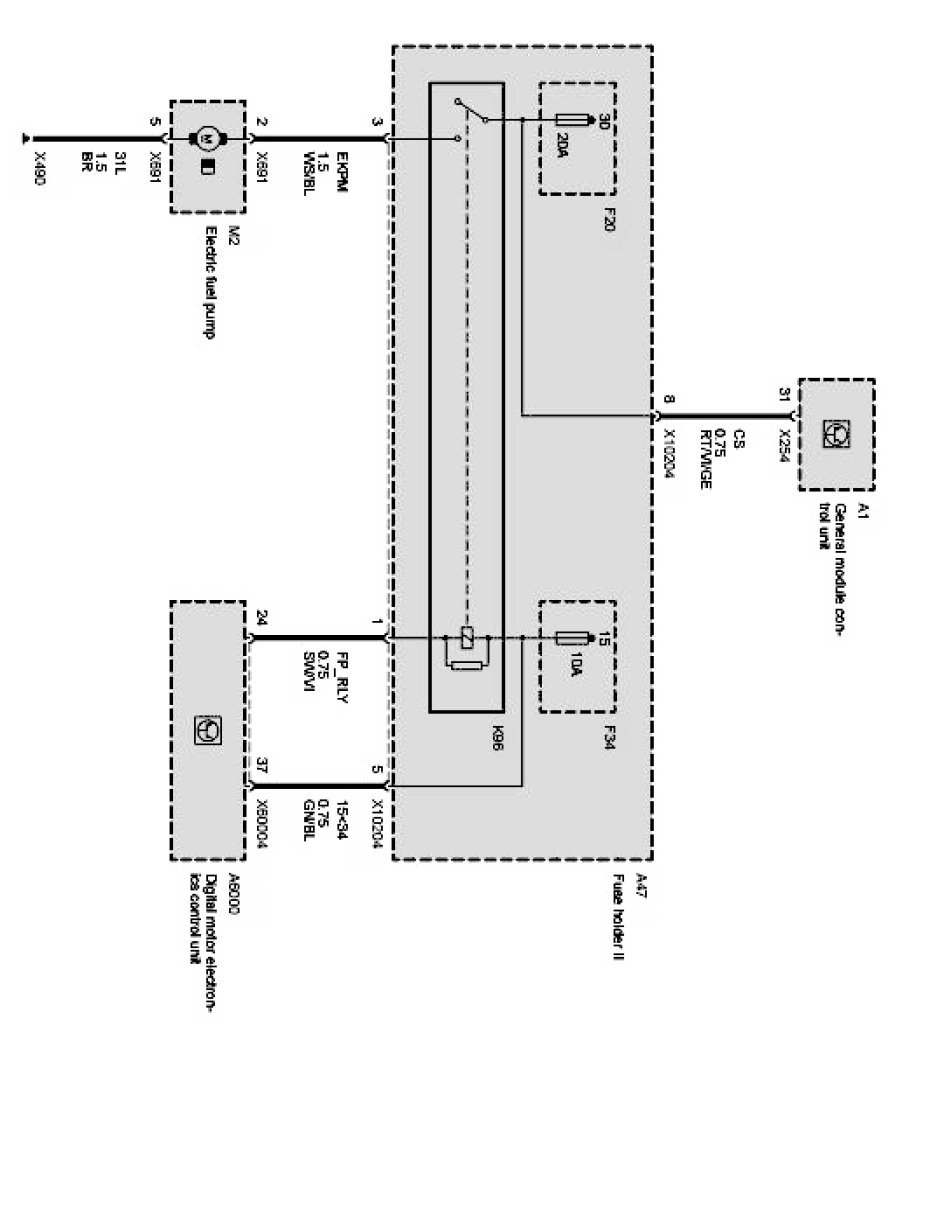

Fuel pump:
