Clutch Switch Module Brake Light Switch (Without W17 As of 09/05)

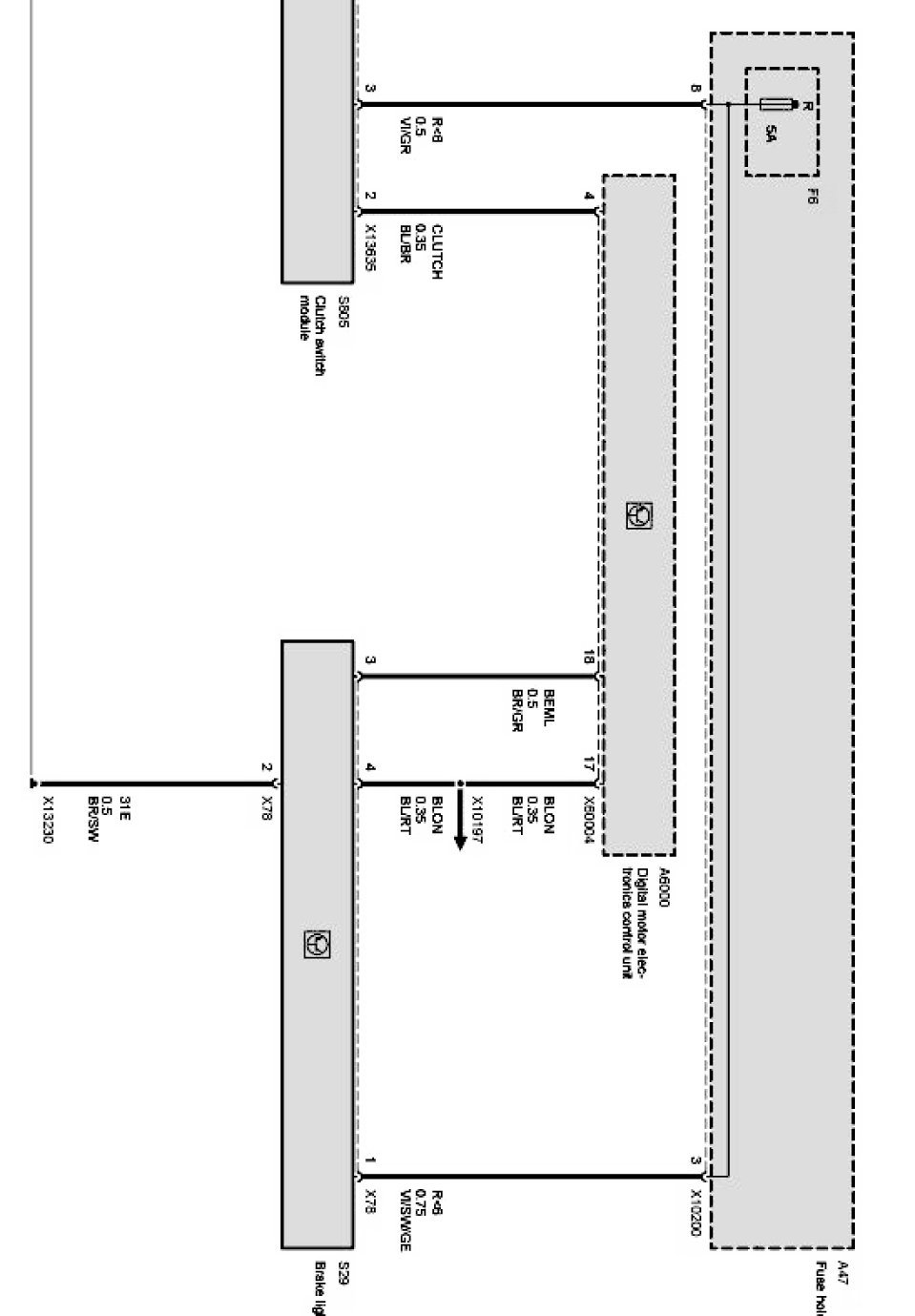

Clutch switch module Brake light switch Part 1:

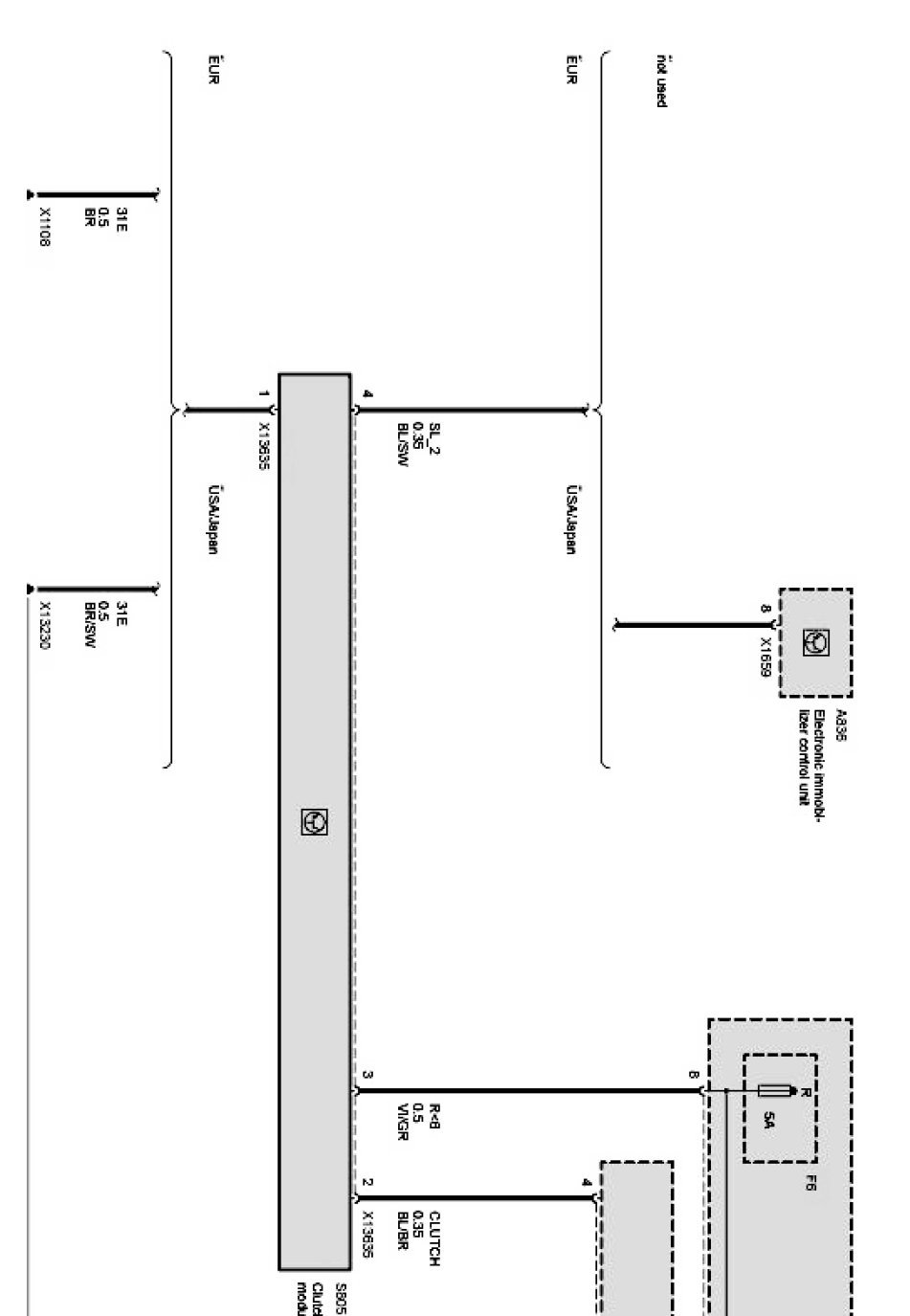

Clutch switch module Brake light switch Part 2:
