Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine and Transmission Control EMS2 (DME Digital Motor/Transmission Electronics 2) >> Steering-Wheel Actuation (Automatic Transmission) >> Steering-Wheel Switch (+)

Steering-Wheel Switch (+)

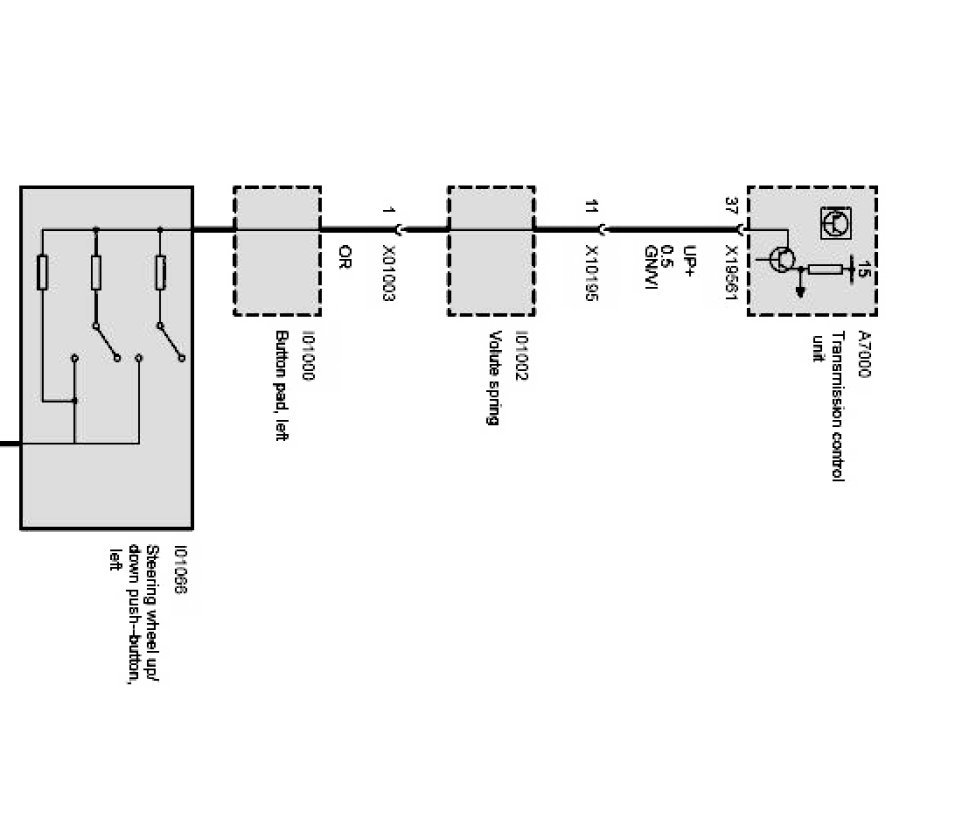

Multifunction steering wheel Upshift/downshift Part 1:

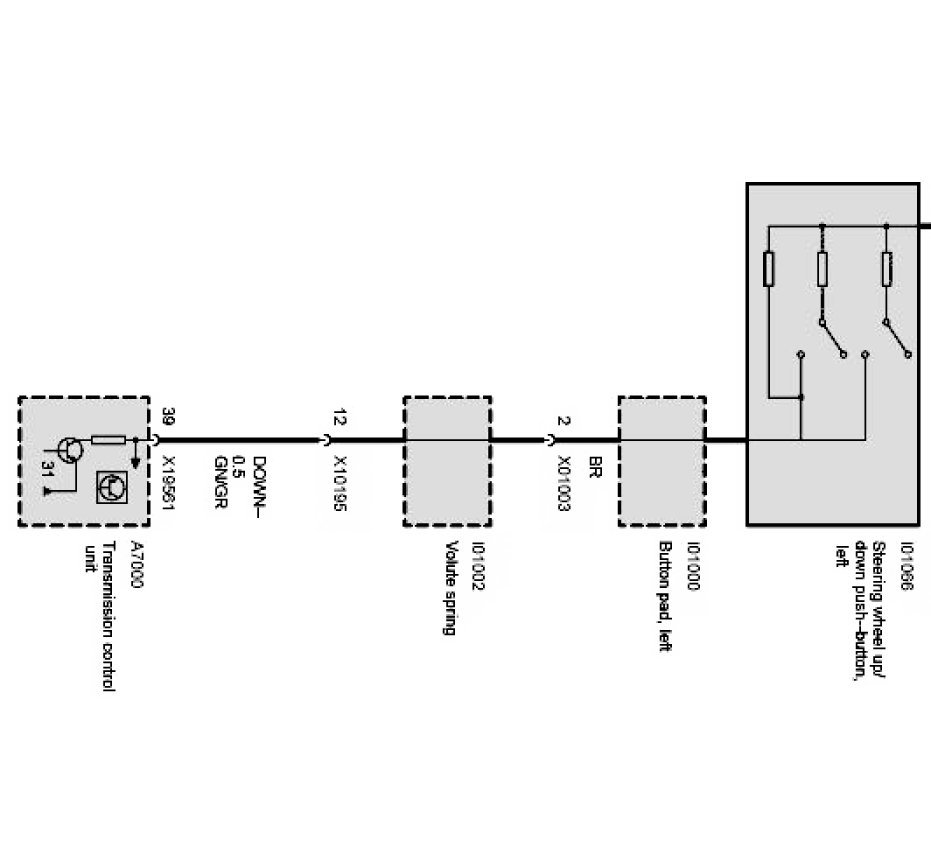

Multifunction steering wheel Upshift/downshift Part 2:
