64 11 872 Removing and Installing/Replacing Servodrive For Blending Flap



64 11 872 Removing And Installing/Replacing Servodrive For Blending Flap







Necessary preliminary tasks:
- Remove instrument panel lower section

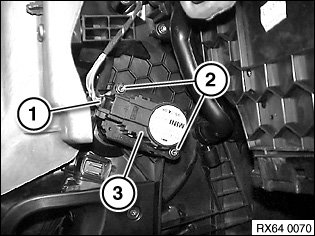

Disconnect plug connection (1).
Release screws (2) and remove servodrive (3).
