26 12 011 Replacing Grooved Ball Bearing In Propeller Shaft Center Bearing

26 12 011 Replacing Grooved Ball Bearing In Propeller Shaft Centre Bearing






Special tools required:
- 00 7 500
- 23 2 430






Necessary preliminary work:
- Replace propeller shaft centre bearing

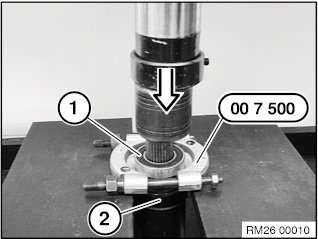

Install special tool 00 7 500 between deep groove ball bearing (1) and propeller shaft (2).

Using a hydraulic press, force deep groove ball bearing (1) off propeller shaft (2).

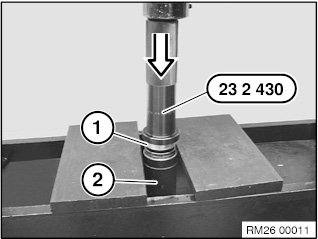

Use special tool 23 2 430 to press new deep groove ball bearing (1) on to propeller shaft (2).
