Drive/Propeller Shaft: Locations

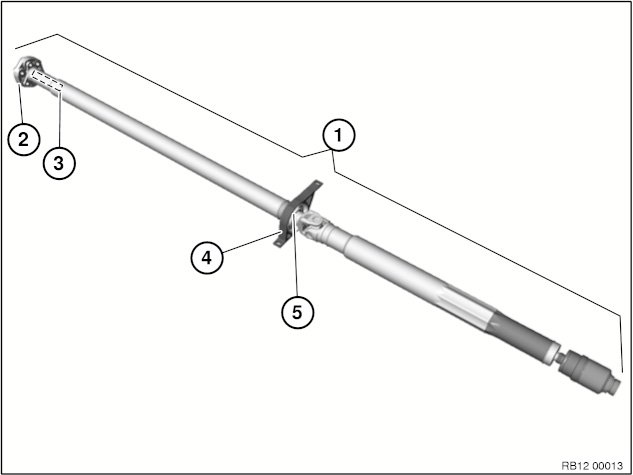

26 11 ... Overview (Inserted Propeller Shaft)






1 Complete propeller shaft
2 Flexible disc
3 Centring mount
4 Centre mount
5 Grooved ball bearing
