Diesel Data
: Automotive Repair
Home
>>
Mitsubishi
>>
1990
>>
Precis L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

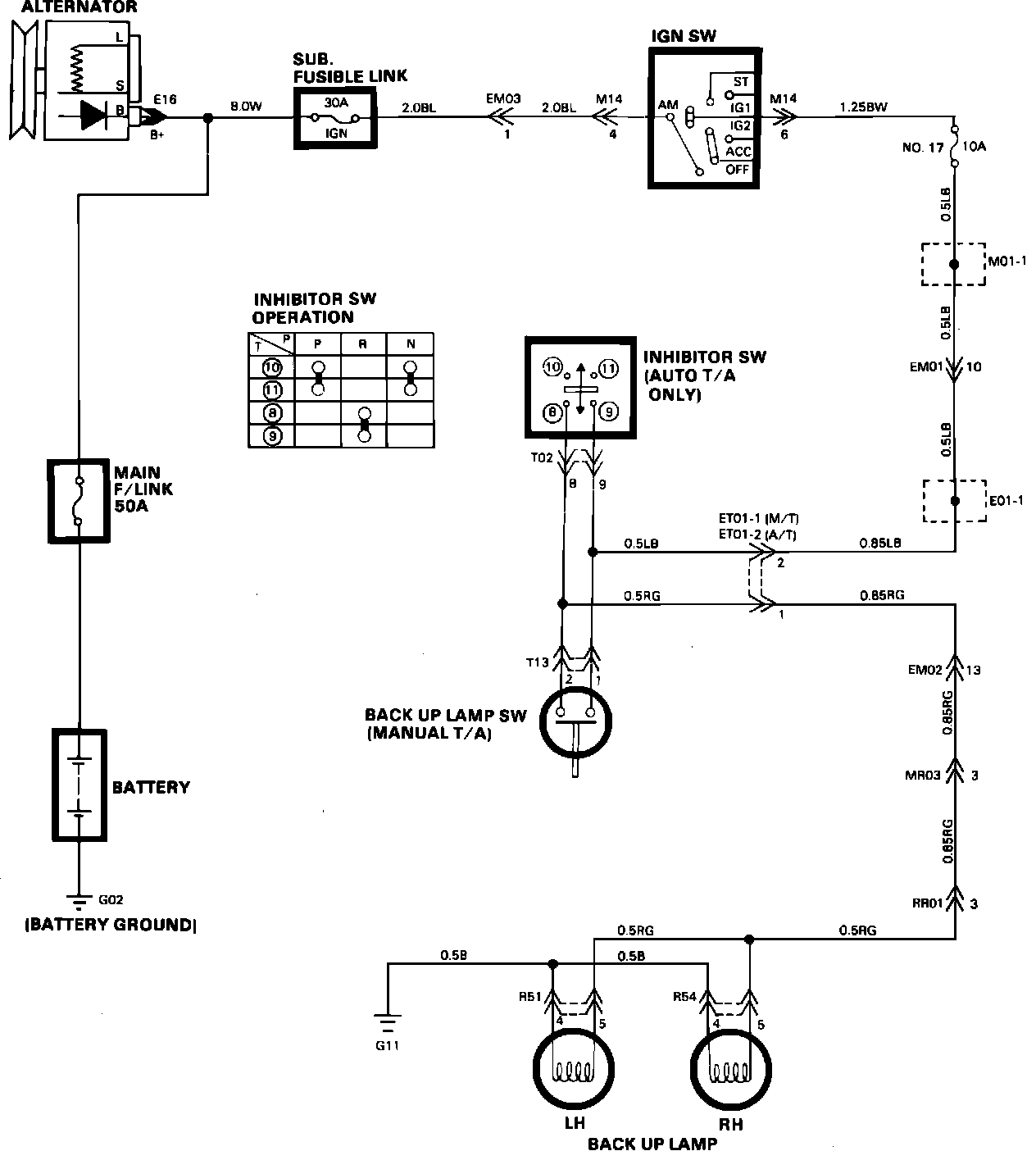

Back-Up Lamps:
