Home >> Mitsubishi >> 2004 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Testing and Inspection

Air Door Actuator / Motor: Testing and Inspection

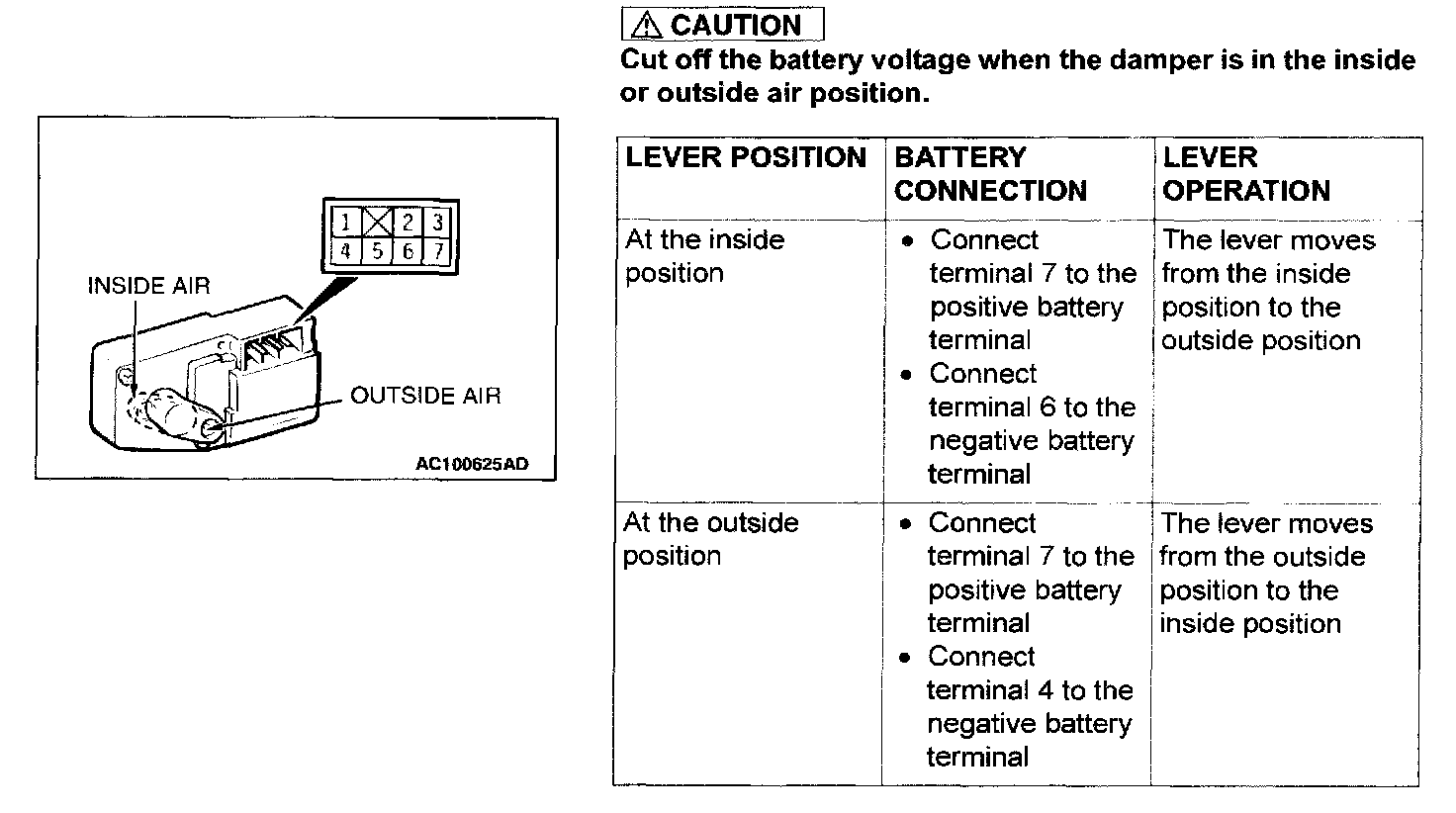

Outside/Inside Air Selection Damper Control Motor Check:
