Diesel Data
: Automotive Repair
Home
>>
Mitsubishi
>>
2004
>>
Lancer Evolution L4-2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
S023-S067 -- Dash Panel
S023-S067 -- Dash Panel

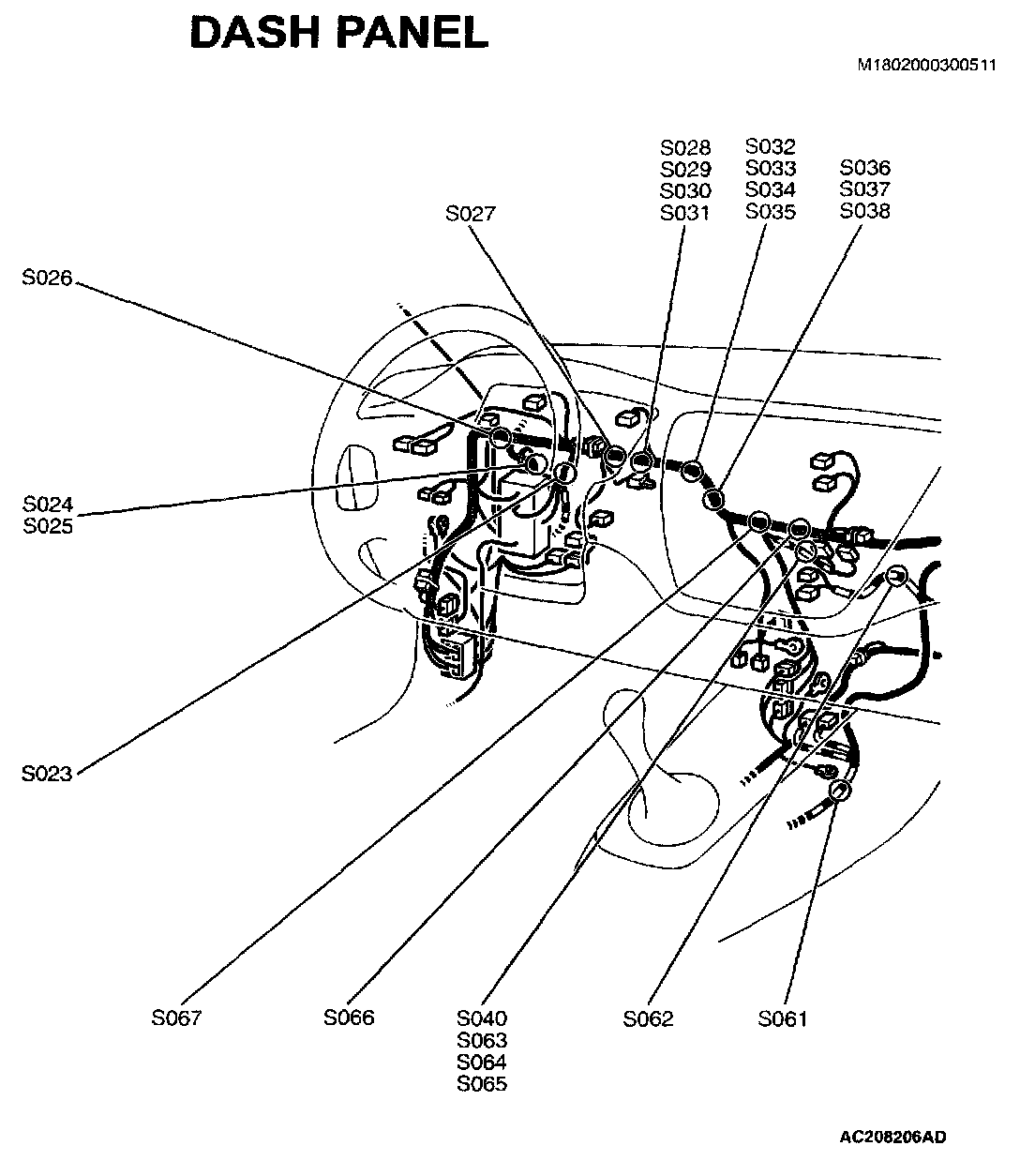

S023-S067 -- Dash Panel (Part 1):

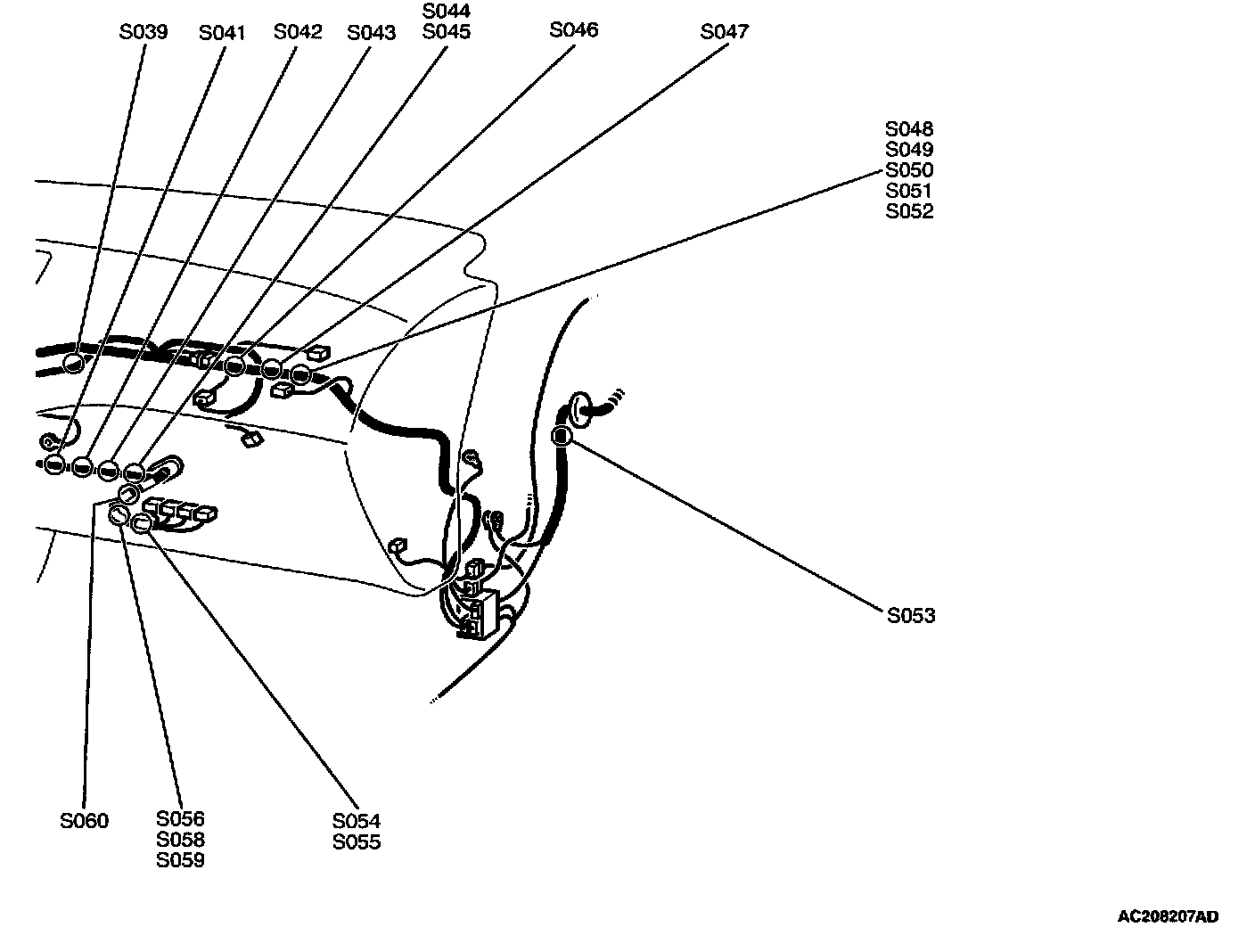

S023-S067 -- Dash Panel (Part 2):
