Air Mixing Damper Control Motor Check
INSPECTIONAIR MIXING DAMPER CONTROL MOTOR CHECK
CAUTION: Do not apply battery voltage when the damper is in the MAX COOL or MAX HOT position.

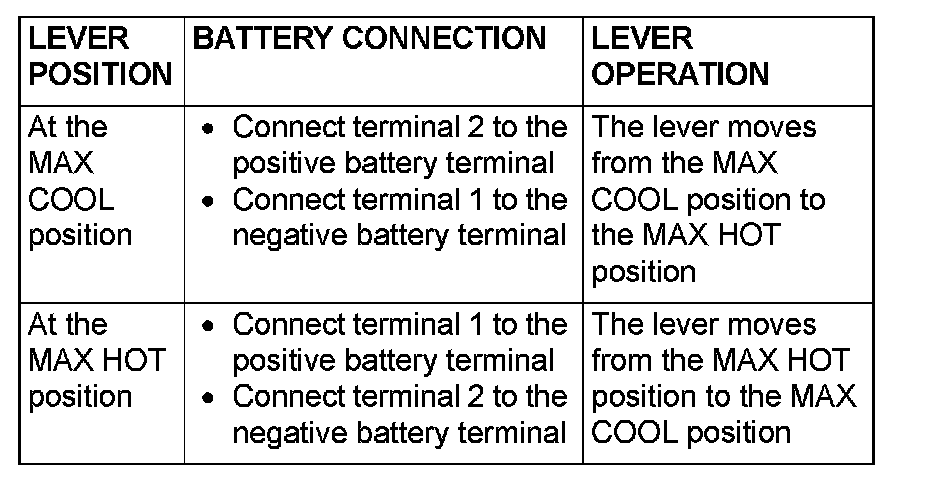

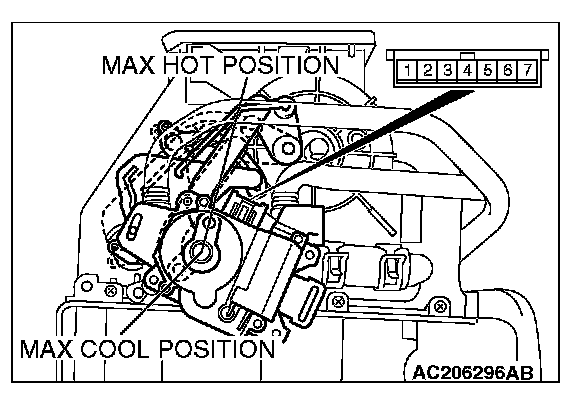

Check the air mix damper control motor by the given procedures.
AIR MIXING DAMPER CONTROL MOTOR CHECK
CAUTION: Do not apply battery voltage when the damper is in the MAX COOL or MAX HOT position.
Check the air mix damper control motor by the given procedures.
