Mode Selection Damper Control Motor Check
MODE SELECTION DAMPER CONTROL MOTOR CHECKCAUTION: Do not apply battery voltage when the damper is in the FACE or DEF position.

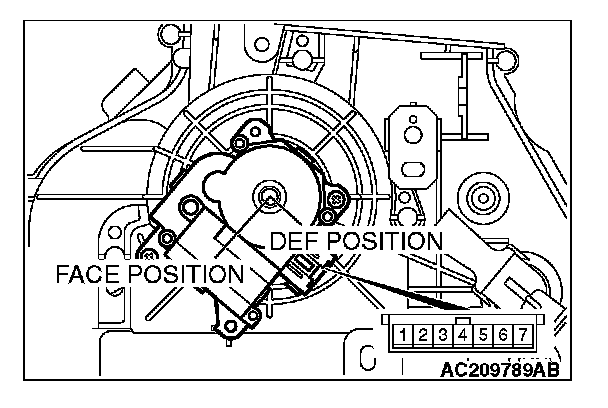

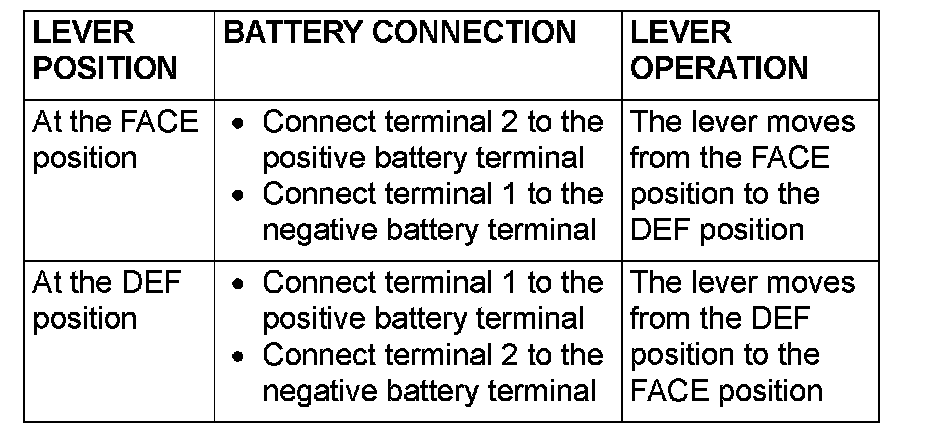

Check the mode selection damper control motor by the given procedures.
CAUTION: Do not apply battery voltage when the damper is in the FACE or DEF position.
Check the mode selection damper control motor by the given procedures.
