Air Door Actuator / Motor: Testing and Inspection

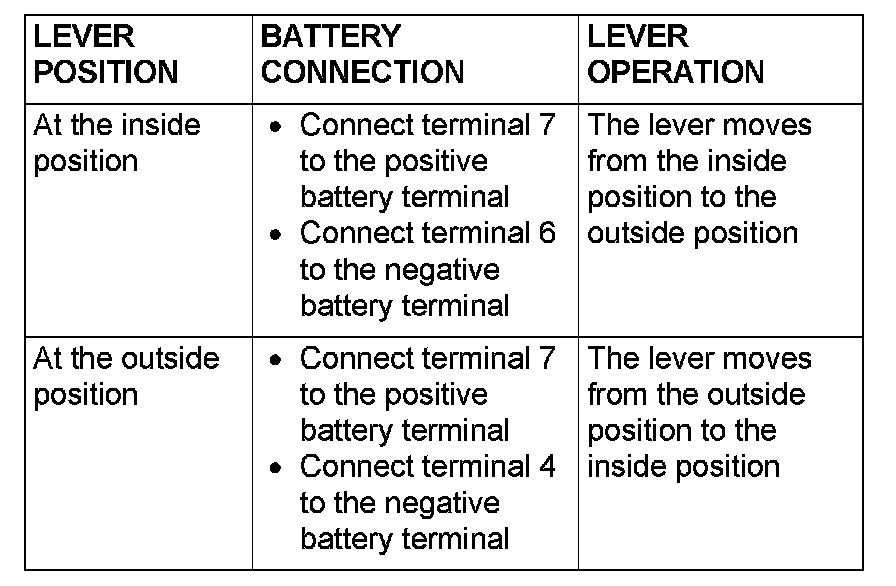

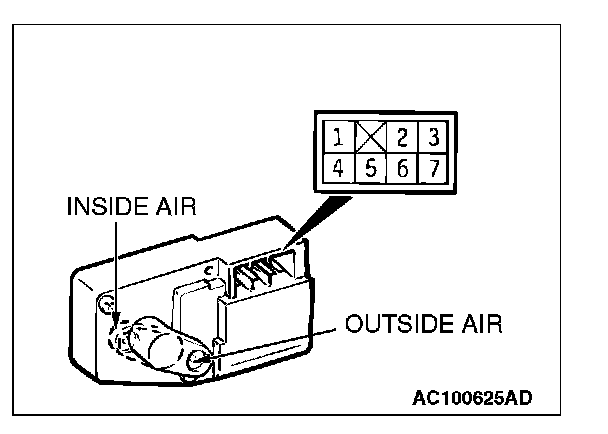

OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR CHECK

CAUTION: Cut off the battery voltage when the damper is in the inside or outside air position.
