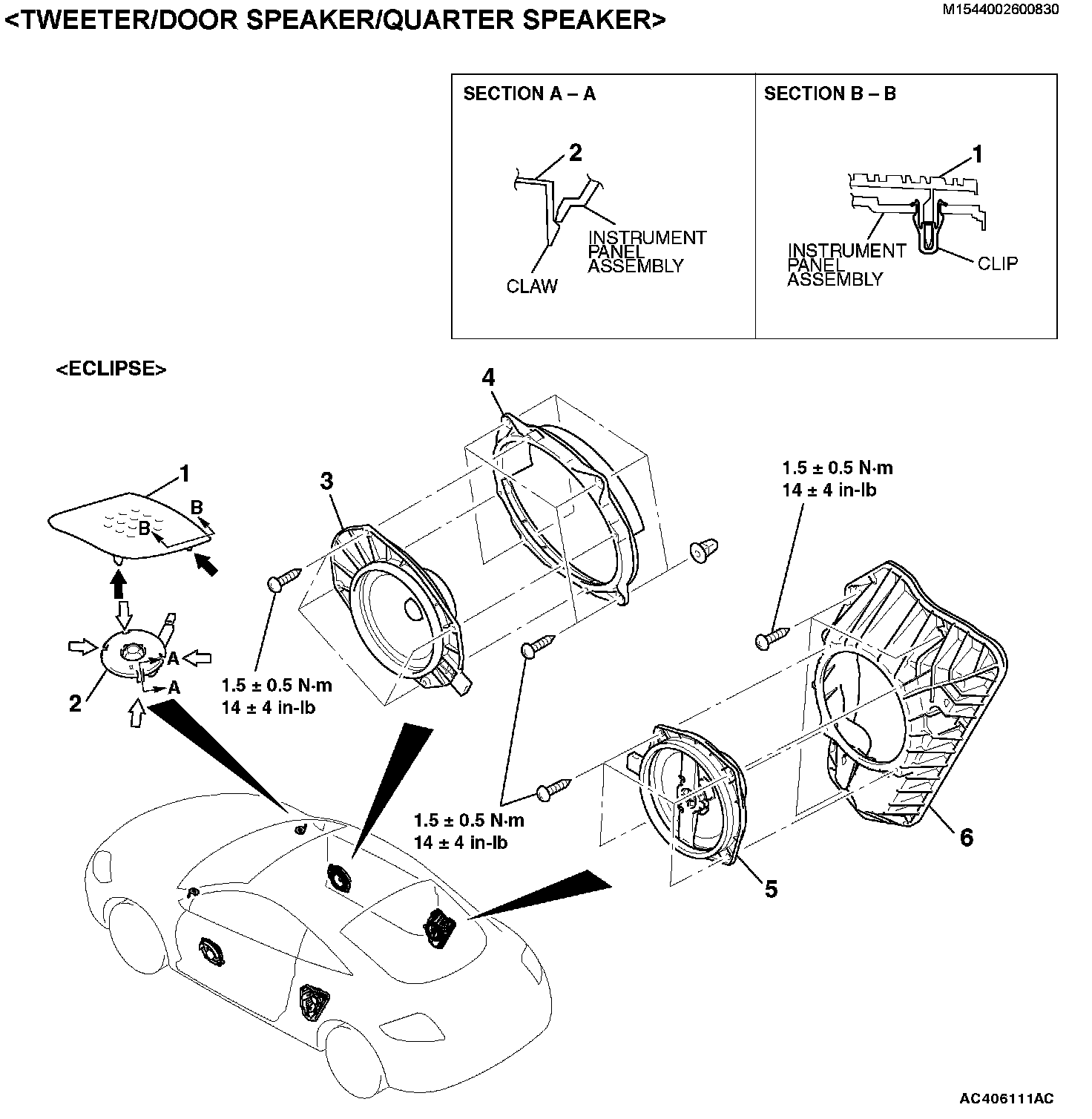

Tweeter/Door Speaker/Quarter Speaker
Tweeter/Door Speaker/Quarter Speaker

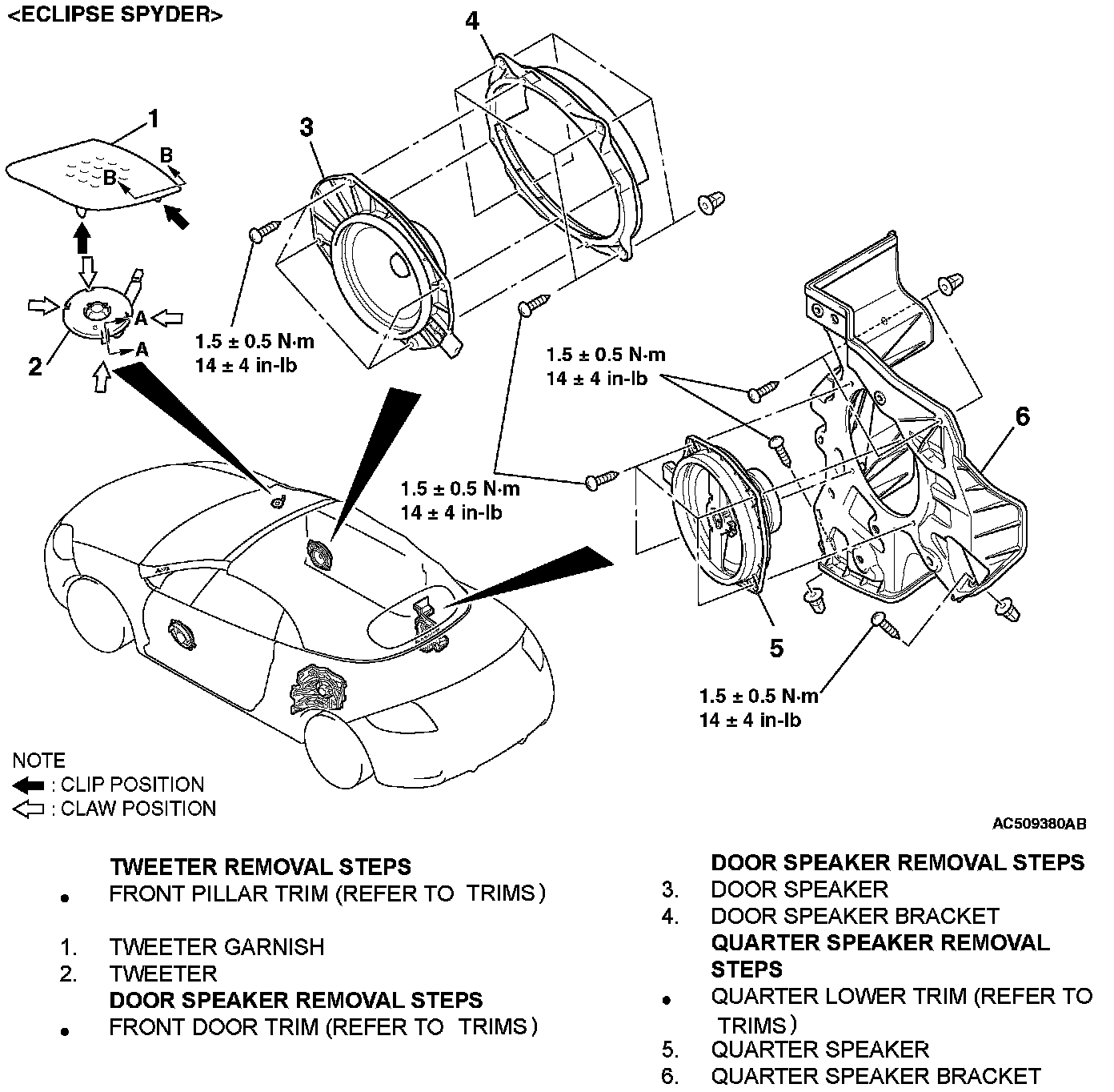

Removal Steps:
Removal Steps 1-6:
