Brake Pedal Assy: Service and Repair

BRAKE PEDAL

REMOVAL AND INSTALLATION

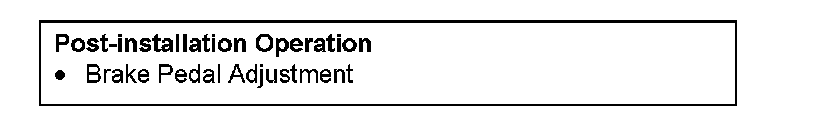

Post-installation Operation:

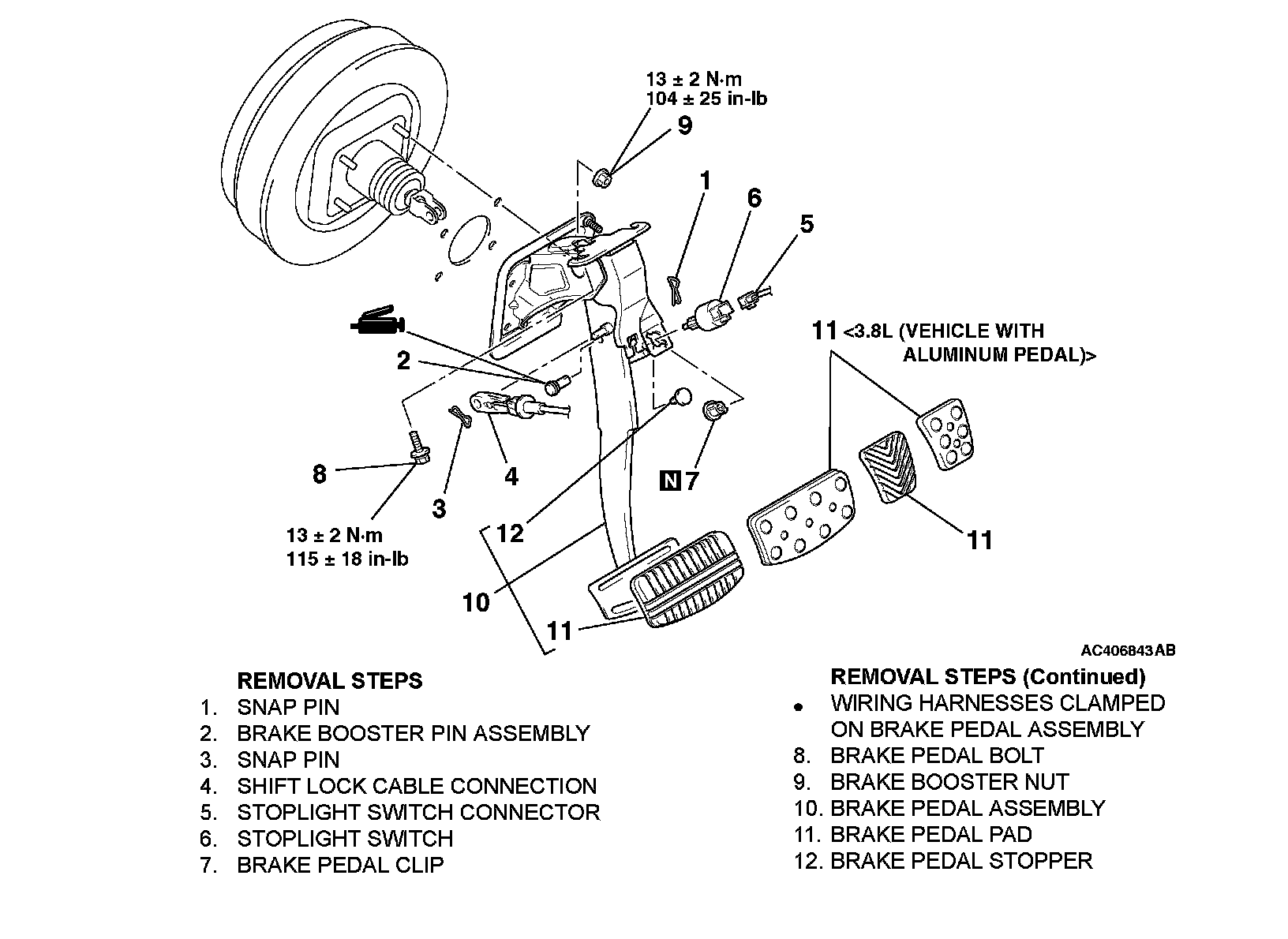

Removal Steps 1-12:

INSPECTION

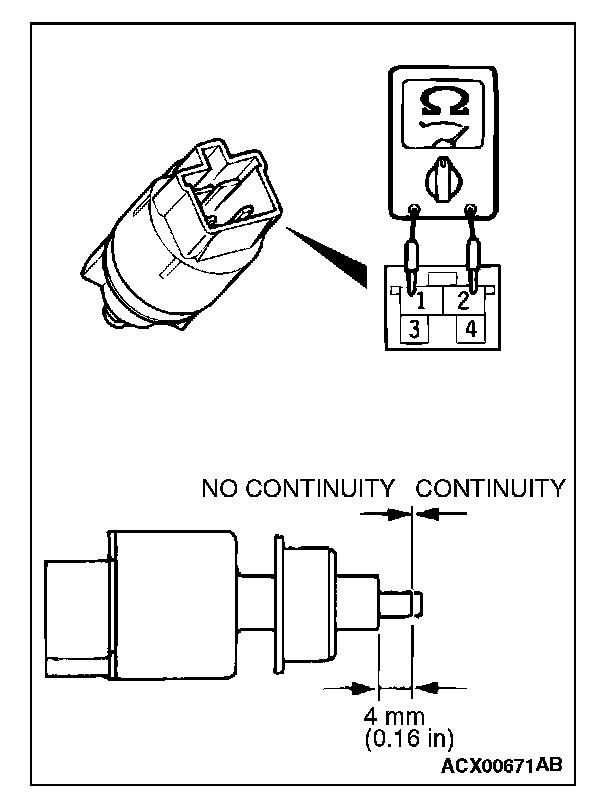

STOPLIGHT SWITCH CHECK

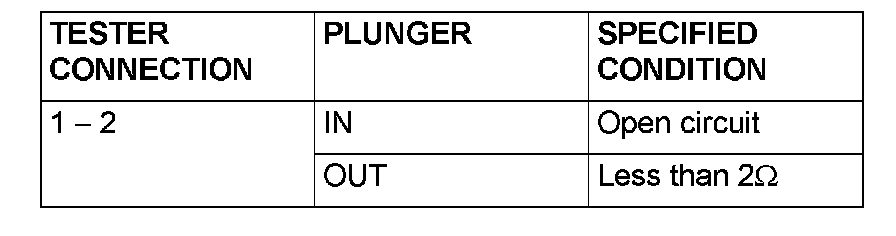

1. Connect an ohmmeter between the stoplight switch connector terminals.
2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.
