Air Door Actuator / Motor: Service and Repair
MOTORS AND TRANSISTOR

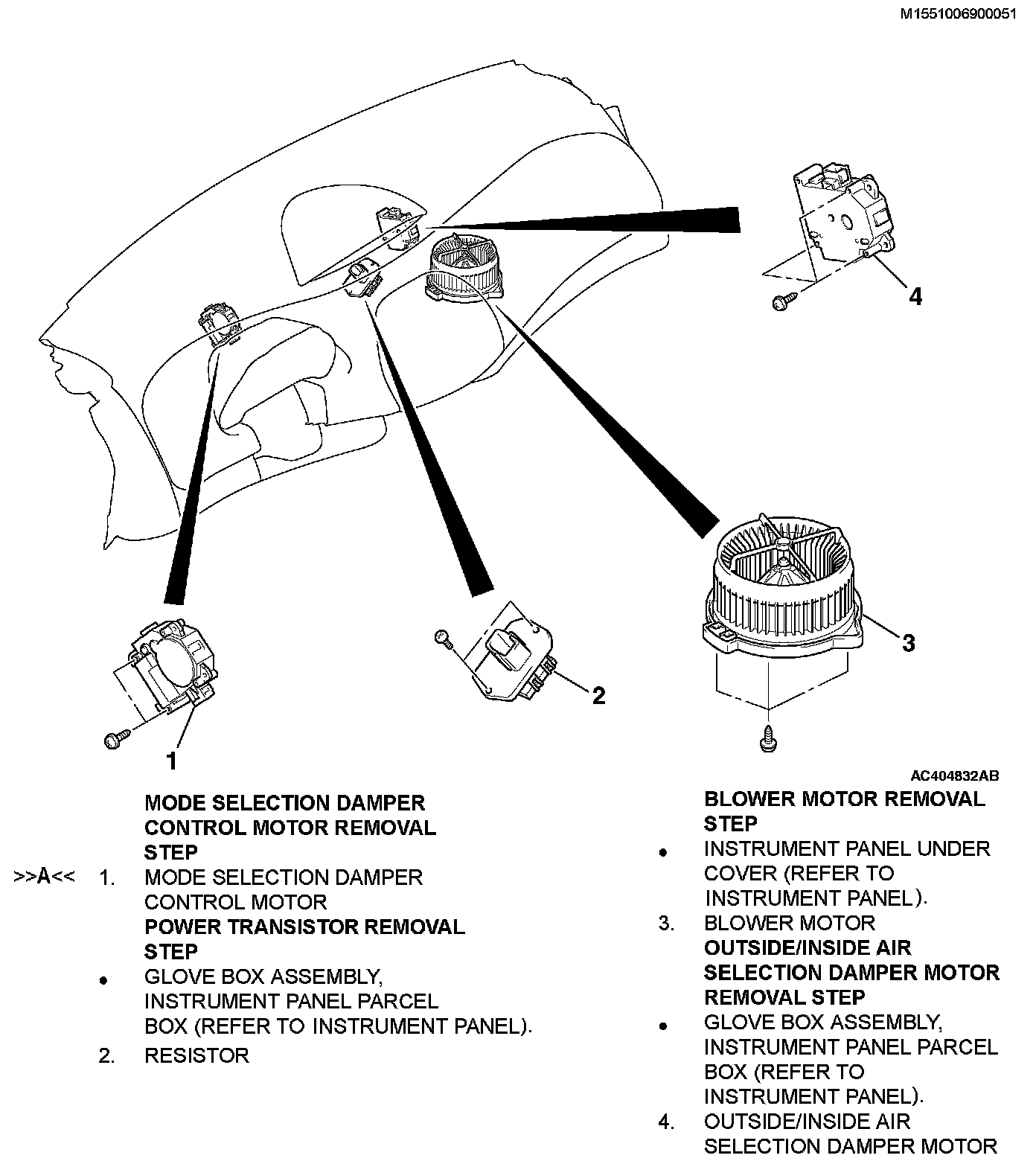

Removal Steps 1 - 4:
REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINT

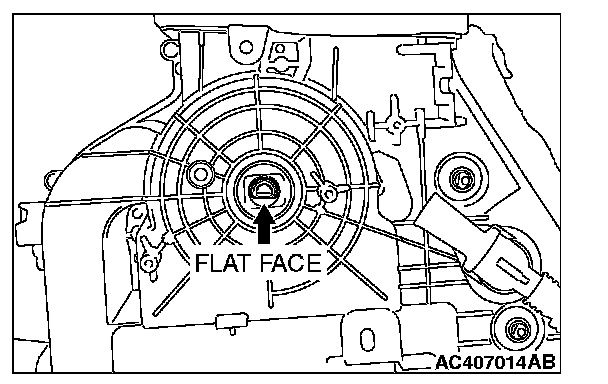

>>A<< MODE SELECTION DAMPER CONTROL MOTOR INSTALLATION
Place the flat face as shown downward and install.
