Drive Shaft Oil Seal

DRIVE SHAFT OIL SEAL

DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-4:

Required Special Tool:
* MD998800: Oil Seal Installer

ASSEMBLY SERVICE POINTS

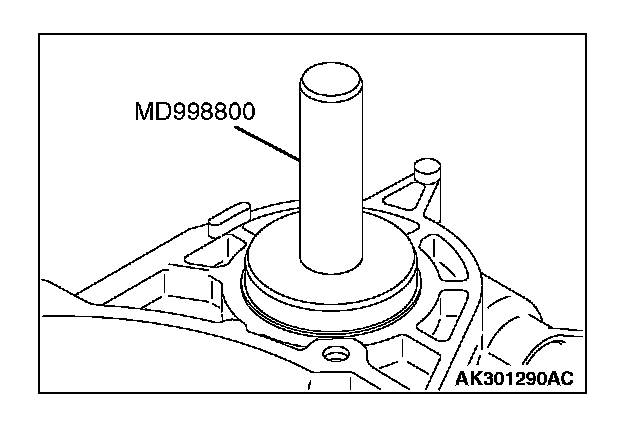

]]A[[ OIL SEAL INSTALLATION





Use special tool MD998800 to tap the oil seal into the torque converter housing.

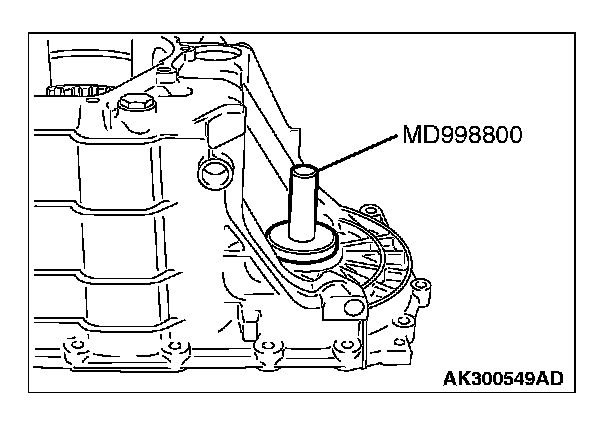

]]B[[ OIL SEAL INSTALLATION
Use special tool MD998800 to tap the oil seal in the transaxle case.
