Overhaul

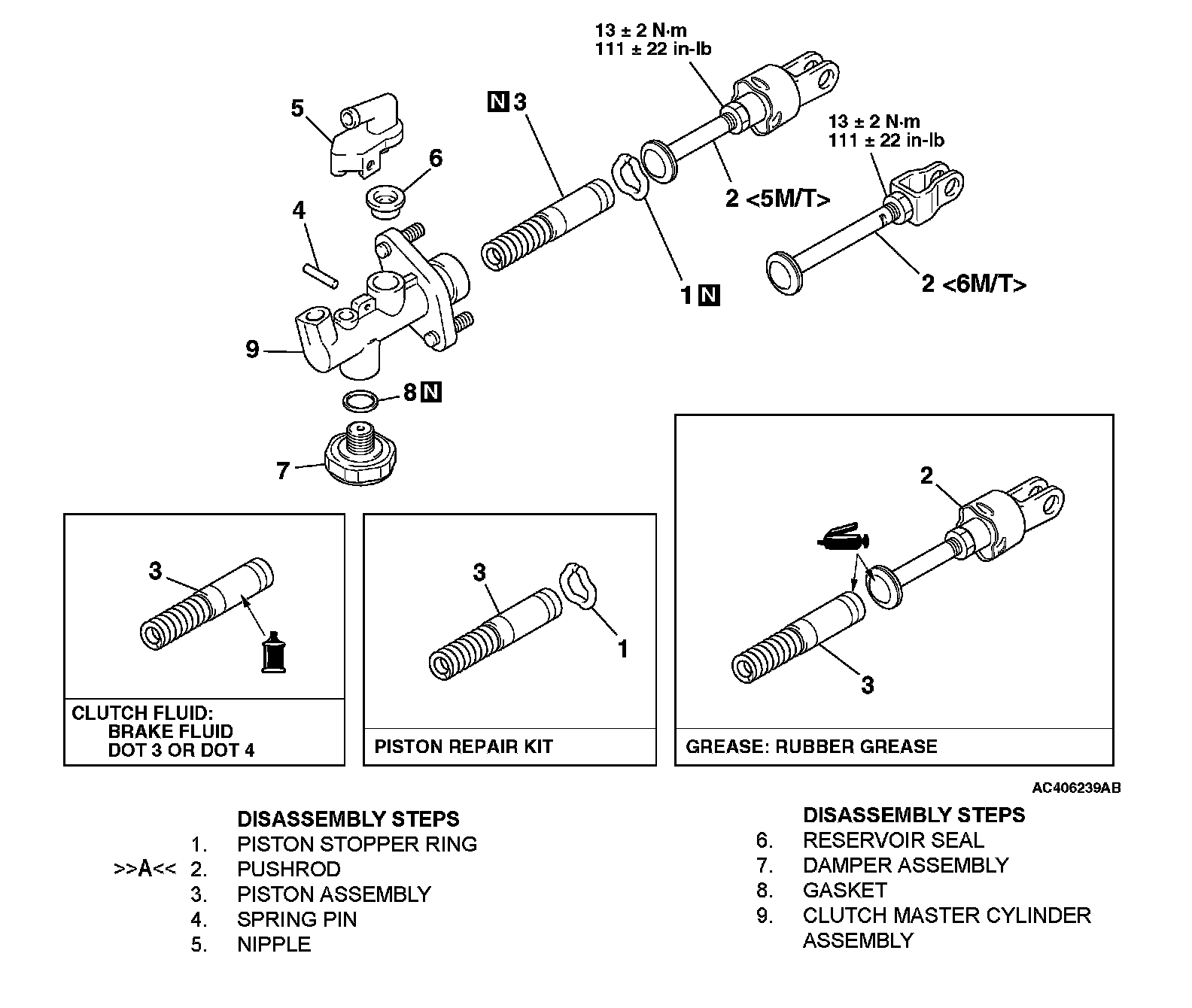

CLUTCH MASTER CYLINDER DISASSEMBLY AND ASSEMBLY

CAUTION
Do not disassemble the piston assembly.

Disassembly Steps 1-9:

ASSEMBLY SERVICE POINT

]]A[[ DAMPER AND PUSH ROD INSTALLATION

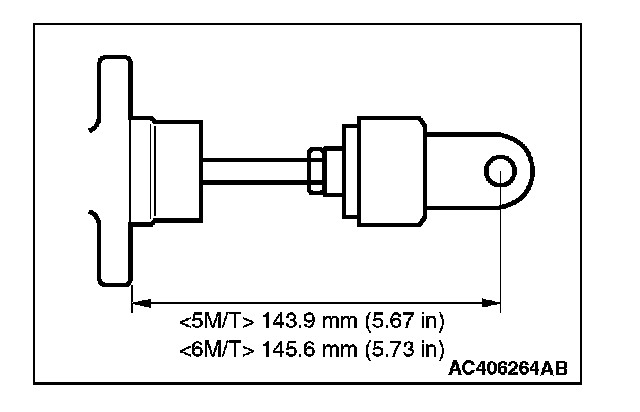

Set the length of the push rod assembly to the dimension shown to make the adjustment of the clutch pedal easier.
