Overhaul

DISASSEMBLY AND ASSEMBLY

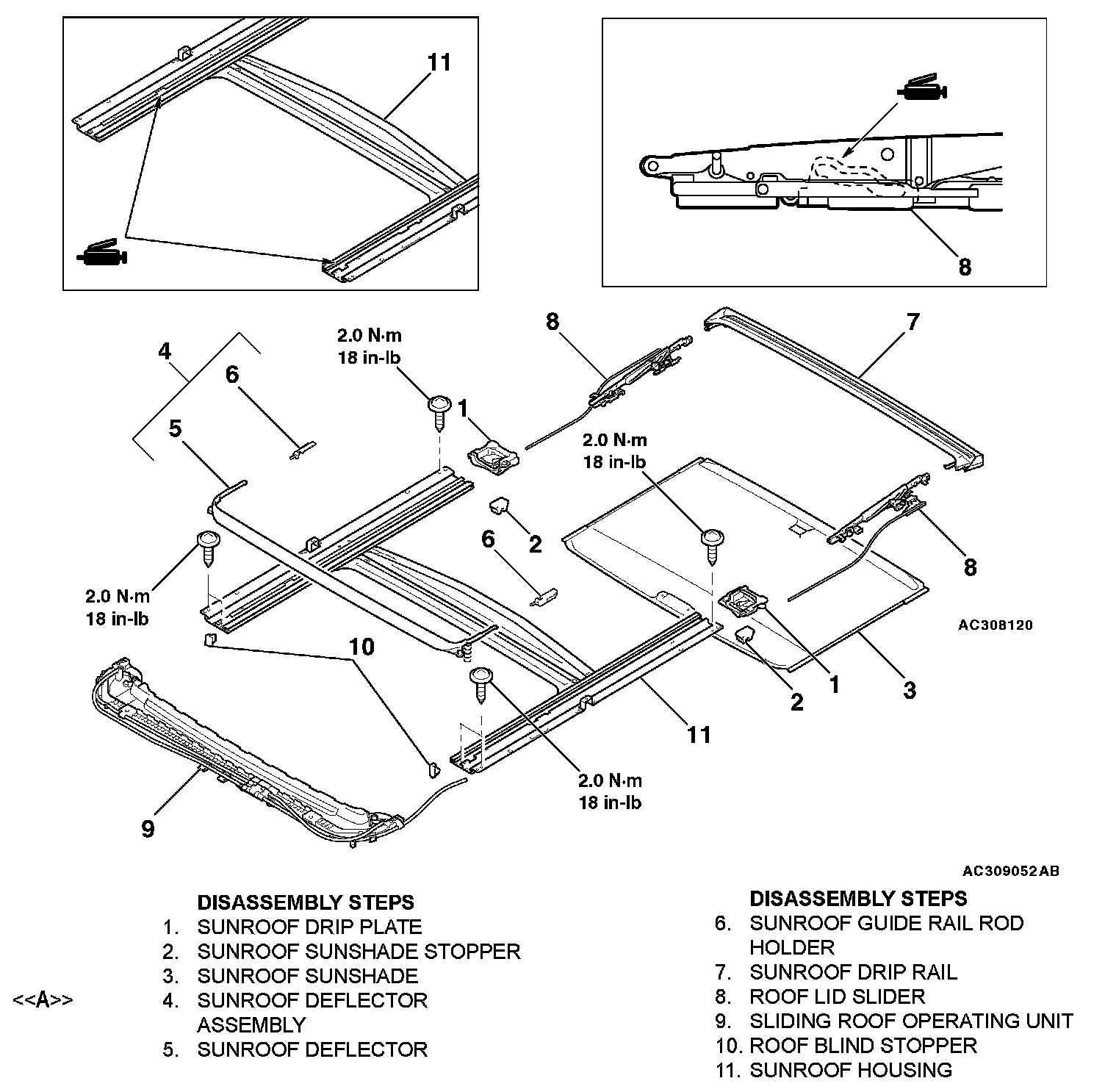

Disassembly Steps 1-11:

DISASSEMBLY SERVICE POINT

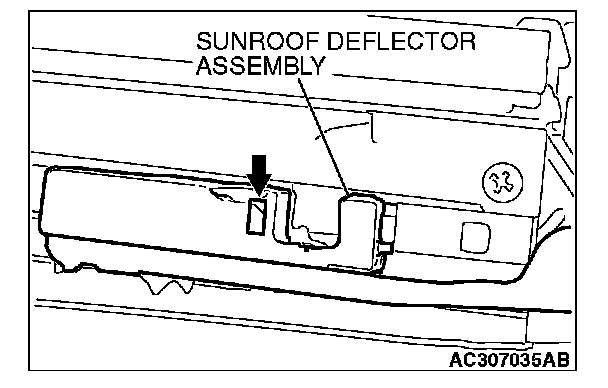

]]A[[SUNROOF DEFLECTOR ASSEMBLY REMOVAL






Slide the sunroof deflector assembly to the front of the vehicle by holding the arrow area shown in the illustration with a flat-tipped screwdriver and remove it.
