Diesel Data
: Automotive Repair
Home
>>
Mitsubishi
>>
2008
>>
Lancer L4-2.0L (4B11)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt
>>
Service and Repair
>>
Rear Seat Belt
Rear Seat Belt
REAR
SEAT BELT

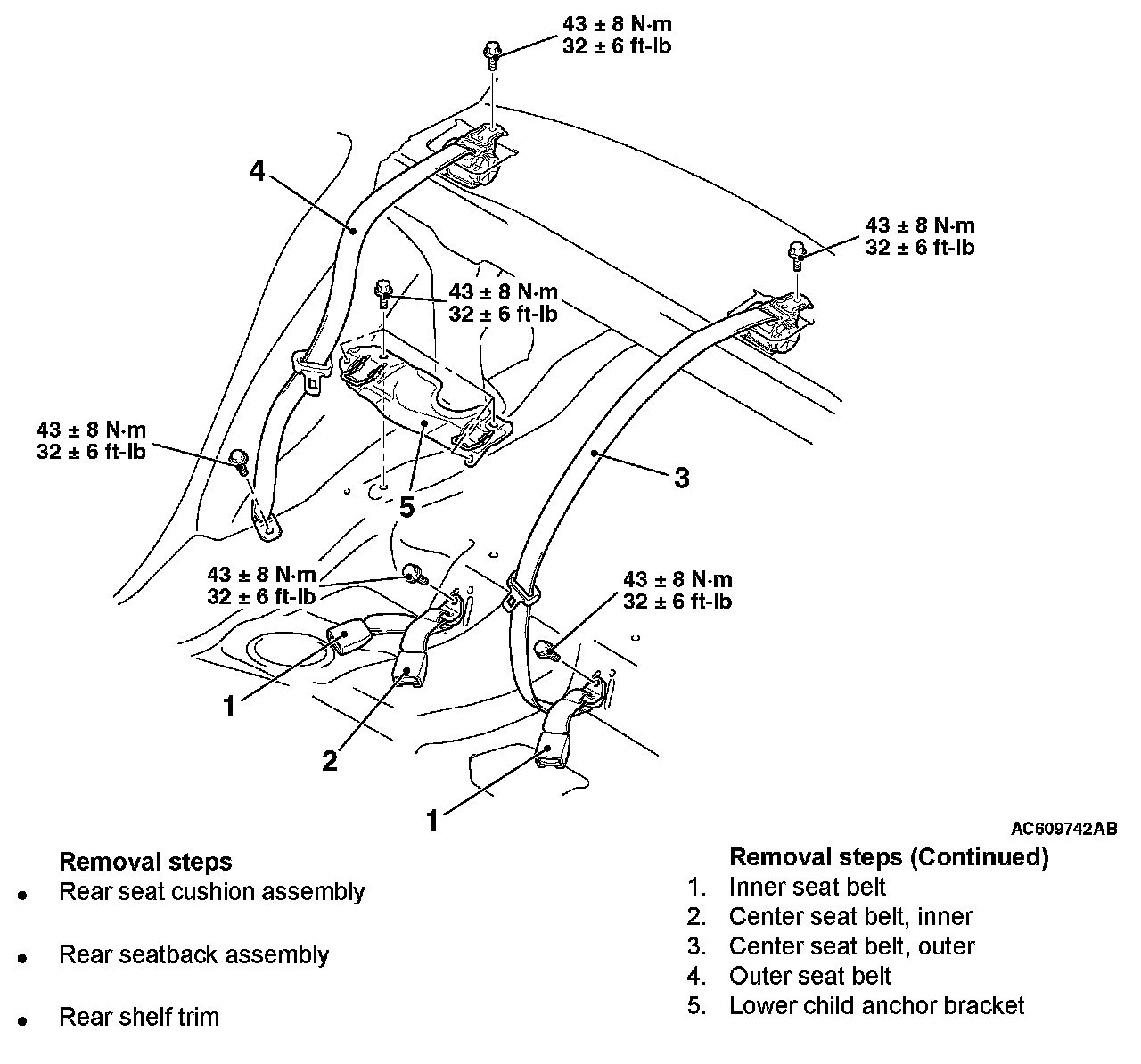

REMOVAL AND INSTALLATION
Removal Steps 1 - 5:
