Antenna, Radio: Service and Repair
ANTENNA
REMOVAL AND INSTALLATION

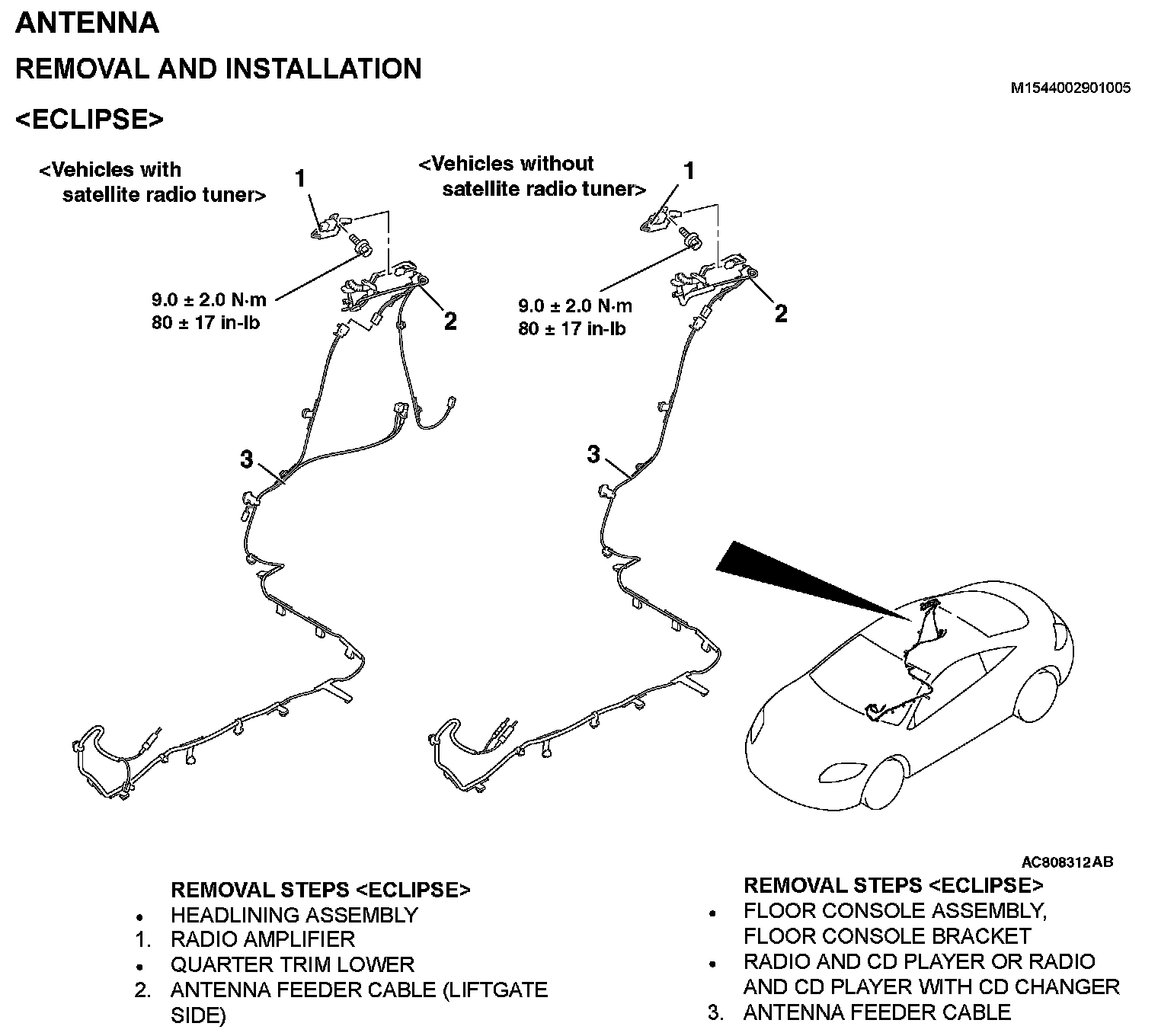

Removal Steps 1-3:

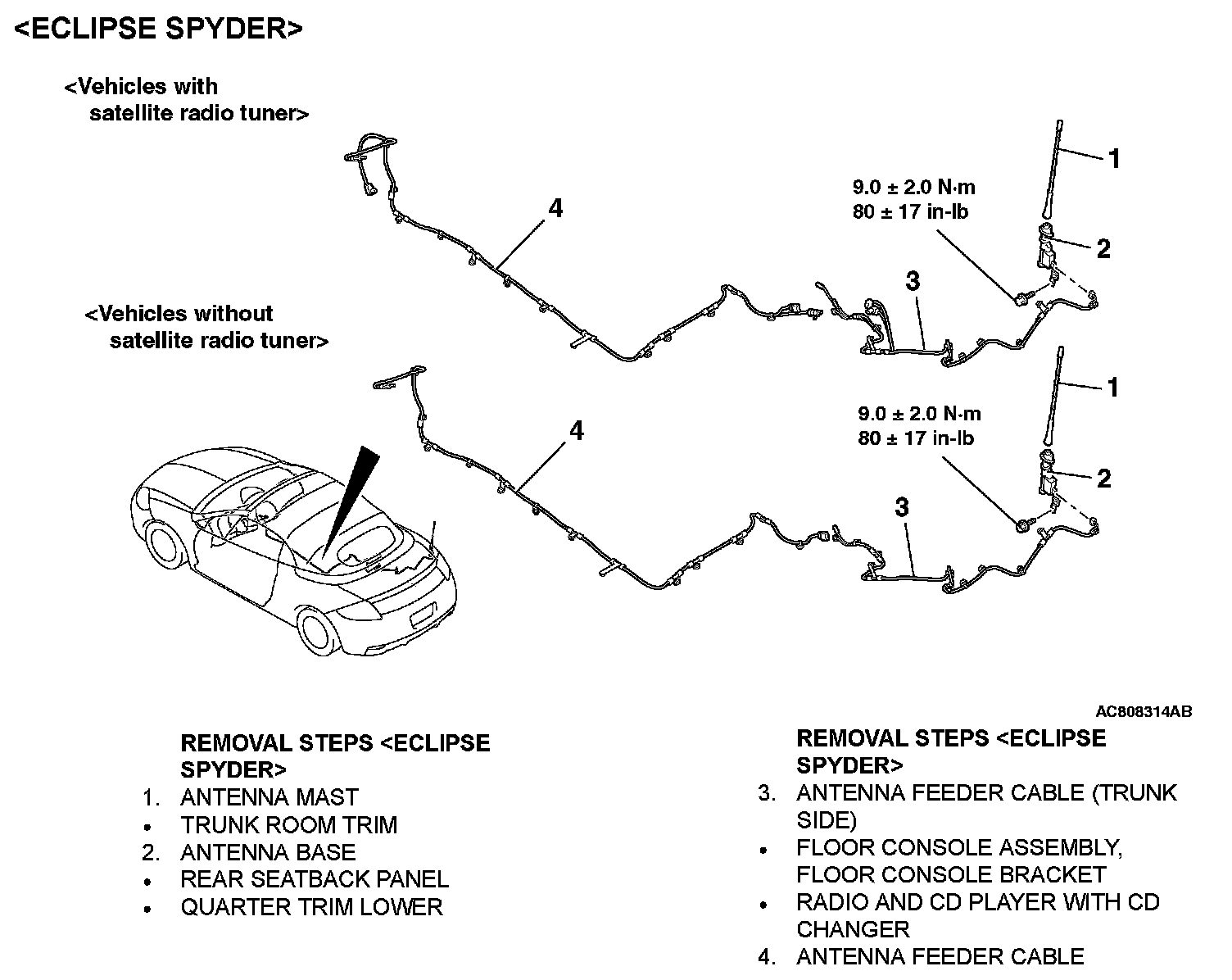

Removal Steps 1-4:
