Diesel Data
: Automotive Repair
Home
>>
Mitsubishi
>>
2010
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Service and Repair
Speaker: Service and Repair
SPEAKER
REMOVAL AND INSTALLATION

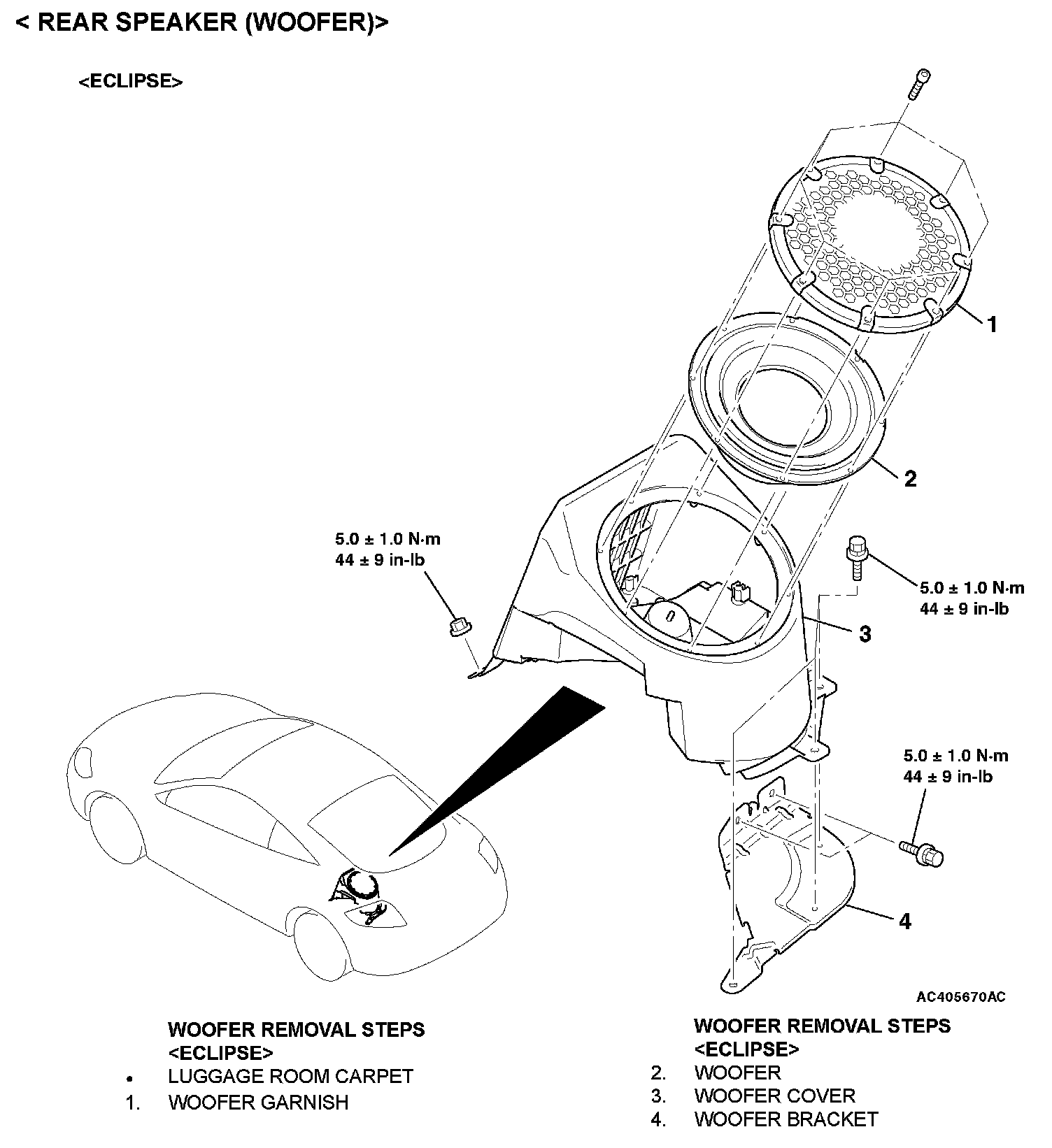

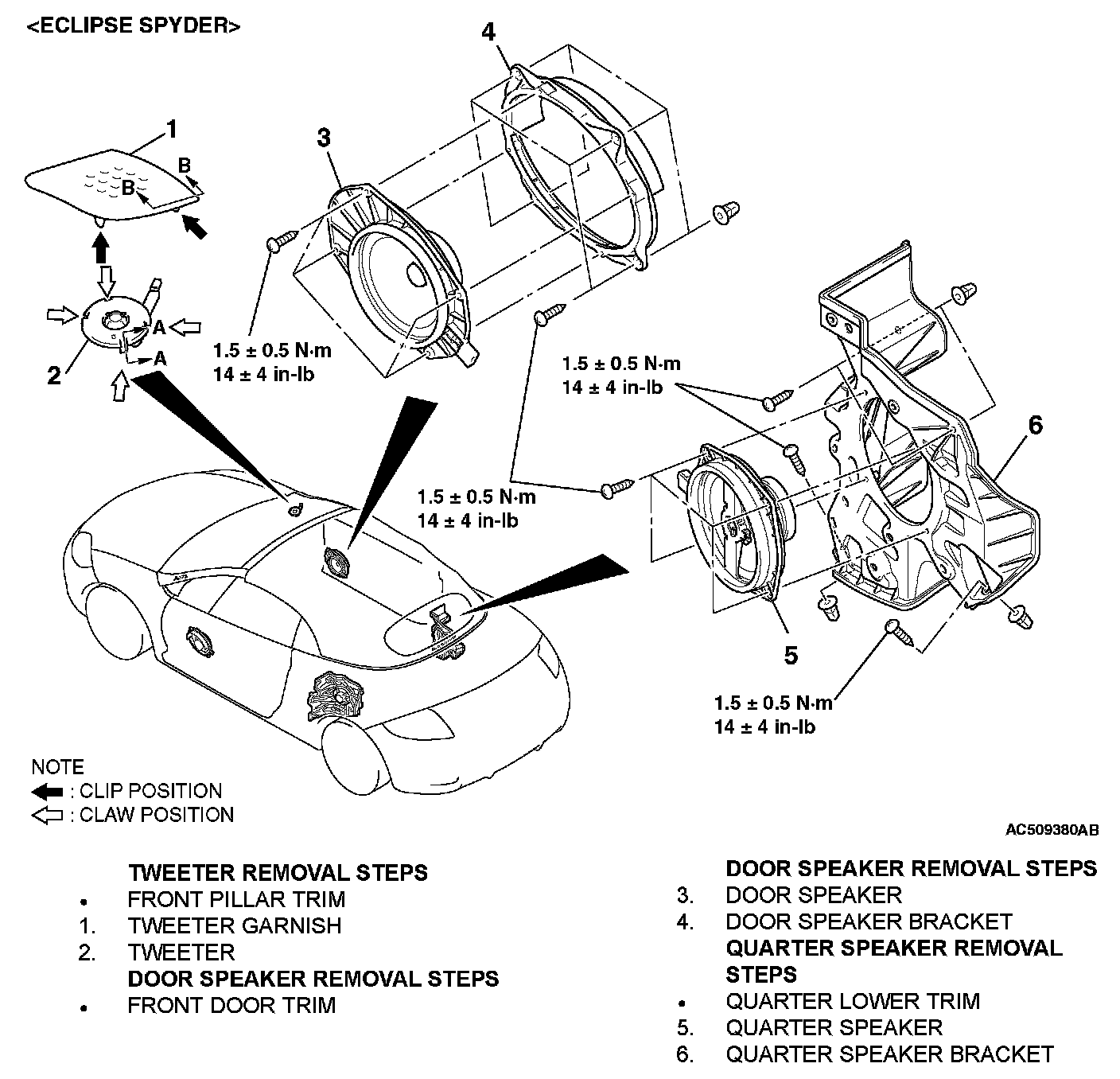

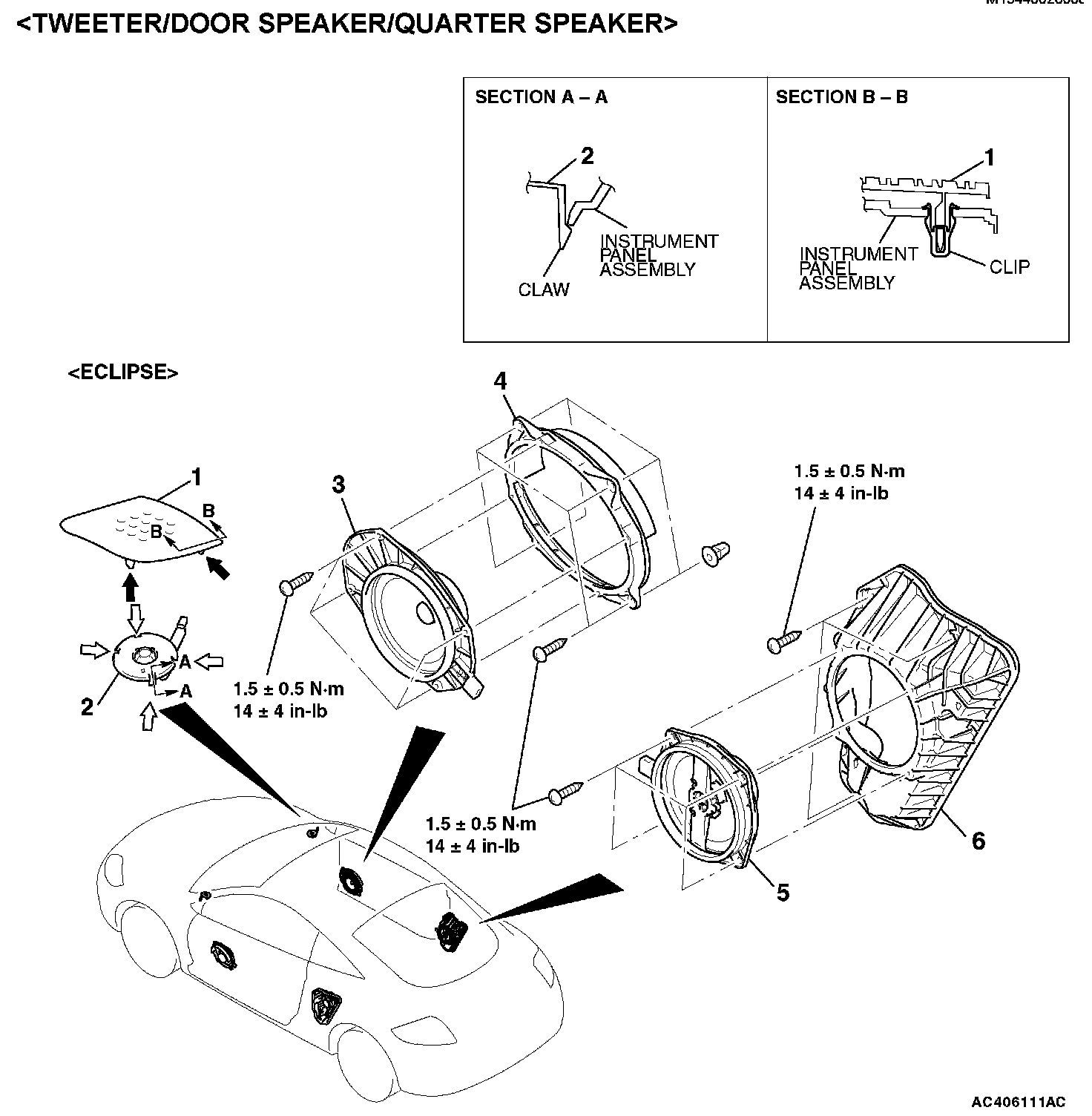

Removal Steps 1-6 (Part 1):
Removal Steps 1-6 (Part 2):

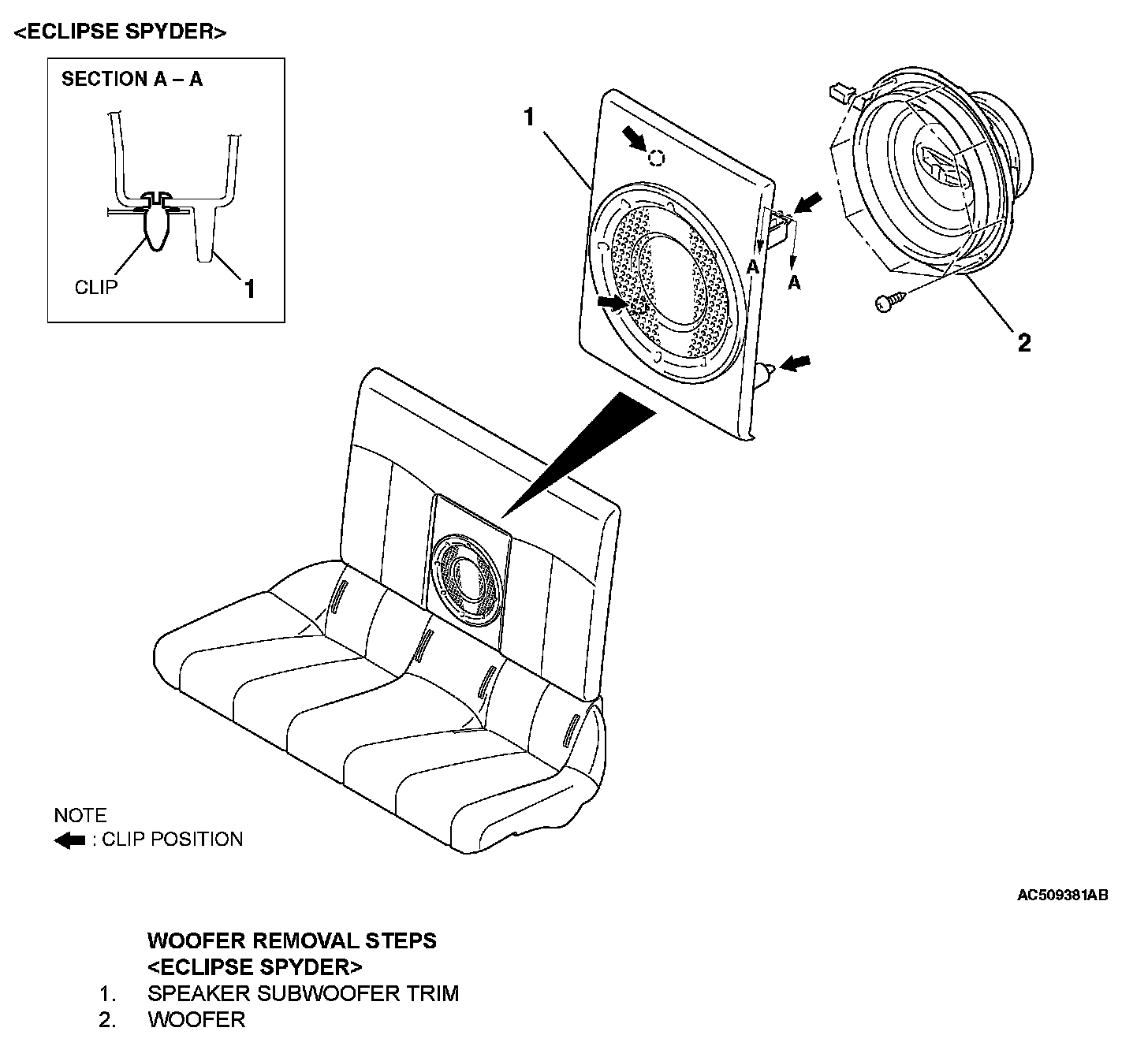

Removal Steps 1-4:
Removal Steps 1-2:
