Overhaul

CLUTCH MASTER CYLINDER

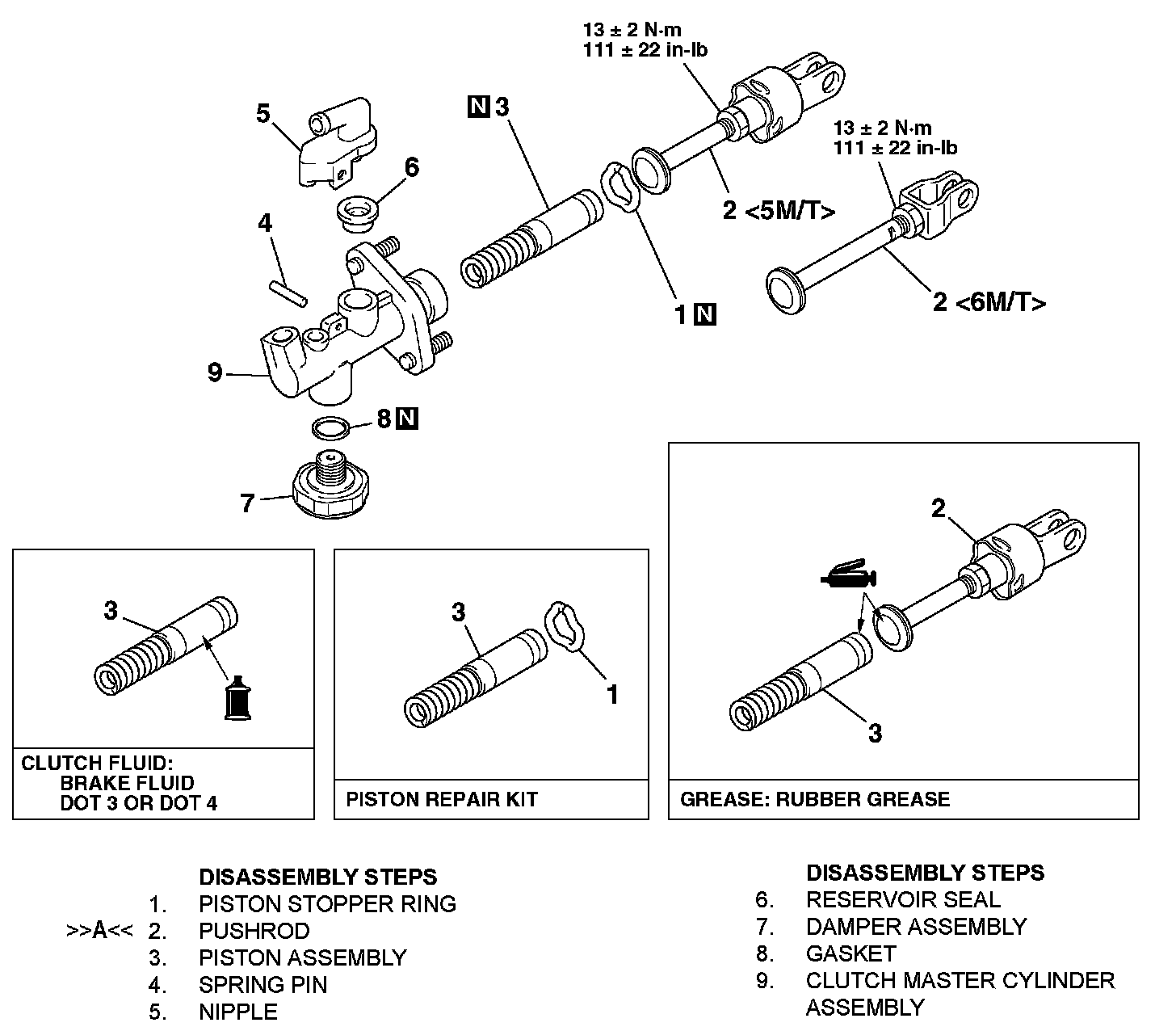

DISASSEMBLY AND ASSEMBLY

CAUTION: Do not disassemble the piston assembly.

Disassembly Steps 1-9:

ASSEMBLY SERVICE POINT

[A] DAMPER AND PUSHROD INSTALLATION

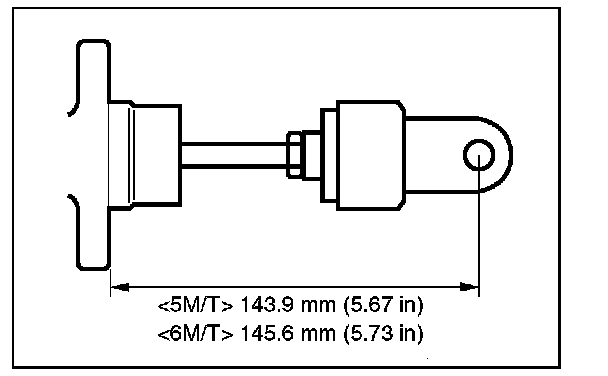

Set the length of the push rod assembly to the dimension shown to make the adjustment of the clutch pedal easier.
